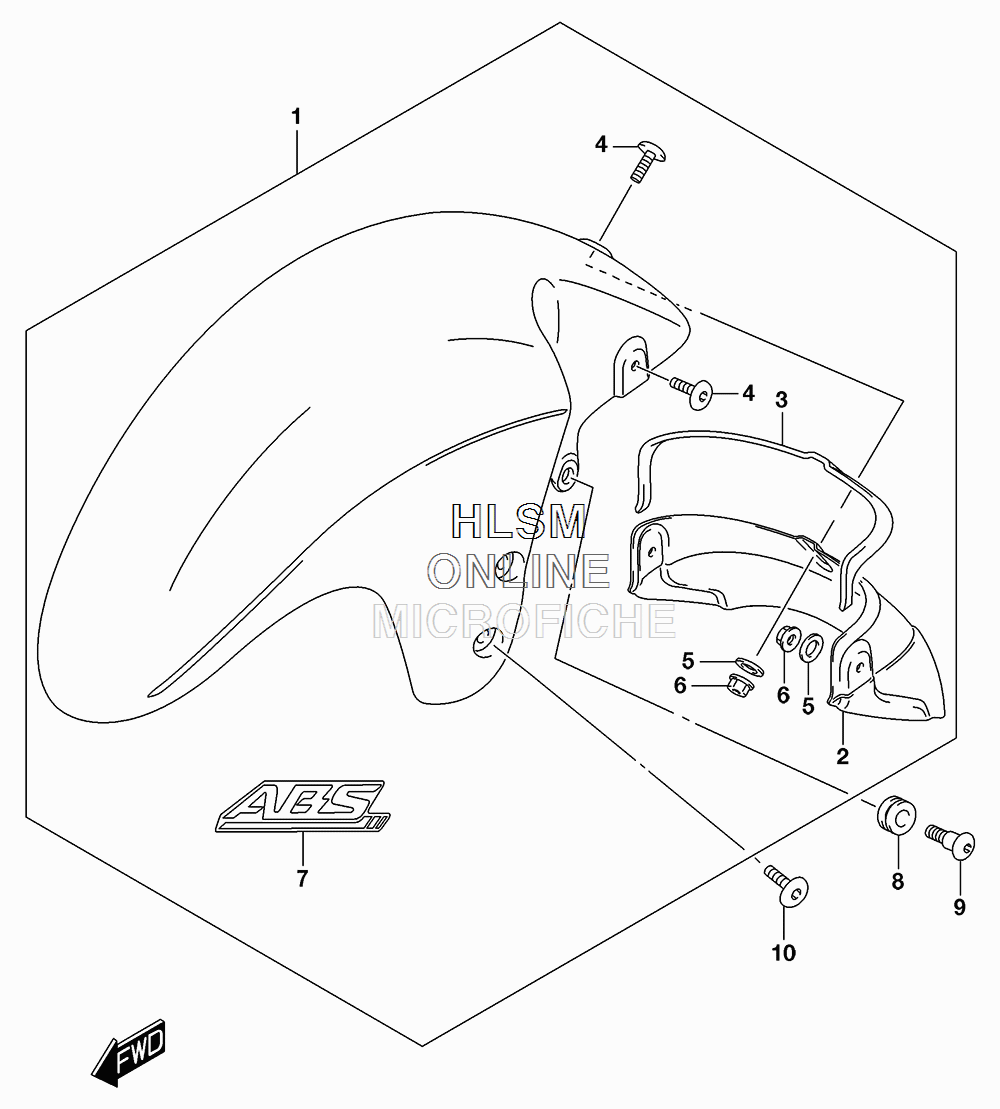

FENDER - FRONT (CAN) для Suzuki GSX1300RA L6 HAYABUSA - 2016 года выпуска
-
№АртикулНазвание
-
153100-15H10-YVB FENDER, FRONT (BLACK) (FOR AA3)FENDER, FRONT (BLACK) (FOR AA3)
-
153100-15H10-RB5 FENDER, FRONT (WHITE) (FOR ARA)FENDER, FRONT (WHITE) (FOR ARA)
-
153100-15H10-YYG FENDER, FRONT (RED) (FOR A9Z)FENDER, FRONT (RED) (FOR A9Z)
-
253331-15H00 ...MUDGUARD, FRONT FENDER...MUDGUARD, FRONT FENDER
-
394424-05H00 ...CUSHION...CUSHION
-
409139-06129 ...SCREW (6X16)...SCREW (6X16)
-
509160-06129 ...WASHER (6.5X16X1)...WASHER (6.5X16X1)
-
608319-3106A ...NUT...NUT
-
768151-44G00-1ZY ...EMBLEM, ''ABS'' (GRAY)...EMBLEM, ''ABS'' (GRAY)
-
809320-09016 CUSHIONCUSHION
-
909139-06146 SCREW (6X16)SCREW (6X16)
-
1009139-06131 SCREW (6X16)SCREW (6X16)
