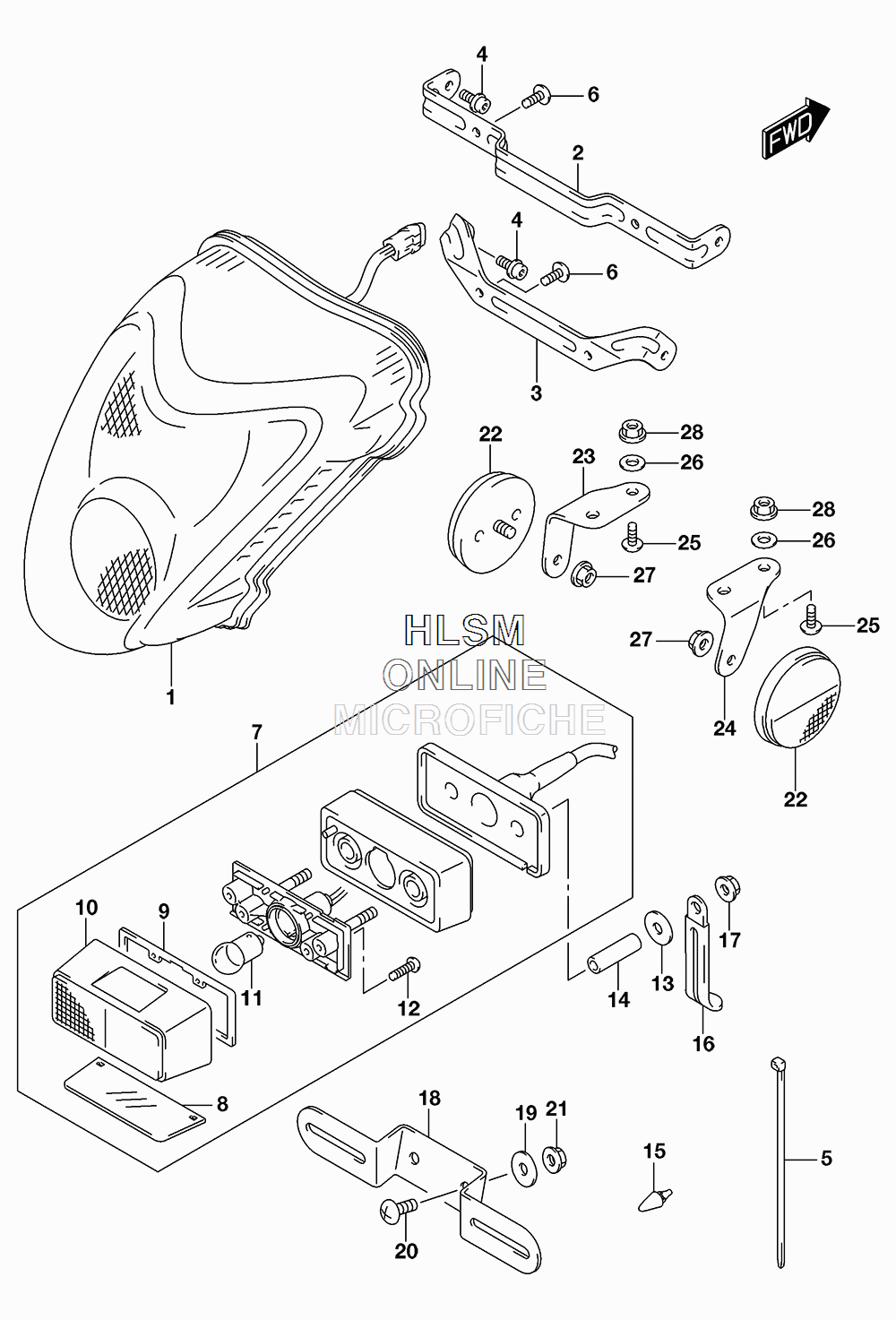

REAR COMBINATION LAMP (CALIF) для Suzuki GSX1300RA L6 HAYABUSA - 2016 года выпуска
-
№АртикулНазвание
-
135710-15H30 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235726-15H00 BRACKET, REAR COMBINATIONBRACKET, REAR COMBINATION
-
335726-15H10 BRACKET, REAR COMBINATIONBRACKET, REAR COMBINATION
-
409106-05031 BOLT (5X12)BOLT (5X12)
-
509407-14407 CLAMP (L:145)CLAMP (L:145)
-
603541-0516A SCREWSCREW
-
735910-41G31 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
835912-41G01 ...LENS, LICENSE...LENS, LICENSE
-
935913-41G00 ...GASKET...GASKET
-
1035917-41G00 ...COVER, LICENSE LAMP...COVER, LICENSE LAMP
-
1109471-12140 ...BULB (12V,5W)...BULB (12V,5W)
-
1203211-0416A ...SCREW...SCREW
-
1309160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1409180-06356 SPACER (6.5X9X34)SPACER (6.5X9X34)
-
1509321-06028 CUSHIONCUSHION
-
1609404-06429 CLAMP (L:45)CLAMP (L:45)
-
1708316-1006A NUTNUT
-
1835927-15H00 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1909160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
2002142-0616A SCREWSCREW
-
2108316-1006A NUTNUT
-
2235970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
2335975-15H00 BRACKET, REAR SIDE REAR, (RH)BRACKET, REAR SIDE REAR, (RH)
-
2435976-15H00 BRACKET, REAR SIDE REAR, (LH)BRACKET, REAR SIDE REAR, (LH)
-
2502142-0612A SCREWSCREW
-
2609160-06126 WASHER (6.5X14X2)WASHER (6.5X14X2)
-
2708316-1005A NUTNUT
-
2808316-1006A NUTNUT
