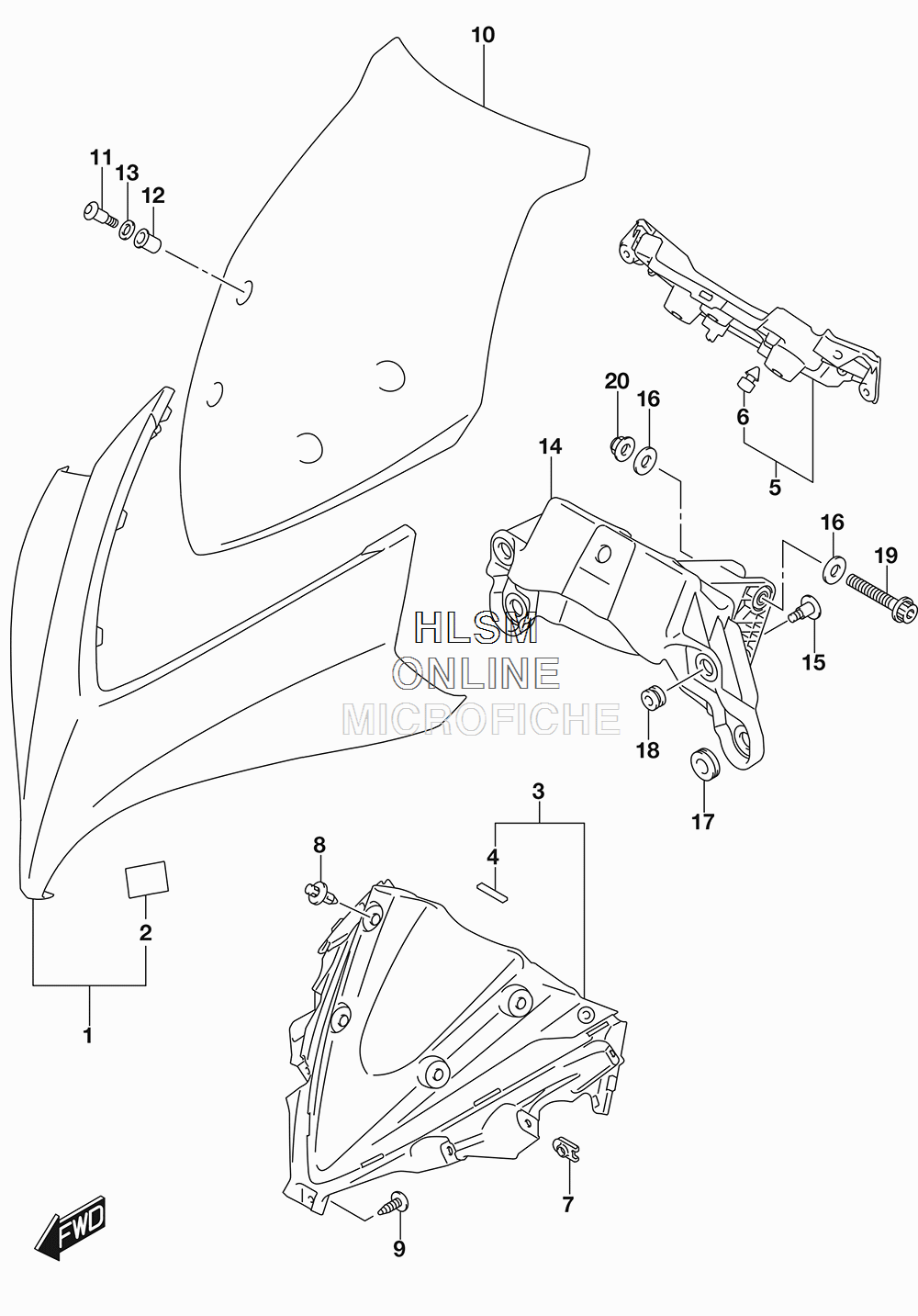

COWLING BODY для Suzuki GSX-S1000FA - 2017 года выпуска
-
№АртикулНазвание
-
1-194410-04K00-PGZ COWLING, BODY (PGZ - GRAY)COWLING, BODY (PGZ - GRAY)
-
1-294410-04K00-YSF COWLING, BODY (YSF - BLUE)COWLING, BODY (YSF - BLUE)
-
1-394410-04K00-YYG COWLING, BODY (YYG - RED FOR AV4)COWLING, BODY (YYG - RED FOR AV4)
-
244572-02F01 ...FASTENER...FASTENER
-
394640-04K00 PANEL, METER FRONTPANEL, METER FRONT
-
494476-38C00 ...CUSHION, UNDER COWLING NO.1...CUSHION, UNDER COWLING NO.1
-
594650-04K00 PANEL, METER REARPANEL, METER REAR
-
609321-06013 ...CUSHION...CUSHION
-
709148-06020 NUTNUT
-
809409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
903541-0516A SCREWSCREW
-
1094611-04K00 WINDSCREENWINDSCREEN
-
1109139-05032 SCREW (5X18)SCREW (5X18)
-
1209159-05019 NUTNUT
-
1309160-05048 WASHER (5.5X14X1.2)WASHER (5.5X14X1.2)
-
1494510-04K00 BRACE, COWLINGBRACE, COWLING
-
1509139-06190 BOLT (6X20)BOLT (6X20)
-
1609160-08124 WASHER (8.5X20X1.6)WASHER (8.5X20X1.6)
-
1709320-08028 CUSHIONCUSHION
-
1809320-09501 CUSHIONCUSHION
-
1907120-0855A BOLTBOLT
-
2008313-2008A NUTNUT
