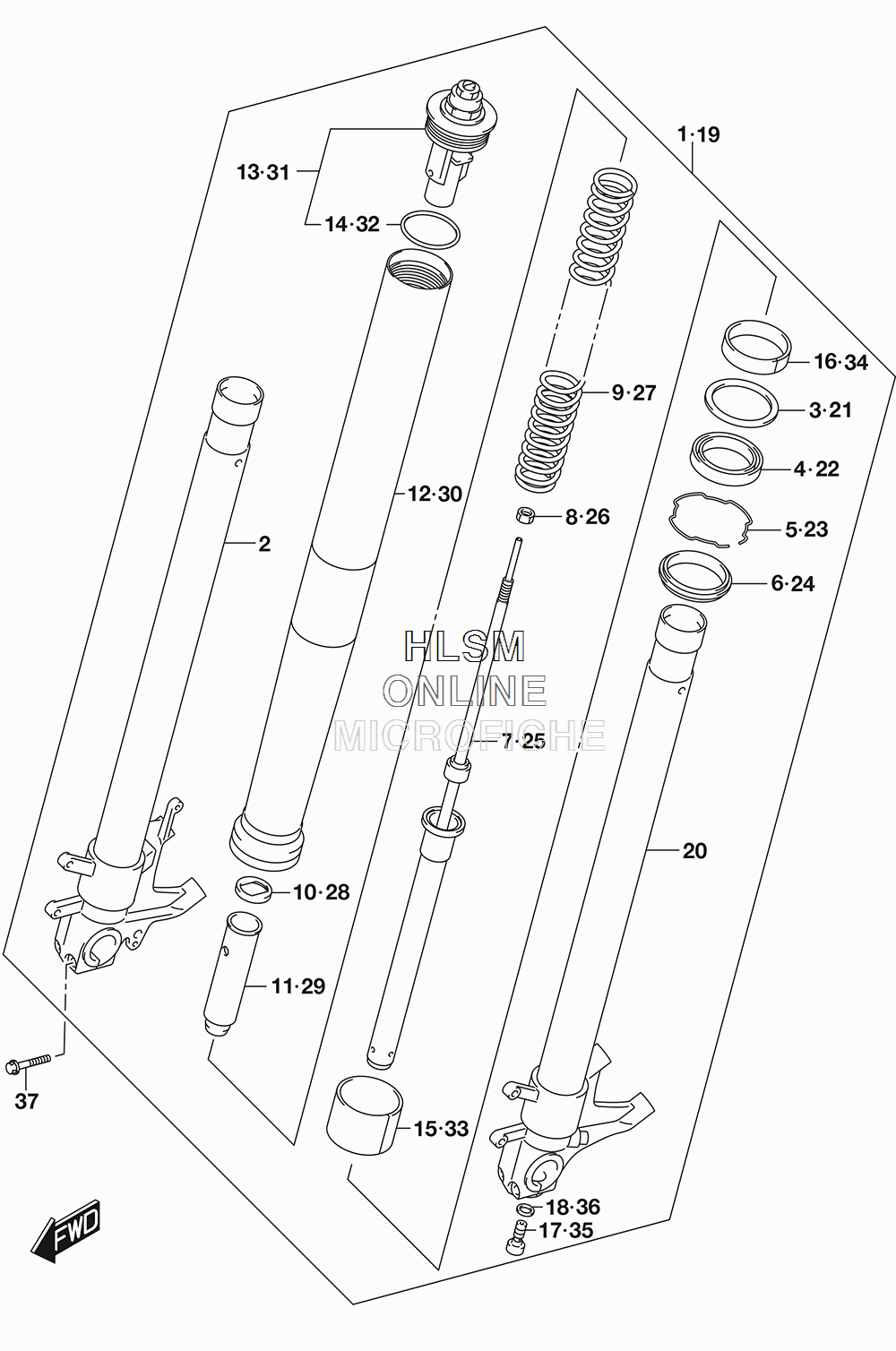

SUSPENSION - FRONT FORK DAMPER для Suzuki GSX-S1000FA - 2017 года выпуска
-
№АртикулНазвание
-
151103-04K20 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251110-04K00 ...TUBE, INNER (RH)...TUBE, INNER (RH)
-
351158-14200 ...WASHER...WASHER
-
451153-44G00 ...OIL SEAL...OIL SEAL
-
551156-14200 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
651173-02FA0 ...SEAL, DUST...SEAL, DUST
-
751146-04K00 ...CYLINDER...CYLINDER
-
851352-13A60 ...NUT, ROD...NUT, ROD
-
951171-04K00 ...SPRING...SPRING
-
1051158-40F30 ...GUIDE, SPRING...GUIDE, SPRING
-
1151176-40F30 ...SPACER, SPRING...SPACER, SPRING
-
1251131-04K00 ...TUBE, OUTER...TUBE, OUTER
-
1351351-04K00 ...CAP...CAP
-
1462278-14100 ......O RING......O RING
-
1551112-31J00 ...PISTON...PISTON
-
1651152-31J00 ...SLIDEMETAL...SLIDEMETAL
-
1751147-24F50 ...BOLT...BOLT
-
1851148-41310 ...GASKET...GASKET
-
1951104-04K20 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
2051120-04K00 ...TUBE, INNER (LH)...TUBE, INNER (LH)
-
2151158-14200 ...WASHER...WASHER
-
2251153-44G00 ...OIL SEAL...OIL SEAL
-
2351156-14200 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
2451173-02FA0 ...SEAL, DUST...SEAL, DUST
-
2551146-04K00 ...CYLINDER...CYLINDER
-
2651352-13A60 ...NUT, ROD...NUT, ROD
-
2751171-04K00 ...SPRING...SPRING
-
2851158-40F30 ...GUIDE, SPRING...GUIDE, SPRING
-
2951176-40F30 ...SPACER, SPRING...SPACER, SPRING
-
3051131-04K00 ...TUBE, OUTER...TUBE, OUTER
-
3151351-04K00 ...CAP...CAP
-
3262278-14100 ......O RING......O RING
-
3351112-31J00 ...PISTON...PISTON
-
3451152-31J00 ...SLIDEMETAL...SLIDEMETAL
-
3551147-24F50 ...BOLT...BOLT
-
3651148-41310 ...GASKET...GASKET
-
3751166-24F60 BOLTBOLT
