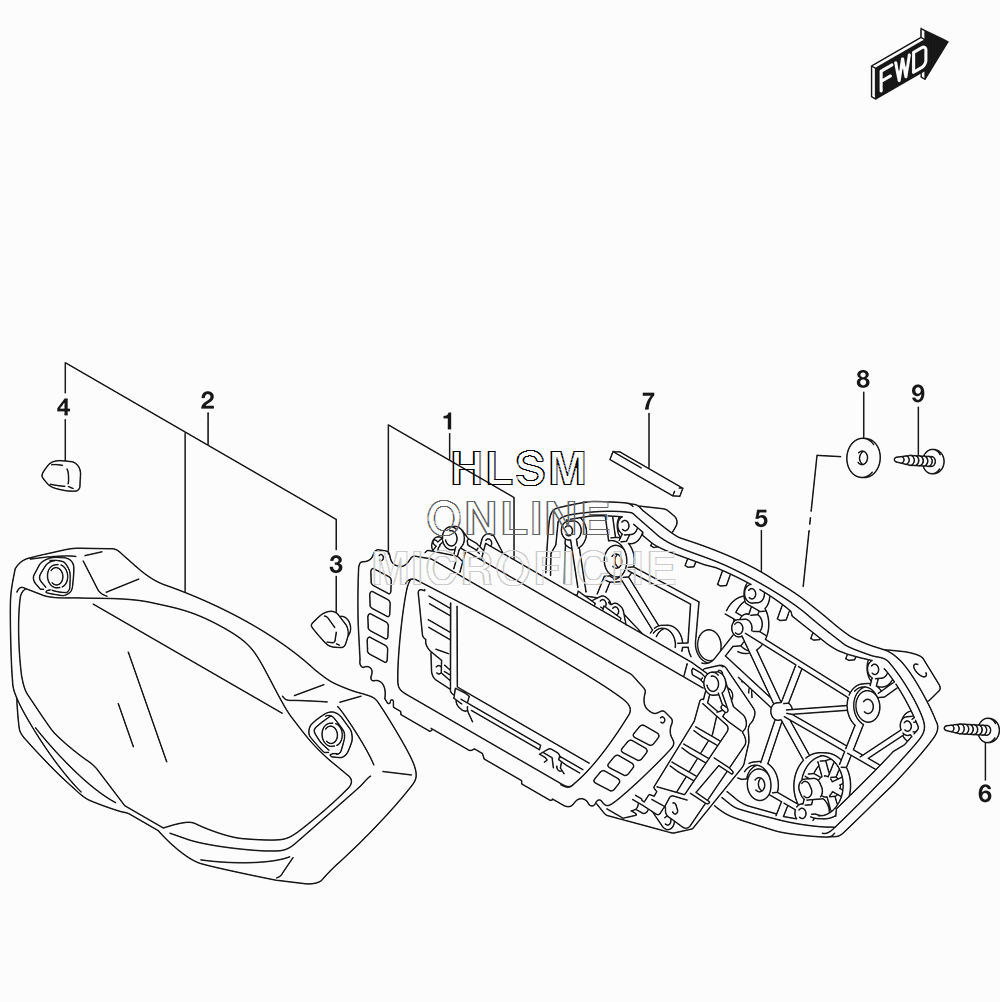

SPEEDOMETER (CANADA) для Suzuki GSX-S1000FA - 2017 года выпуска
-
№АртикулНазвание
-
134120-04K10 SPEEDOMETERSPEEDOMETER
-
234150-04K00 UPPER CASE ASSYUPPER CASE ASSY
-
334124-04K00 ...RUBBER, SWITCH (RH)...RUBBER, SWITCH (RH)
-
434124-04K10 ...RUBBER, SWITCH (LH)...RUBBER, SWITCH (LH)
-
534111-04K00 LOWER CASE ASSYLOWER CASE ASSY
-
634183-10C00 SCREWSCREW
-
734188-04K00 CUSHION, SPEEDOMETERCUSHION, SPEEDOMETER
-
809160-04026 WASHER (4.5X16X1.2)WASHER (4.5X16X1.2)
-
903541-0416A SCREWSCREW
