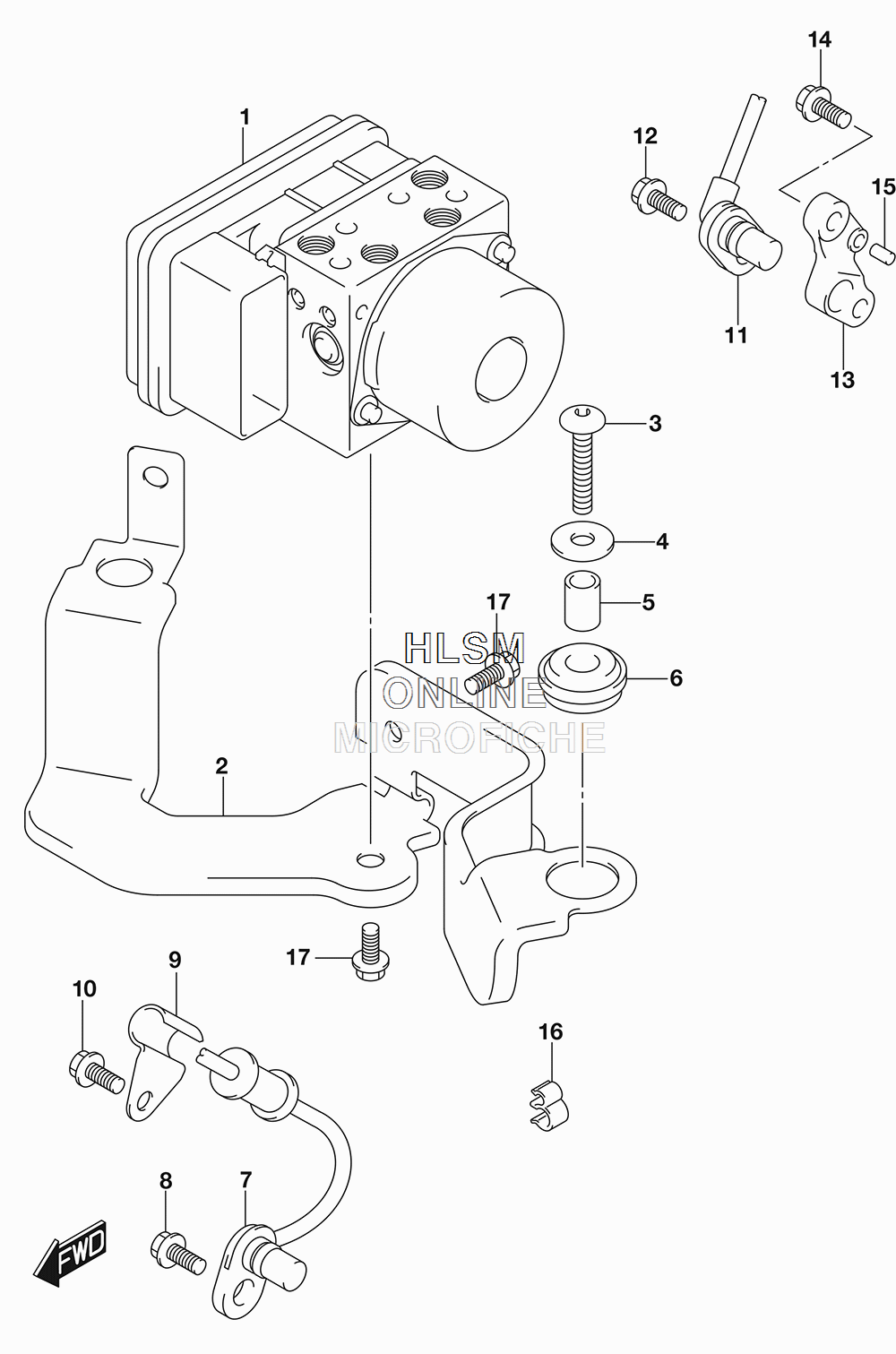

HYDRAULIC UNIT для Suzuki GSX-S1000FA - 2017 года выпуска
-
№АртикулНазвание
-
155610-04K00 UNIT ASSY, HYDRAULIC ABSUNIT ASSY, HYDRAULIC ABS
-
255660-04K00 HOLDER, HYDRAULIC UNITHOLDER, HYDRAULIC UNIT
-
309139-06065-XC0 BOLT (6X30)BOLT (6X30)
-
409160-06088 WASHER(6.5X20X1.6)WASHER(6.5X20X1.6)
-
555662-10G00 SPACER, HYDRAULIC UNITSPACER, HYDRAULIC UNIT
-
655663-10G10 RUBBER, HYDRAULIC UNITRUBBER, HYDRAULIC UNIT
-
755710-04K00 SENSOR, FRONT WHEEL ABSSENSOR, FRONT WHEEL ABS
-
801547-0612A BOLTBOLT
-
955731-23H00 CLAMP, SENSOR LEAD FRONTCLAMP, SENSOR LEAD FRONT
-
1001547-0612A BOLTBOLT
-
1165710-04K00 SENSOR, REAR WHEEL ABSSENSOR, REAR WHEEL ABS
-
1201547-0612A BOLTBOLT
-
1365721-04K00 BRACKET, SPEED SENSOR RRBRACKET, SPEED SENSOR RR
-
1409103-06240 BOLT (6X16)BOLT (6X16)
-
1504221-04089 PINPIN
-
1609408-00266 CLAMPCLAMP
-
1701547-0610A BOLTBOLT
