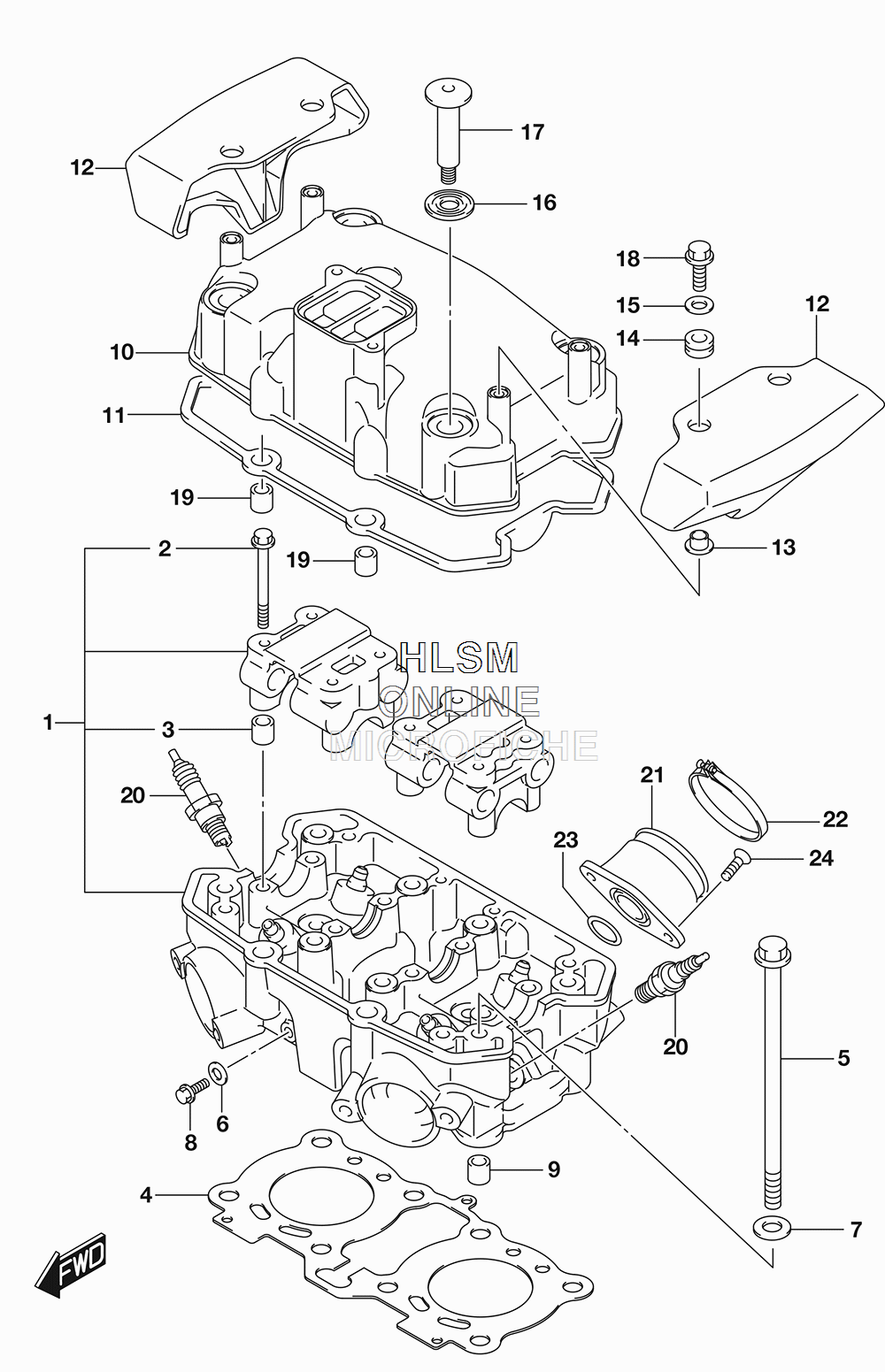

CYLINDER HEAD для Suzuki GW250 - 2017 года выпуска
-
№АртикулНазвание
-
111100-48H00 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209103-06220 ...BOLT (6X60)...BOLT (6X60)
-
309206-08011 ...PIN (8X11)...PIN (8X11)
-
411141-48H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
509103-08449 BOLT (8X165)BOLT (8X165)
-
609168-06L04 GASKET (5.8X13X1.8)GASKET (5.8X13X1.8)
-
709168-08036 GASKET (8.5X17X2.3)GASKET (8.5X17X2.3)
-
801550-0612A BOLTBOLT
-
904211-11129 PINPIN
-
1011171-48H00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
1111173-48H00 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
1211174-48H00 CAP, CYLINDER HEAD COVERCAP, CYLINDER HEAD COVER
-
1311177-48H00 SPACER, HEAD COVER CAPSPACER, HEAD COVER CAP
-
1411181-48H00 CUSHION, HEAD COVER CAPCUSHION, HEAD COVER CAP
-
1509160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1611191-27E60 WASHER, CYLINDER HEAD COVERWASHER, CYLINDER HEAD COVER
-
1709106-07022 BOLT (7X57)BOLT (7X57)
-
1801547-0620A BOLTBOLT
-
1904211-11129 PINPIN
-
20-109482-00516 SPARK PLUG (CR7E) (NGK)SPARK PLUG (CR7E) (NGK)
-
20-209482-00515 SPARK PLUG (U22ESR-N) (DENSO)SPARK PLUG (U22ESR-N) (DENSO)
-
2113110-48H00 PIPE, INTAKEPIPE, INTAKE
-
2213170-48H00 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
2309280-30L01 O-RING (D:2.3,ID:29.7)O-RING (D:2.3,ID:29.7)
-
2402122-0616A SCREWSCREW
