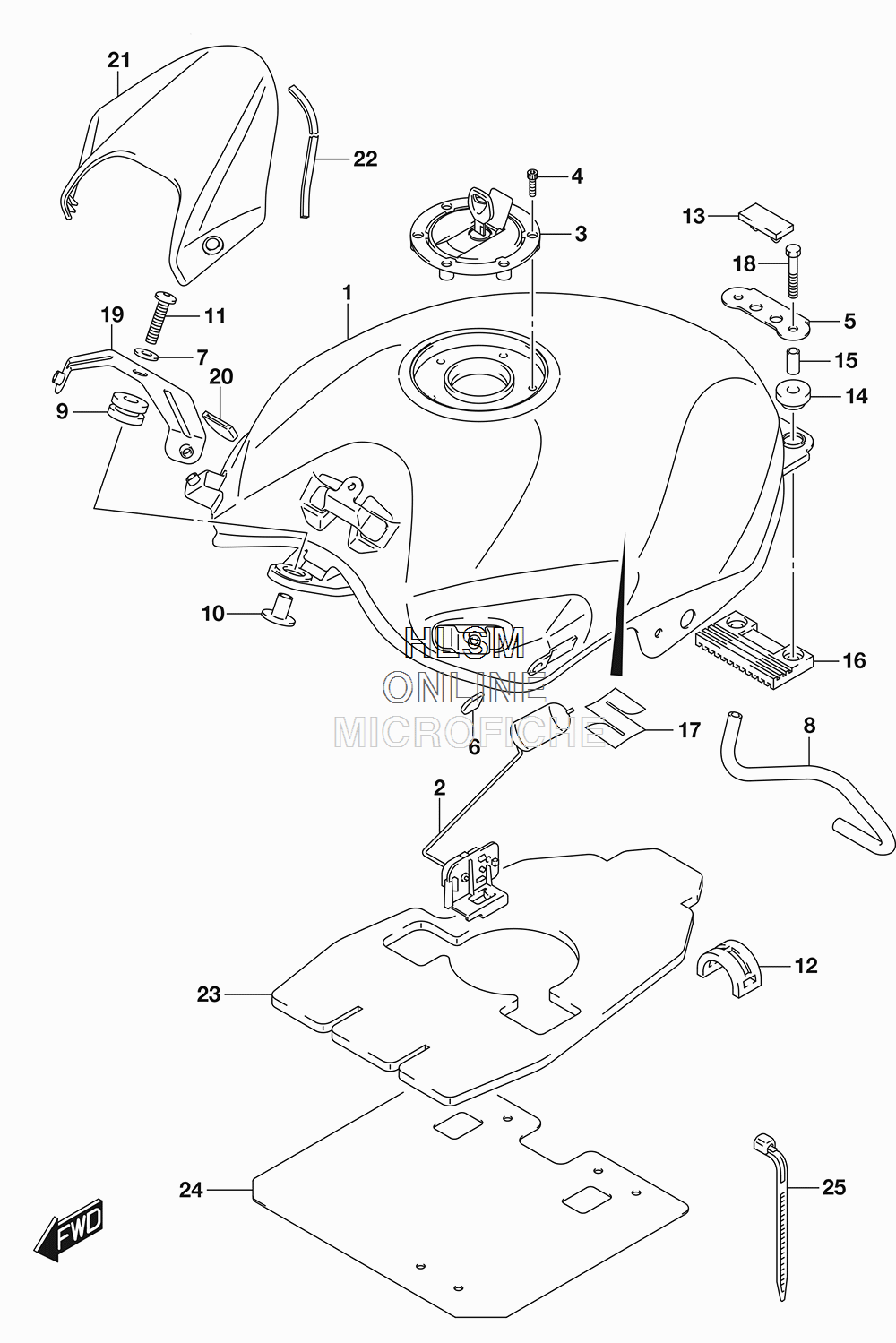

FUEL TANK (CANADA) для Suzuki GW250 - 2017 года выпуска
-
№АртикулНазвание
-
144100-48H10-YAY TANK ASSY, FUEL (YAY - BLACK)TANK ASSY, FUEL (YAY - BLACK)
-
234810-48H01 GAUGE ASSY, FUEL LEVEL SENDERGAUGE ASSY, FUEL LEVEL SENDER
-
344200-16870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
444211-48H00 BOLT (5X20)BOLT (5X20)
-
544146-48H00 WASHER, REAR BRACKETWASHER, REAR BRACKET
-
644276-48H00 CUSHION, FUEL TANK COVERCUSHION, FUEL TANK COVER
-
744262-48H00 WASHER, FUEL TANK FRONTWASHER, FUEL TANK FRONT
-
844423-48H10 HOSE, FUEL TANK WATER DRAINHOSE, FUEL TANK WATER DRAIN
-
944511-48H00 CUSHION, FUEL TANK FRONTCUSHION, FUEL TANK FRONT
-
1044512-48H00 SPACER, FUEL TANK FRONTSPACER, FUEL TANK FRONT
-
1144513-48H00 SCREW, FUEL TANK FRONTSCREW, FUEL TANK FRONT
-
1244541-48H00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
1344542-48H00 CUSHION, REAR BRACKETCUSHION, REAR BRACKET
-
1444543-48H00 CUSHION, FUEL TANK REAR UPPERCUSHION, FUEL TANK REAR UPPER
-
1544544-48H00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
1644545-48H00 CUSHION, FUEL TANK REAR LOWERCUSHION, FUEL TANK REAR LOWER
-
1768111-47HA0 EMBLEM, "S"EMBLEM, "S"
-
1801500-0635A BOLTBOLT
-
1944160-48H00 BRACKET, FUEL TANK COVERBRACKET, FUEL TANK COVER
-
2044164-48H00 CUSHION, TANK COVER BRACKETCUSHION, TANK COVER BRACKET
-
2144191-48H00-YMD COVER, FUEL TANK CENTER (YMD - SILVER)COVER, FUEL TANK CENTER (YMD - SILVER)
-
2244277-48H00 CUSHION, TANK COVER CENTERCUSHION, TANK COVER CENTER
-
2344192-48H00 SHIELD, FUEL TANK HEATSHIELD, FUEL TANK HEAT
-
2444193-48H10 SHIELD, FUEL TANK HEAT NO.2SHIELD, FUEL TANK HEAT NO.2
-
2536990-32G10 CLAMPCLAMP
