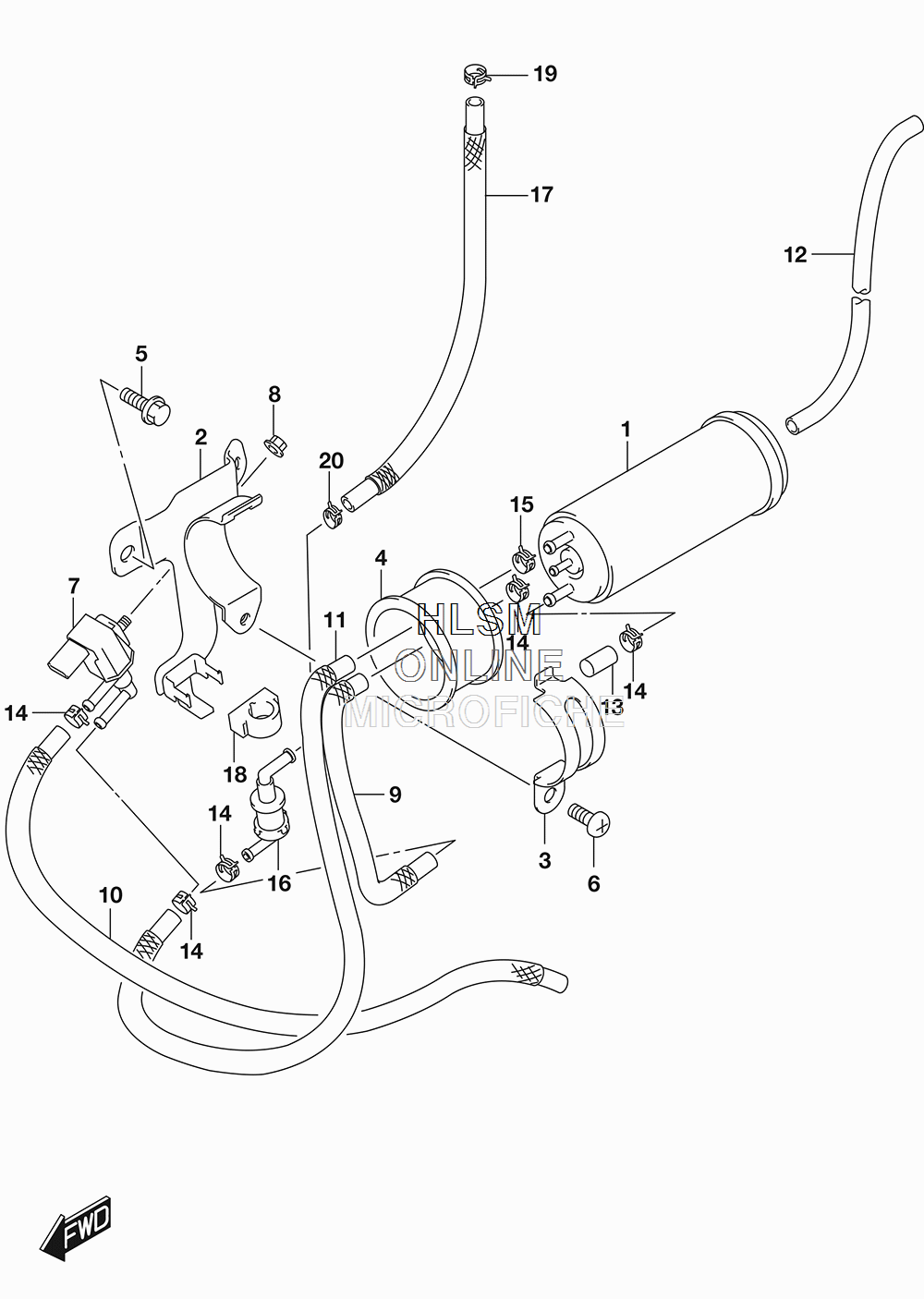

EVAP SYSTEM (CALIF.) для Suzuki GW250 - 2017 года выпуска
-
№АртикулНазвание
-
118560-48H10 CANISTER ASSY, CHARCOALCANISTER ASSY, CHARCOAL
-
218570-48H00 BRACKET, CANISTERBRACKET, CANISTER
-
318578-48H00 HOLDER, CANISTERHOLDER, CANISTER
-
444883-26E00 CUSHION, CANISTERCUSHION, CANISTER
-
501547-0616A BOLTBOLT
-
602142-0610A SCREWSCREW
-
718117-52G10 VALVE, CANISTER PURGEVALVE, CANISTER PURGE
-
808316-1006A NUTNUT
-
918561-48H10 HOSE, CANISTER INLETHOSE, CANISTER INLET
-
1018563-48H10 HOSE, PURGE VALVEHOSE, PURGE VALVE
-
1118562-48H10 HOSE, CANISTER PURGEHOSE, CANISTER PURGE
-
1218567-48H01 HOSE, CANISTER AIRHOSE, CANISTER AIR
-
1309251-07L01 CAPCAP
-
1409401-10L01 CLIPCLIP
-
1509401-12L04 CLIPCLIP
-
1644240-13H00 VALVE, FUEL TANK BRTHRVALVE, FUEL TANK BRTHR
-
1744434-48H10 HOSE, TANK & BRTHR VALVEHOSE, TANK & BRTHR VALVE
-
1844894-48H00 CUSHION, FUEL TANK BRTHR VALVECUSHION, FUEL TANK BRTHR VALVE
-
1909401-10L01 CLIPCLIP
-
2009401-10L01 CLIPCLIP
