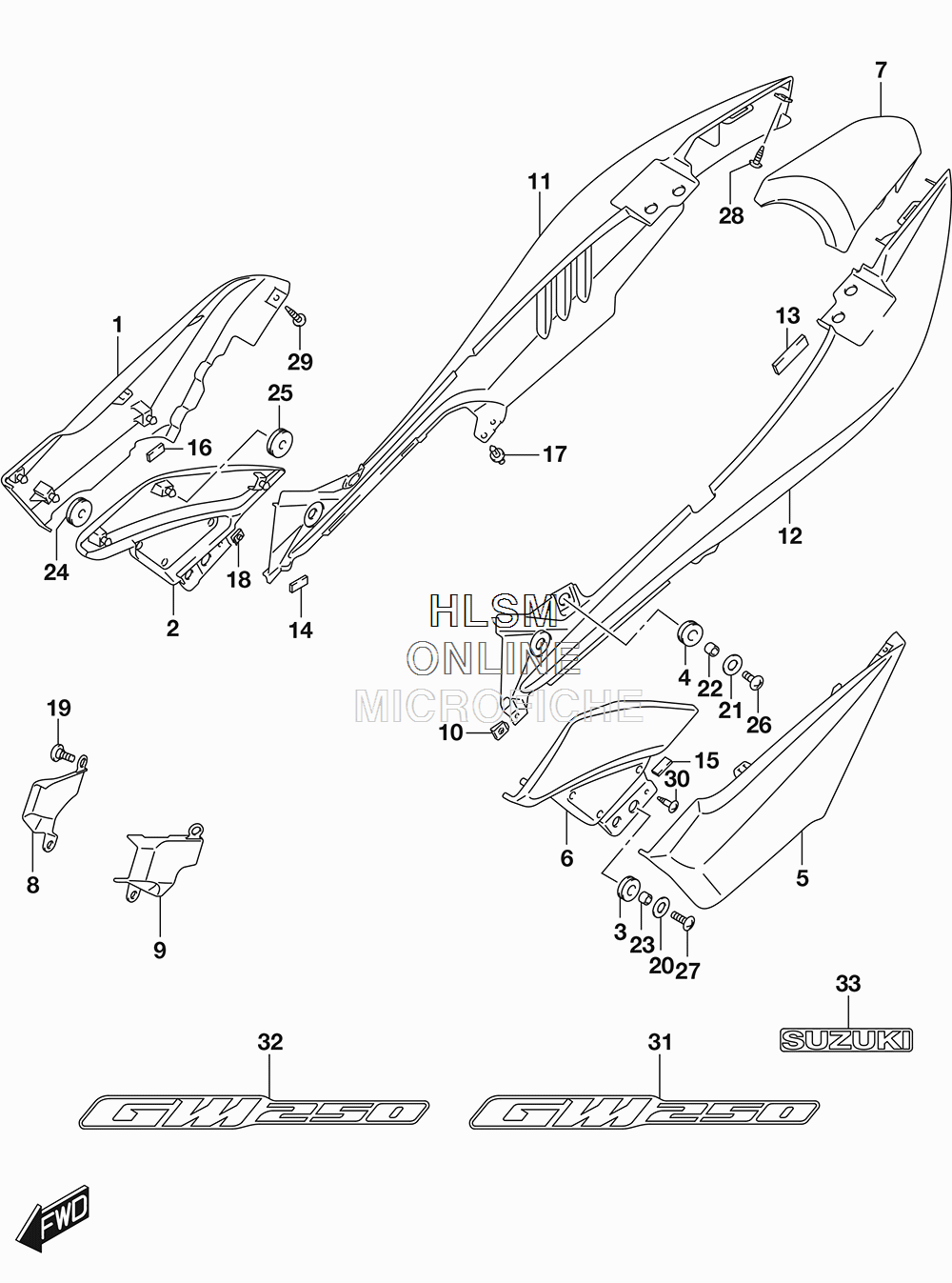

FRAME COVER (CANADA) для Suzuki GW250 - 2017 года выпуска
-
№АртикулНазвание
-
147111-48H00-YKV COVER, FRAME (RH) (YKV - BLACK)COVER, FRAME (RH) (YKV - BLACK)
-
247121-48H00-AB4 COVER, FRAME FRONT (RH) (AB4 - SILVER/BLACK)COVER, FRAME FRONT (RH) (AB4 - SILVER/BLACK)
-
347161-48H00 CUSHION, COVER FRONTCUSHION, COVER FRONT
-
447161-48H00 CUSHION, COVER UPPERCUSHION, COVER UPPER
-
547211-48H00-YKV COVER, FRAME (LH) (YKV - BLACK)COVER, FRAME (LH) (YKV - BLACK)
-
647221-48H00-AB4 COVER, FRAME FRONT (LH) (AB4 - SILVER/BLACK)COVER, FRAME FRONT (LH) (AB4 - SILVER/BLACK)
-
747311-48H00-YAY COVER, FRAME UPPER CENTER (YAY - BLACK)COVER, FRAME UPPER CENTER (YAY - BLACK)
-
847351-48H00 COVER, FRAME HEAD (RH)COVER, FRAME HEAD (RH)
-
947361-48H00 COVER, FRAME HEAD (LH)COVER, FRAME HEAD (LH)
-
1047399-48H00 NUTNUT
-
1147831-48H00-YAY COVER, FRAME UPPER (RH) (YAY - BLACK)COVER, FRAME UPPER (RH) (YAY - BLACK)
-
1247841-48H00-YAY COVER, FRAME UPPER (LH) (YAY - BLACK)COVER, FRAME UPPER (LH) (YAY - BLACK)
-
1347845-48H00 CUSHION, COVER UPPER REARCUSHION, COVER UPPER REAR
-
1447846-48H00 CUSHION, COVER UPPERCUSHION, COVER UPPER
-
1547846-48H00 CUSHION, COVER FRONTCUSHION, COVER FRONT
-
1647846-48H00 CUSHION, FRAME COVERCUSHION, FRAME COVER
-
1748292-32GH0 CLIP, COVER UPPERCLIP, COVER UPPER
-
1893162-37G00 NUT, COVER FRAME FRONTNUT, COVER FRAME FRONT
-
1947353-48H00 SCREW, FRAME HEAD COVERSCREW, FRAME HEAD COVER
-
2009160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
2109160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
2209180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
2309180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
2409320-08018 CUSHIONCUSHION
-
2509320-08018 CUSHIONCUSHION
-
2602142-0620A SCREWSCREW
-
2702142-0620A SCREWSCREW
-
2803541-0516A SCREWSCREW
-
2903541-0516A SCREWSCREW
-
3003541-0516A SCREWSCREW
-
3168131-48H60-JM4 EMBLEM, FRAME COVER (RH) (JM4 - GRAY/GRAY)EMBLEM, FRAME COVER (RH) (JM4 - GRAY/GRAY)
-
3268141-48H60-JM4 EMBLEM, FRAME COVER (LH) (JM4 - GRAY/GRAY)EMBLEM, FRAME COVER (LH) (JM4 - GRAY/GRAY)
-
3368281-48H60-FJA EMBLEM, "SUZUKI" (FJA - SILVER/BLACK)EMBLEM, "SUZUKI" (FJA - SILVER/BLACK)
