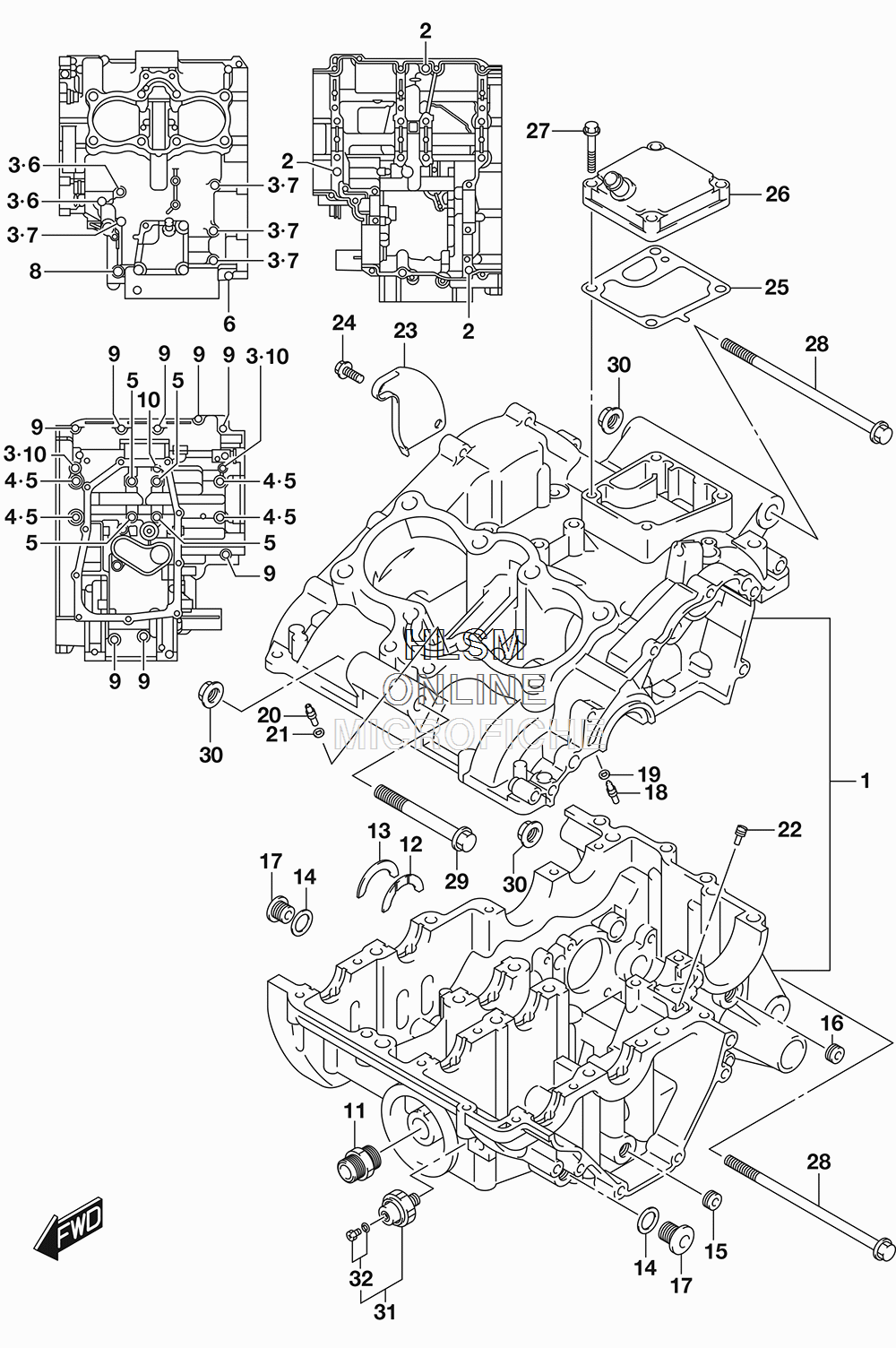

CRANKCASE для Suzuki GW250Z - 2017 года выпуска
-
№АртикулНазвание
-
111300-48890 CRANKCASE SETCRANKCASE SET
-
204211-11169 ...PIN...PIN
-
309168-06L04 ...GASKET (5.8X13X1.8)...GASKET (5.8X13X1.8)
-
409168-08035 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
509103-08133 ...BOLT (8X105)...BOLT (8X105)
-
601547-0635A ...BOLT...BOLT
-
701547-0655A ...BOLT...BOLT
-
801550-0855A ...BOLT...BOLT
-
901547-0635A ...BOLT...BOLT
-
1001547-0690A ...BOLT...BOLT
-
1116591-48H00 ...UNION, OIL FILTER STAND...UNION, OIL FILTER STAND
-
1212228-17E00-0E0 ...BEARING, CRANK THRUST (YELLOW)...BEARING, CRANK THRUST (YELLOW)
-
13-112228-17E00-0F0 ...BEARING, CRANK THRUST (WHITE...BEARING, CRANK THRUST (WHITE
-
13-212228-17E00-0G0 ...BEARING, CRANK THRUST (ORANGE)...BEARING, CRANK THRUST (ORANGE)
-
13-312228-17E00-0H0 ...BEARING, CRANK THRUST (PINK)...BEARING, CRANK THRUST (PINK)
-
13-412228-17E00-0J0 ...BEARING, CRANK THRUST (BROWN...BEARING, CRANK THRUST (BROWN
-
13-512228-17E00-0K0 ...BEARING, CRANK THRUST (PURPLE)...BEARING, CRANK THRUST (PURPLE)
-
13-612228-17E00-0L0 ...BEARING, CRANK THRUST (NO COLOR)...BEARING, CRANK THRUST (NO COLOR)
-
1409168-14L01 GASKET (14X18.3X4.8)GASKET (14X18.3X4.8)
-
1511322-48H00 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1611322-48H00 PLUG, SHIFT FORK SHAFTPLUG, SHIFT FORK SHAFT
-
1709248-14013 PLUG (14X12)PLUG (14X12)
-
1811391-48H00 JET, PISTON COOLINGJET, PISTON COOLING
-
1909280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2011329-48H00 JET, OIL GALLERY CYLINDERJET, OIL GALLERY CYLINDER
-
2109280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2211313-48H00 JET, T/M COOLINGJET, T/M COOLING
-
2311317-48H00 PLATE, OIL SEPARATORPLATE, OIL SEPARATOR
-
2401547-0612A BOLTBOLT
-
2511318-48H00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
2611330-48H01 COVER, BREATHERCOVER, BREATHER
-
2701547-0630A BOLTBOLT
-
2809103-10115 BOLT (10X155)BOLT (10X155)
-
2909103-10445 BOLT (10X85)BOLT (10X85)
-
3009159-10L06 NUTNUT
-
3137820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
3237822-33D00 ...BOLT, OIL PRESSURE SWITCH...BOLT, OIL PRESSURE SWITCH
