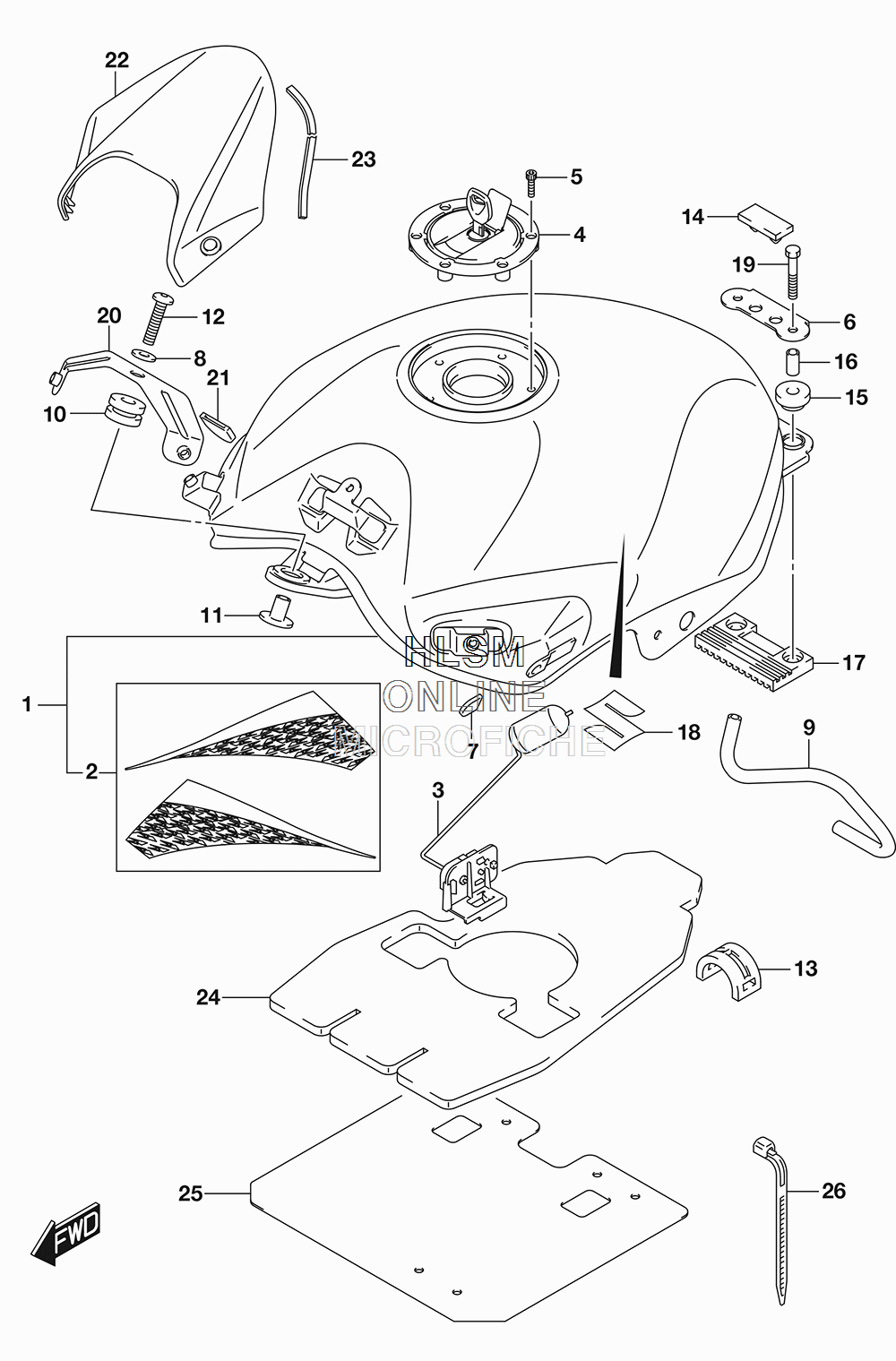

FUEL TANK (CALIF.) для Suzuki GW250Z - 2017 года выпуска
-
№АртикулНазвание
-
144100-48H61-AY4 TANK ASSY, FUEL (AY4 - RED/BLACK)TANK ASSY, FUEL (AY4 - RED/BLACK)
-
268110-48H01-AY4 ...TAPE SET, FUEL TANK (AY4 - RED/BLACK)...TAPE SET, FUEL TANK (AY4 - RED/BLACK)
-
334810-48H01 GAUGE ASSY, FUEL LEVEL SENDERGAUGE ASSY, FUEL LEVEL SENDER
-
444200-16870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
544211-48H00 BOLT (5X20)BOLT (5X20)
-
644146-48H00 WASHER, REAR BRACKETWASHER, REAR BRACKET
-
744276-48H00 CUSHION, FUEL TANK COVERCUSHION, FUEL TANK COVER
-
844262-48H00 WASHER, FUEL TANK FRONTWASHER, FUEL TANK FRONT
-
944423-48H10 HOSE, FUEL TANK WATER DRAINHOSE, FUEL TANK WATER DRAIN
-
1044511-48H00 CUSHION, FUEL TANK FRONTCUSHION, FUEL TANK FRONT
-
1144512-48H00 SPACER, FUEL TANK FRONTSPACER, FUEL TANK FRONT
-
1244513-48H00 SCREW, FUEL TANK FRONTSCREW, FUEL TANK FRONT
-
1344541-48H00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
1444542-48H00 CUSHION, REAR BRACKETCUSHION, REAR BRACKET
-
1544543-48H00 CUSHION, FUEL TANK REAR UPPERCUSHION, FUEL TANK REAR UPPER
-
1644544-48H00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
1744545-48H00 CUSHION, FUEL TANK REAR LOWERCUSHION, FUEL TANK REAR LOWER
-
1868111-47HA0 EMBLEM, "S"EMBLEM, "S"
-
1901500-0635A BOLTBOLT
-
2044160-48H00 BRACKET, FUEL TANK COVERBRACKET, FUEL TANK COVER
-
2144164-48H00 CUSHION, TANK COVER BRACKETCUSHION, TANK COVER BRACKET
-
2244191-48H00-YAY COVER, FUEL TANK CENTER (YAY - BLACK)COVER, FUEL TANK CENTER (YAY - BLACK)
-
2344277-48H00 CUSHION, TANK COVER CENTERCUSHION, TANK COVER CENTER
-
2444192-48H00 SHIELD, FUEL TANK HEATSHIELD, FUEL TANK HEAT
-
2544193-48H10 SHIELD, FUEL TANK HEAT NO.2SHIELD, FUEL TANK HEAT NO.2
-
2636990-32G10 CLAMPCLAMP
