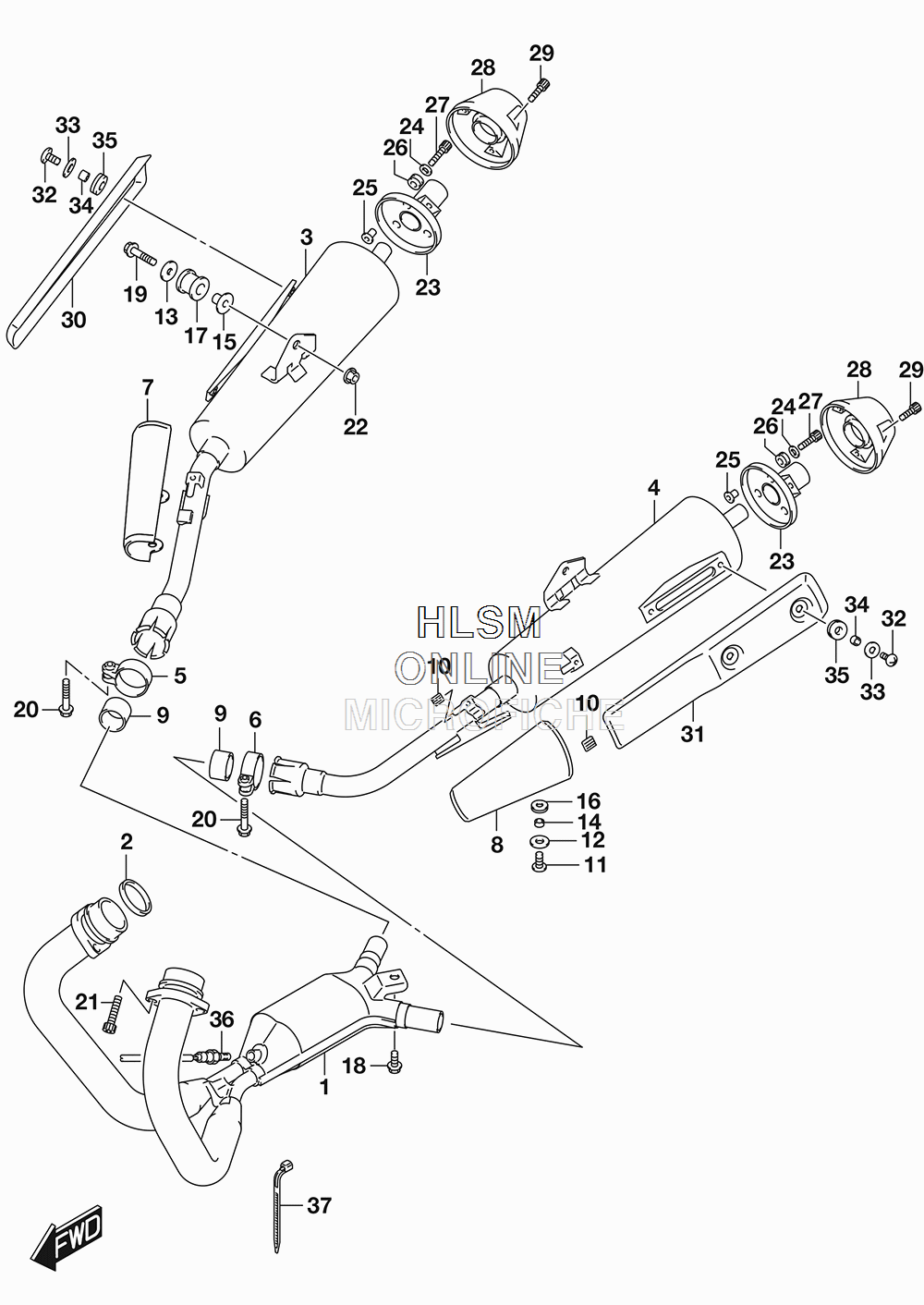

MUFFLER для Suzuki GW250Z - 2017 года выпуска
-
№АртикулНазвание
-
114100-48H01 EXHAUSTEXHAUST
-
214181-46E20 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
314305-48H02 MUFFLER, (RH)MUFFLER, (RH)
-
414306-48H03 MUFFLER, (LH)MUFFLER, (LH)
-
514459-48H00 CLAMP, MUFFLER CONNECTOR (RH)CLAMP, MUFFLER CONNECTOR (RH)
-
614469-48H00 CLAMP, MUFFLER CONNECTOR (LH)CLAMP, MUFFLER CONNECTOR (LH)
-
714750-48H00 COVER, MUFFLER FRONT (RH)COVER, MUFFLER FRONT (RH)
-
814760-48H00 COVER, MUFFLER FRONT (LH)COVER, MUFFLER FRONT (LH)
-
914771-38F10 CONNECTOR, JOINTCONNECTOR, JOINT
-
1014795-10FA0 GROMMETGROMMET
-
1109139-06030 SCREW (6X16)SCREW (6X16)
-
1209160-06164 WASHER (6.5X18.0X1)WASHER (6.5X18.0X1)
-
1309160-08149 WASHER (8.5X30X1.6)WASHER (8.5X30X1.6)
-
1409180-06365 SPACER (6.5X9X5)SPACER (6.5X9X5)
-
1509180-08L02 SPACERSPACER
-
1609320-08082 CUSHIONCUSHION
-
1709320-12L04 CUSHIONCUSHION
-
1801550-0816A BOLTBOLT
-
1901550-0840A BOLTBOLT
-
2001550-0840A BOLTBOLT
-
2107130-0830A BOLTBOLT
-
2208316-1008A NUTNUT
-
2314770-48H01 STAY, MUFFLER RR COVERSTAY, MUFFLER RR COVER
-
2409160-06028 WASHER (6.5X18X1)WASHER (6.5X18X1)
-
2509180-06331 SPACER (6.2X8.4X10.9)SPACER (6.2X8.4X10.9)
-
2609320-08068 CUSHIONCUSHION
-
2707130-0620A BOLTBOLT
-
2814790-48H01-YYK COVER, MUFFLER REAR (YYK - GRAY)COVER, MUFFLER REAR (YYK - GRAY)
-
2907130-0616A BOLTBOLT
-
3014781-48H00 COVER, MUFFLER BODY (RH)COVER, MUFFLER BODY (RH)
-
3114730-48H00 COVER, MUFFLER BODY (LH)COVER, MUFFLER BODY (LH)
-
3209139-06030 SCREW (6X16)SCREW (6X16)
-
3309160-06164 WASHER (6.5X18.0X1)WASHER (6.5X18.0X1)
-
3409180-06365 SPACER (6.5X9X5)SPACER (6.5X9X5)
-
3509320-08082 CUSHIONCUSHION
-
3618213-23H20 SENSOR, OXYGENSENSOR, OXYGEN
-
3736990-32G20 CLAMP, OXYGEN SENSOR LEADCLAMP, OXYGEN SENSOR LEAD
