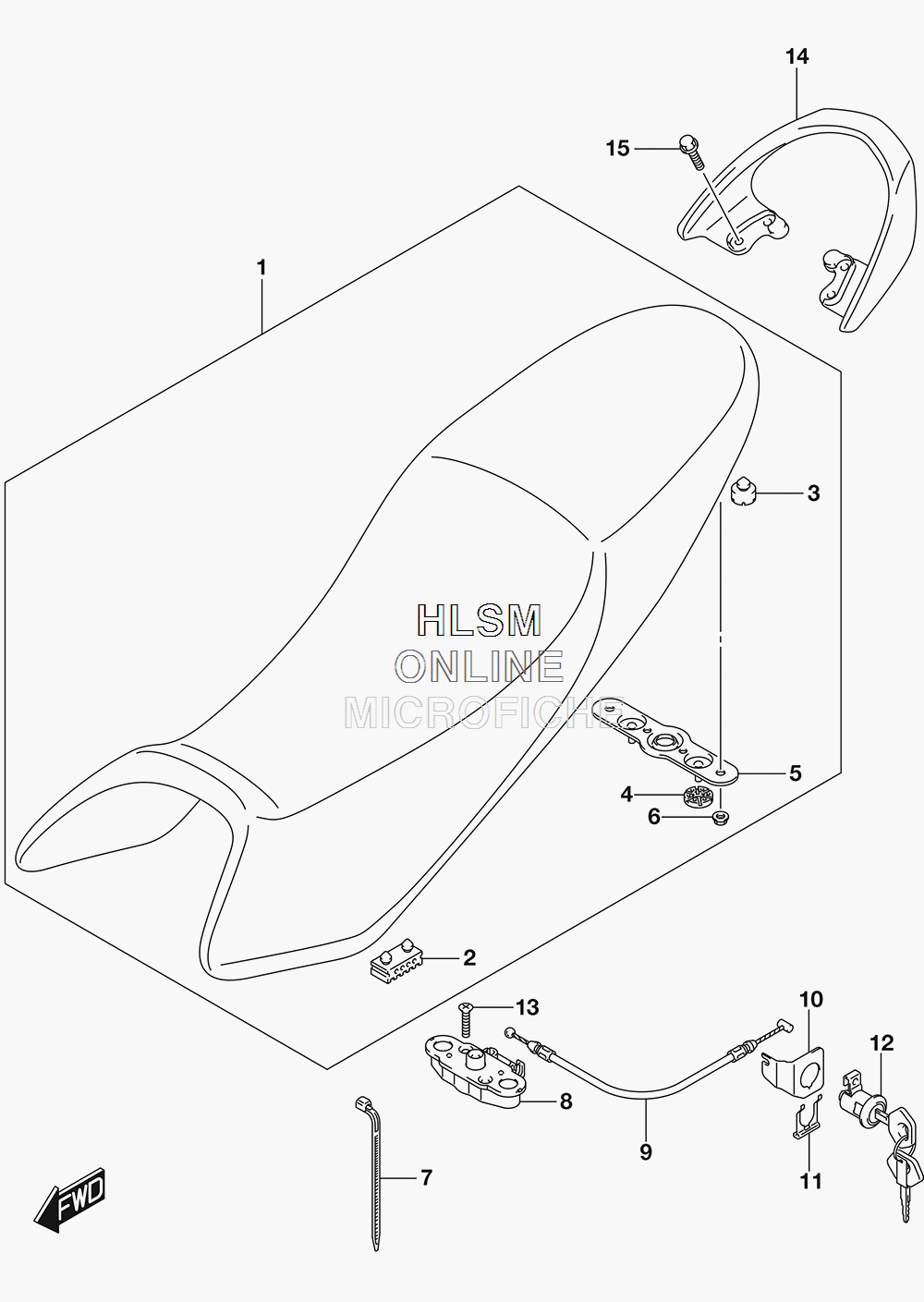

SEAT (CALIF.) для Suzuki GW250Z - 2017 года выпуска
-
№АртикулНазвание
-
145100-48H00-PEH SEAT ASSY (PEH - BLACK)SEAT ASSY (PEH - BLACK)
-
245147-12FB0 ...CUSHION, SEAT MOUNT...CUSHION, SEAT MOUNT
-
345148-20G50 ...CUSHION, SEAT MOUNT...CUSHION, SEAT MOUNT
-
445213-13601 ...CUSHION, SEAT LOCK STRIKER...CUSHION, SEAT LOCK STRIKER
-
545290-28D00 ...STRIKER, SEAT LOCK...STRIKER, SEAT LOCK
-
608316-1006B ...NUT...NUT
-
736990-32G10 CLAMP, SEAT LOCK CABLECLAMP, SEAT LOCK CABLE
-
845220-45F10 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
945280-48HB0 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1045288-09GB0 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
1145289-11F00 PLATE, SEAT LOCK ASSYPLATE, SEAT LOCK ASSY
-
1295700-14F00 LOCK ASSY, SEATLOCK ASSY, SEAT
-
1302122-0630B SCREWSCREW
-
1446211-48H01-YGA HANDLE, PILLION RIDER (YGA - BLACK)HANDLE, PILLION RIDER (YGA - BLACK)
-
1501550-0825A BOLTBOLT
