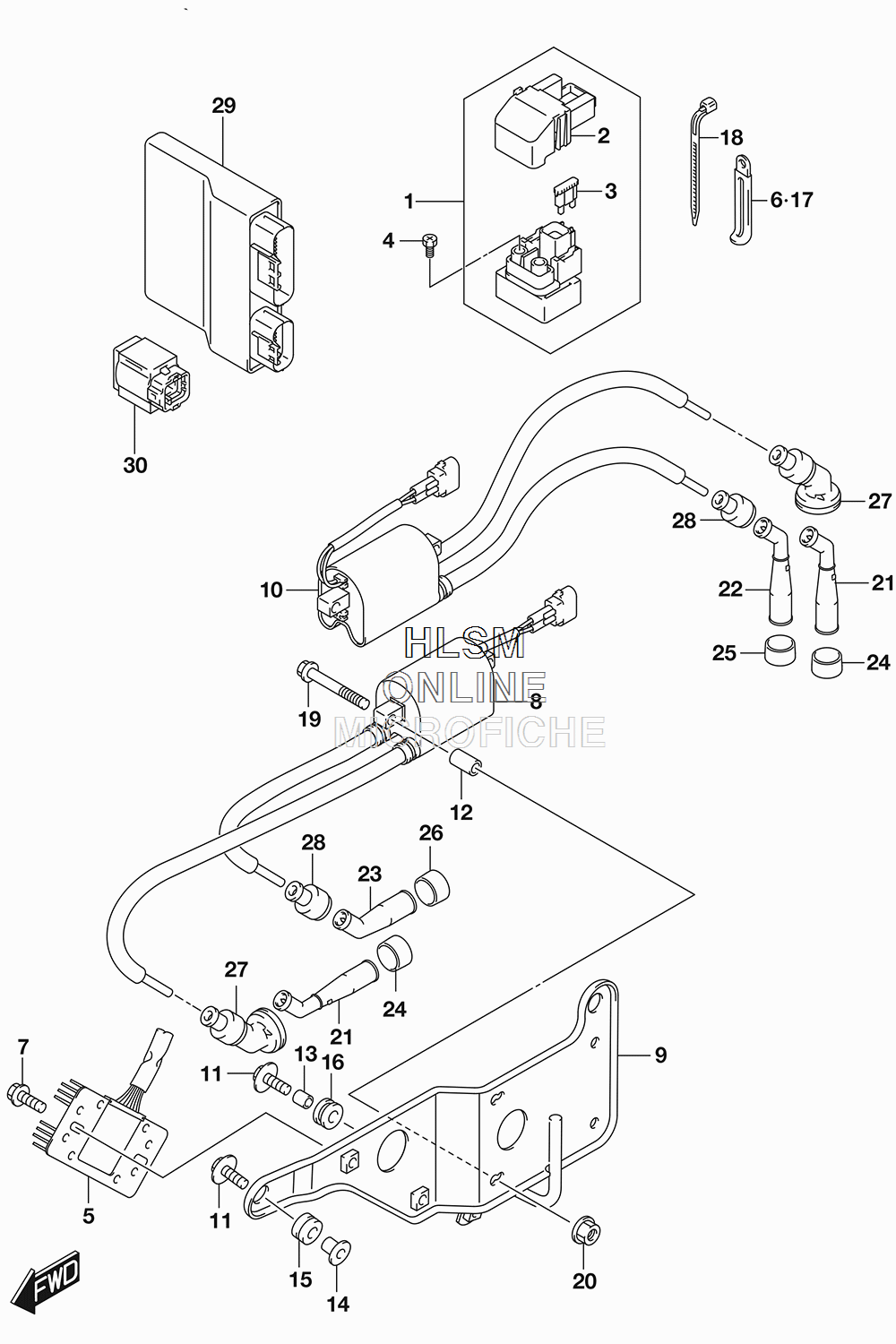

ELECTRICAL (CALIF.) для Suzuki SV650A - 2017 года выпуска
-
№АртикулНазвание
-
131800-06G00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-47E00 ...COVER...COVER
-
309481-30101 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-47H00 RECTIFIER ASSYRECTIFIER ASSY
-
609404-06429 CLAMP (L:45)CLAMP (L:45)
-
702162-0616A SCREWSCREW
-
833410-44H01 COIL ASSY, IGNITION FRONTCOIL ASSY, IGNITION FRONT
-
933414-44H01 BRACKET, IGNITION COIL REARBRACKET, IGNITION COIL REAR
-
1033420-44H01 COIL ASSY, IGNITION REARCOIL ASSY, IGNITION REAR
-
1109116-06182 BOLT (6X20)BOLT (6X20)
-
1209180-06195 SPACER (6.4X10X18)SPACER (6.4X10X18)
-
1309180-06263 SPACER (6.5X9X9)SPACER (6.5X9X9)
-
1409180-06331 SPACER (6.2X8.4X10.9)SPACER (6.2X8.4X10.9)
-
1509320-08501 CUSHIONCUSHION
-
1609320-09016 CUSHIONCUSHION
-
1709404-06433 CLAMP (L:80)CLAMP (L:80)
-
1809407-18402 CLAMP (L:165)CLAMP (L:165)
-
1901547-0640A BOLTBOLT
-
2008316-1006A NUTNUT
-
2133510-17G00 CAP ASSY, SPARK PLUG (CENTER)CAP ASSY, SPARK PLUG (CENTER)
-
2233510-17G00 CAP ASSY, SPARK PLUG (SIDE)CAP ASSY, SPARK PLUG (SIDE)
-
2333510-20E00 CAP ASSY, SPARK PLUG (SIDE)CAP ASSY, SPARK PLUG (SIDE)
-
2433541-23E10 SEAL, SPARK PLUG CAP (CENTER)SEAL, SPARK PLUG CAP (CENTER)
-
2533541-23E10 SEAL, SPARK PLUG CAP (SIDE)SEAL, SPARK PLUG CAP (SIDE)
-
2633541-47D00 SEAL, SPARK PLUG CAP (SIDE)SEAL, SPARK PLUG CAP (SIDE)
-
2733542-17G01 SEAL, HIGH TENSION CORD CENTERSEAL, HIGH TENSION CORD CENTER
-
2833542-38B00 SEAL, HIGH TENSION CORD (SIDESEAL, HIGH TENSION CORD (SIDE
-
2932920-18K10 CONTROL UNIT, FICONTROL UNIT, FI
-
3033960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
