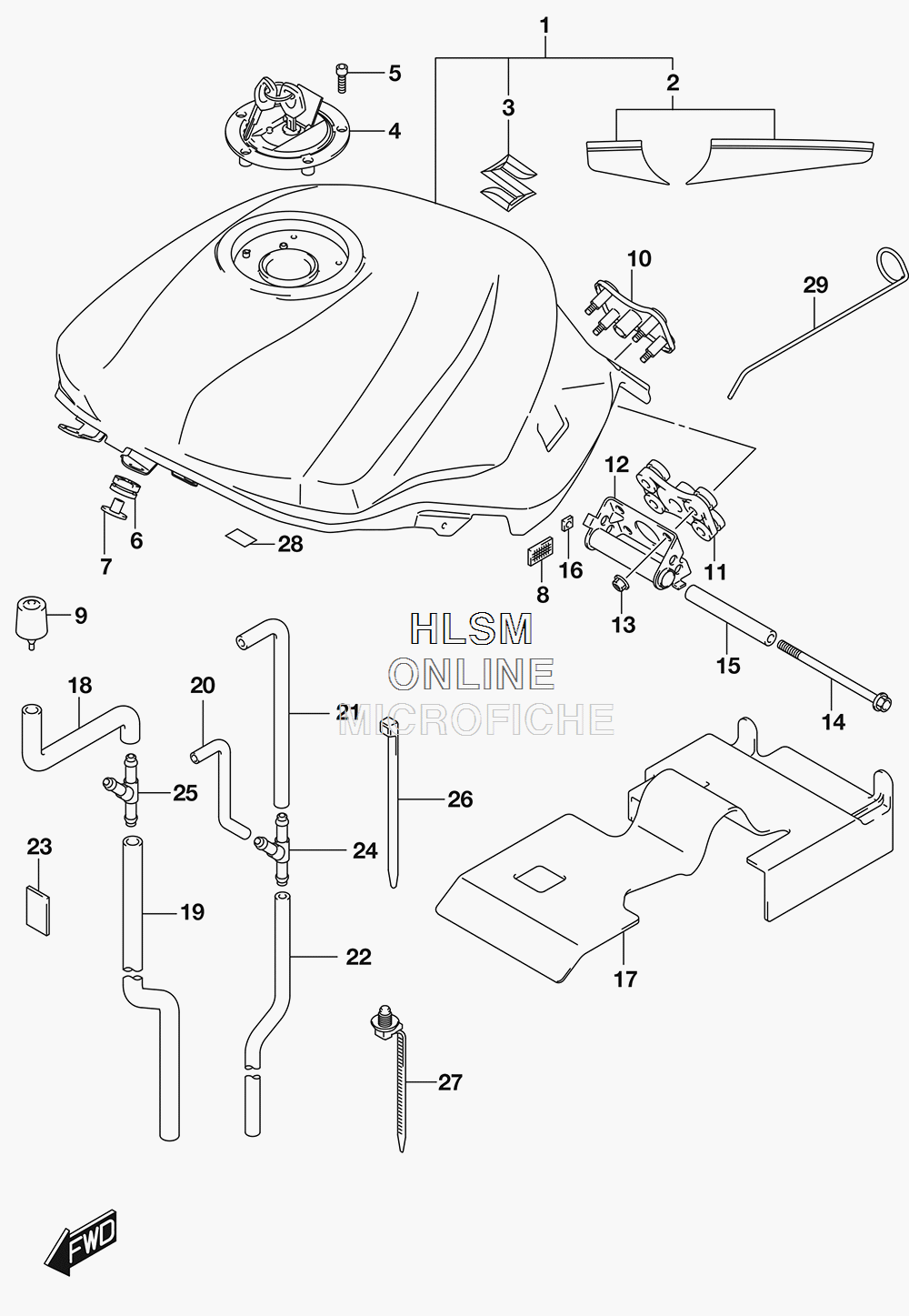

FUEL TANK (CANADA) (YSF - BLUE/ YVZ - RED / YWW - WHITE) для Suzuki SV650A - 2017 года выпуска
-
№АртикулНазвание
-
1-144100-18K30-YSF TANK ASSY, FUEL (YSF - BLUE)TANK ASSY, FUEL (YSF - BLUE)
-
1-244100-18K30-YVZ TANK ASSY, FUEL (YVZ - RED)TANK ASSY, FUEL (YVZ - RED)
-
1-344100-18K30-YWW TANK ASSY, FUEL (YWW - WHITE)TANK ASSY, FUEL (YWW - WHITE)
-
2-168110-18K00-AGQ ...TAPE SET, FUEL TANK (AGQ - BLUE/WHITE FOR REF 1-1 YSF - BLUE)...TAPE SET, FUEL TANK (AGQ - BLUE/WHITE FOR REF 1-1 YSF - BLUE)
-
2-268110-18K00-AGS ...TAPE SET, FUEL TANK (AGS - RED/WHITE FOR REF 1-2 YVZ - RED)...TAPE SET, FUEL TANK (AGS - RED/WHITE FOR REF 1-2 YVZ - RED)
-
2-368110-18K00-AJP ...TAPE SET, FUEL TANK (AJP - BLUE/WHITE REF 1-3 FOR YWW - WHITE)...TAPE SET, FUEL TANK (AJP - BLUE/WHITE REF 1-3 FOR YWW - WHITE)
-
368111-47HA0 ...EMBLEM, S...EMBLEM, S
-
444200-16850 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
544244-11J00 BOLT, FUEL TANK FILLER CAPBOLT, FUEL TANK FILLER CAP
-
644511-18K00 CUSHION, FUEL TANK FRONTCUSHION, FUEL TANK FRONT
-
744512-04K00 SPACER, FUEL TANK FRONTSPACER, FUEL TANK FRONT
-
844572-13G00 FASTENER, SIDEFASTENER, SIDE
-
944542-29G00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
1044570-16G00 BRACKET, REAR UPPERBRACKET, REAR UPPER
-
1144542-16G00 CUSHION, FUEL TANK REARCUSHION, FUEL TANK REAR
-
1244530-44H00 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
1308319-3106A NUTNUT
-
1409103-06060 BOLT (6X100)BOLT (6X100)
-
1544561-35F00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
1608318-1106A NUTNUT
-
1744191-18K00 SHEET, HEAT SHIELD RUBBERSHEET, HEAT SHIELD RUBBER
-
1844423-18K00 HOSE, FUEL TANK DRAIN NO.1HOSE, FUEL TANK DRAIN NO.1
-
1944423-18K10 HOSE, FUEL TANK DRAIN NO.2HOSE, FUEL TANK DRAIN NO.2
-
2044424-15H10 HOSE, FUEL TANK DRAIN NO.3HOSE, FUEL TANK DRAIN NO.3
-
2144424-18K00 HOSE, FUEL TANK BREATHER NO.1HOSE, FUEL TANK BREATHER NO.1
-
2244424-18K10 HOSE, FUEL TANK BREATHER NO.2HOSE, FUEL TANK BREATHER NO.2
-
2344427-18K00 SHIELD, DRAIN HOSE HEATSHIELD, DRAIN HOSE HEAT
-
2409367-06007 3 WAY3 WAY
-
2509367-08010 3 WAY3 WAY
-
2609407-14407 CLAMP (L:145)CLAMP (L:145)
-
2709407-17403 CLAMP (L:170)CLAMP (L:170)
-
2836611-16G00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
2944560-23H00 STAY, FUEL TANK (OPT)STAY, FUEL TANK (OPT)
