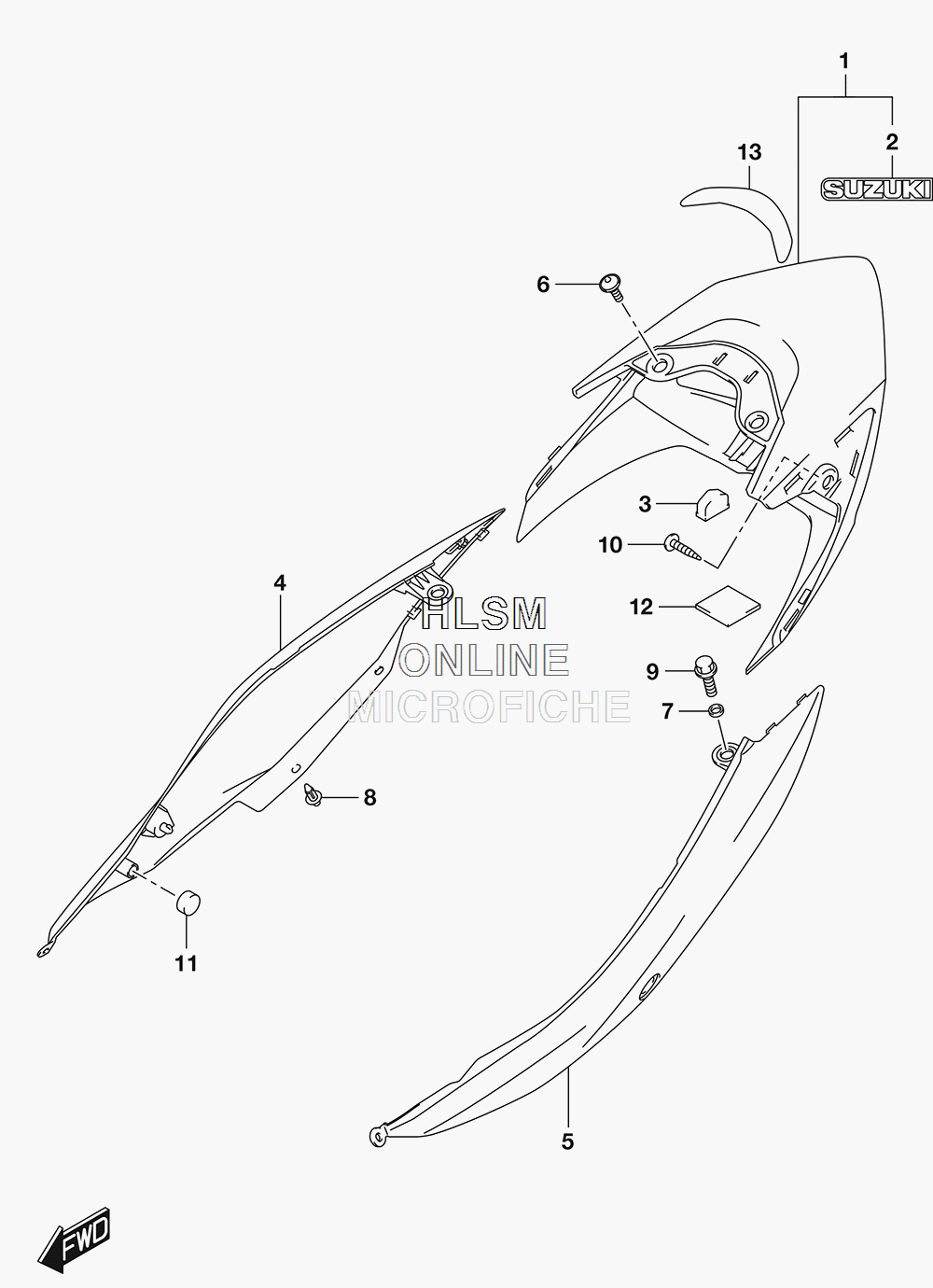

SIDE COVER (BLACK) для Suzuki SV650A - 2017 года выпуска
-
№АртикулНазвание
-
147310-18K00-YKV COVER, FRAME REAR CTR (YKV - BLACK)COVER, FRAME REAR CTR (YKV - BLACK)
-
268171-28H10-CTY ...EMBLEM, "SUZUKI" (CTY - SILVER/BLACK)...EMBLEM, "SUZUKI" (CTY - SILVER/BLACK)
-
347315-18K00 CUSHION, FRAME COVER CTRCUSHION, FRAME COVER CTR
-
447410-18K00-YKV COVER, FRAME REAR (RH) (YKV - BLACK)COVER, FRAME REAR (RH) (YKV - BLACK)
-
547510-18K00-YKV COVER, FRAME REAR (LH) (YKV - BLACK)COVER, FRAME REAR (LH) (YKV - BLACK)
-
609139-05074 BOLT (5X13)BOLT (5X13)
-
709180-08052 SPACER (8.5X12X2.5)SPACER (8.5X12X2.5)
-
809409-06314-5PK CLIP (5PK - BLACK)CLIP (5PK - BLACK)
-
901550-0812A BOLTBOLT
-
1003541-0510A SCREWSCREW
-
1109329-14002 CUSHIONCUSHION
-
1233652-20C00 CUSHIONCUSHION
-
1347312-18K00 TAPE, FRAME COVER REAR CENTERTAPE, FRAME COVER REAR CENTER
