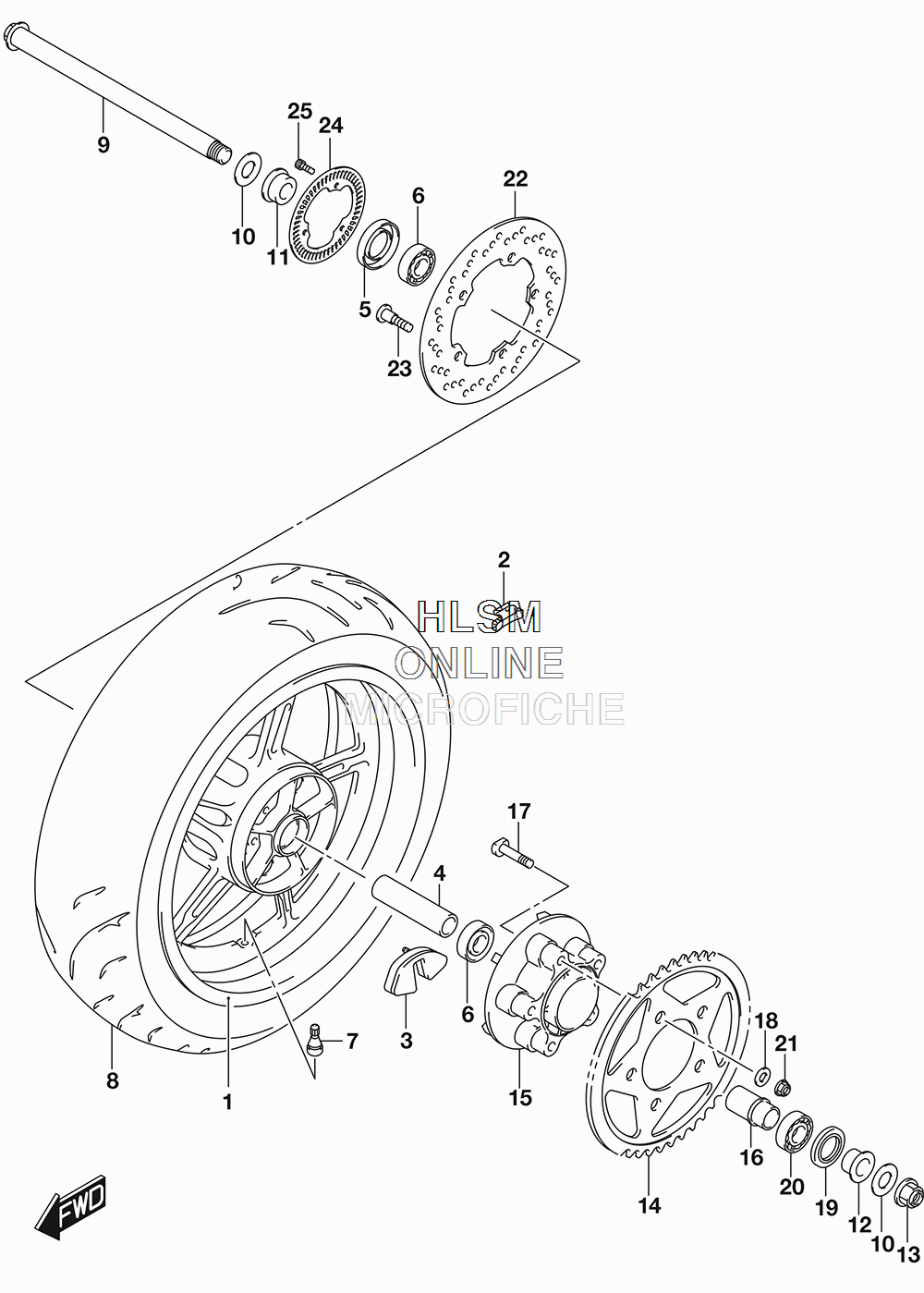

WHEEL - REAR (CANADA) для Suzuki SV650A - 2017 года выпуска
-
№АртикулНазвание
-
1-164111-44H11-YLY WHEEL, REAR (17M/CXMT5.0) (YLY - BLUE FOR YWW - WHITE)WHEEL, REAR (17M/CXMT5.0) (YLY - BLUE FOR YWW - WHITE)
-
1-264111-44H11-019 WHEEL, REAR (17M/CXMT5.0) (019 - BLACK FOR YKV - BLACK)WHEEL, REAR (17M/CXMT5.0) (019 - BLACK FOR YKV - BLACK)
-
1-364111-44H11-019 WHEEL, REAR (17M/CXMT5.0) (019 - BLACK FOR YSF - BLUE)WHEEL, REAR (17M/CXMT5.0) (019 - BLACK FOR YSF - BLUE)
-
1-464111-44H11-019 WHEEL, REAR (17M/CXMT5.0) (019 - BLACK FOR YVZ - RED)WHEEL, REAR (17M/CXMT5.0) (019 - BLACK FOR YVZ - RED)
-
2-155411-22H00 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
2-255412-22H00 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
2-355413-22H00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
-
364651-27A01 ABSORBER, REAR HUB SHOCKABSORBER, REAR HUB SHOCK
-
409180-20062 SPACER (20.5X28X88)SPACER (20.5X28X88)
-
509285-28001 OIL SEAL (28X47X7)OIL SEAL (28X47X7)
-
608123-62047 BEARINGBEARING
-
743130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
865110-44H01 TIRE, REAR 160/60ZR17M/C (69W) (QUALIFIER J DUNLOP)TIRE, REAR 160/60ZR17M/C (69W) (QUALIFIER J DUNLOP)
-
964711-17E40 AXLE, REARAXLE, REAR
-
1064723-44H00 WASHER, REAR AXLEWASHER, REAR AXLE
-
1164741-22D00 SPACER, REAR AXLE (RH)SPACER, REAR AXLE (RH)
-
1264751-44H00 SPACER, REAR AXLE (LH)SPACER, REAR AXLE (LH)
-
1309159-20013 NUTNUT
-
1464511-44H20 SPROCKET, REAR (NT:46)SPROCKET, REAR (NT:46)
-
1564611-19F10 DRUM, REAR SPROCKET MTGDRUM, REAR SPROCKET MTG
-
1664733-27A00 RETAINER, RR HUB BEARINGRETAINER, RR HUB BEARING
-
1709119-10043 BOLT (10X47)BOLT (10X47)
-
1809160-10039 WASHER (10.5X22X2.3)WASHER (10.5X22X2.3)
-
1909285-35001 OIL SEAL (35X62X8)OIL SEAL (35X62X8)
-
2009262-25073 BEARING (25X62X17)BEARING (25X62X17)
-
2108319-3110A NUTNUT
-
2269211-38G00 DISC, REAR BRAKEDISC, REAR BRAKE
-
2309106-08160 BOLT (8X21)BOLT (8X21)
-
2454162-44H00 RING, SPEED SENSOR (50T)RING, SPEED SENSOR (50T)
-
2507130-0512A BOLTBOLT
