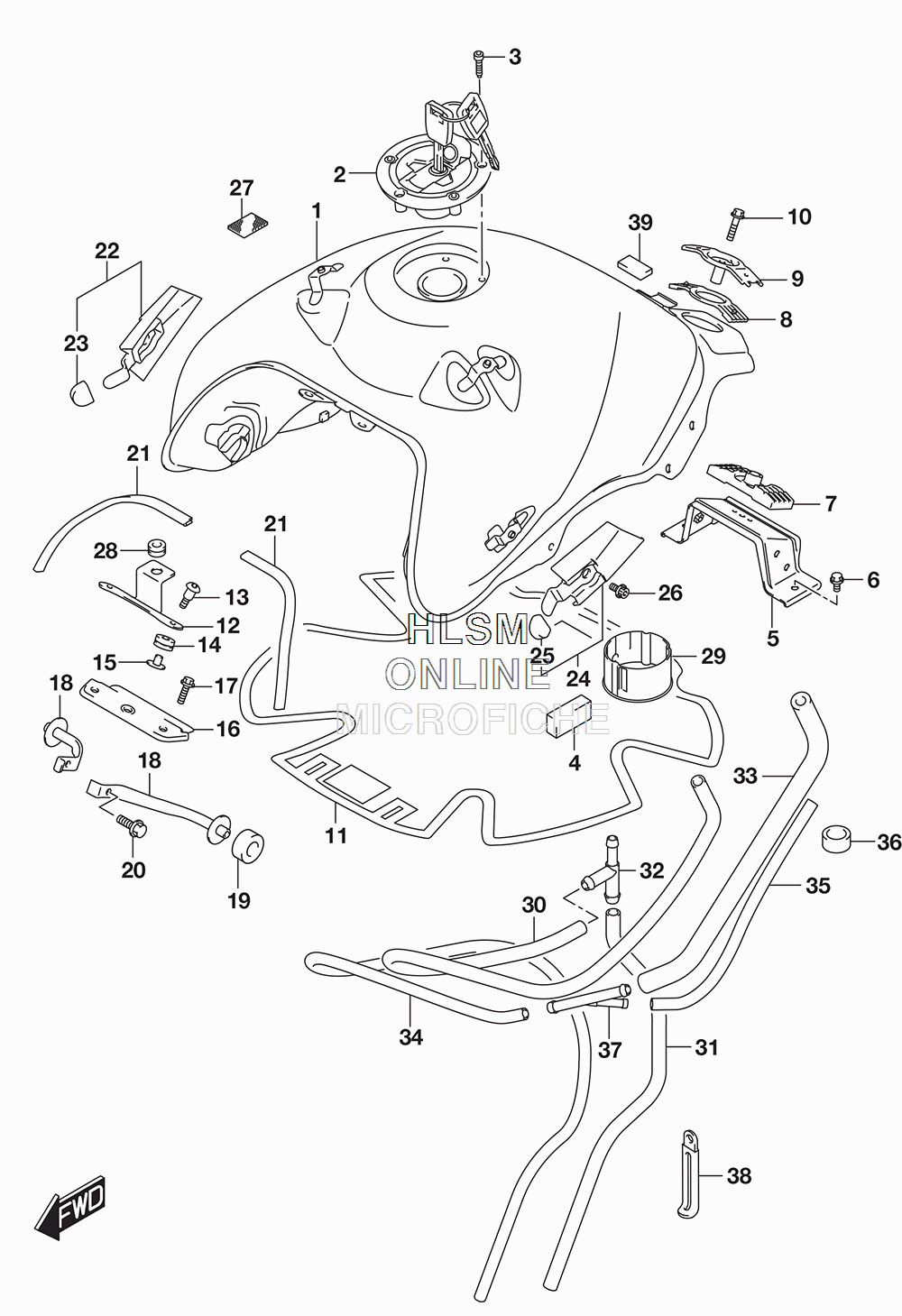

FUEL TANK (YVB - BLACK / YWW - WHITE) для Suzuki V-STORM 650 [DL650A] - 2017 года выпуска
-
№АртикулНазвание
-
1-144100-28K00-YVB TANK ASSY, FUEL (YVB - BLACK)TANK ASSY, FUEL (YVB - BLACK)
-
1-244100-28K00-YWW TANK ASSY, FUEL (YWW - WHITE)TANK ASSY, FUEL (YWW - WHITE)
-
244200-17820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
344244-11J00 BOLT, FUEL TANK FILLER CAPBOLT, FUEL TANK FILLER CAP
-
444541-28K00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
544550-06G10 BRACKET, REAR LOWERBRACKET, REAR LOWER
-
601550-0816A BOLTBOLT
-
744545-06G00 CUSHION, LOWERCUSHION, LOWER
-
844542-06G00 CUSHION, UPPERCUSHION, UPPER
-
944530-06G00 BRACKET, UPPERBRACKET, UPPER
-
1001550-0835A BOLTBOLT
-
1144194-11J00 SHIELD, TANK CENTERSHIELD, TANK CENTER
-
1244154-11J00 BRACKET, FRONT COVERBRACKET, FRONT COVER
-
1309139-06192 SCREW (6X25)SCREW (6X25)
-
1444511-16G00 CUSHION, FUEL TANK FRONTCUSHION, FUEL TANK FRONT
-
1544512-16G00 WASHER, FUEL TANK FRONTWASHER, FUEL TANK FRONT
-
1644520-11J00 BRACKET, FUEL TANK FRONTBRACKET, FUEL TANK FRONT
-
1701550-0620B BOLTBOLT
-
1844560-11J00 BRACKET, FRONT SIDEBRACKET, FRONT SIDE
-
1944542-11J00 CUSHION, FRONT SIDE BRACKETCUSHION, FRONT SIDE BRACKET
-
2001550-0612A BOLTBOLT
-
2168241-11J01 MOLDING, FUEL TANKMOLDING, FUEL TANK
-
2244130-28K00 BRACKET, FUEL TANK COVER RIGHT HANDBRACKET, FUEL TANK COVER RIGHT HAND
-
2309329-18001 ...CUSHION...CUSHION
-
2444140-28K00 BRACKET, FUEL TANK COVER LEFT HANDBRACKET, FUEL TANK COVER LEFT HAND
-
2509329-18001 ...CUSHION...CUSHION
-
2607120-0610A BOLTBOLT
-
2744572-37H00 FASTENER, FUEL TANK COVERFASTENER, FUEL TANK COVER
-
2809320-06504 CUSHIONCUSHION
-
2944121-28K00 VESSEL, FUEL TANK INNERVESSEL, FUEL TANK INNER
-
3044423-28K00 HOSE, FUEL TANK DRAIN NO.1HOSE, FUEL TANK DRAIN NO.1
-
3144423-11J30 HOSE, FUEL TANK DRAIN NO.2HOSE, FUEL TANK DRAIN NO.2
-
3209367-08005 3 WAY3 WAY
-
3344424-28K00 HOSE, FUEL TANK BREATHER NO.1HOSE, FUEL TANK BREATHER NO.1
-
3409352-50823-690 HOSE (5X8.2X690)HOSE (5X8.2X690)
-
3509352-50823-600 HOSE (5X8.2X600) L:600->160HOSE (5X8.2X600) L:600->160
-
3609352-13162-010 HOSE (13.5X16.5X10)HOSE (13.5X16.5X10)
-
3709367-06007 3 WAY3 WAY
-
3809404-06433 CLAMP (L:80)CLAMP (L:80)
-
3945516-01H00 CUSHIONCUSHION
