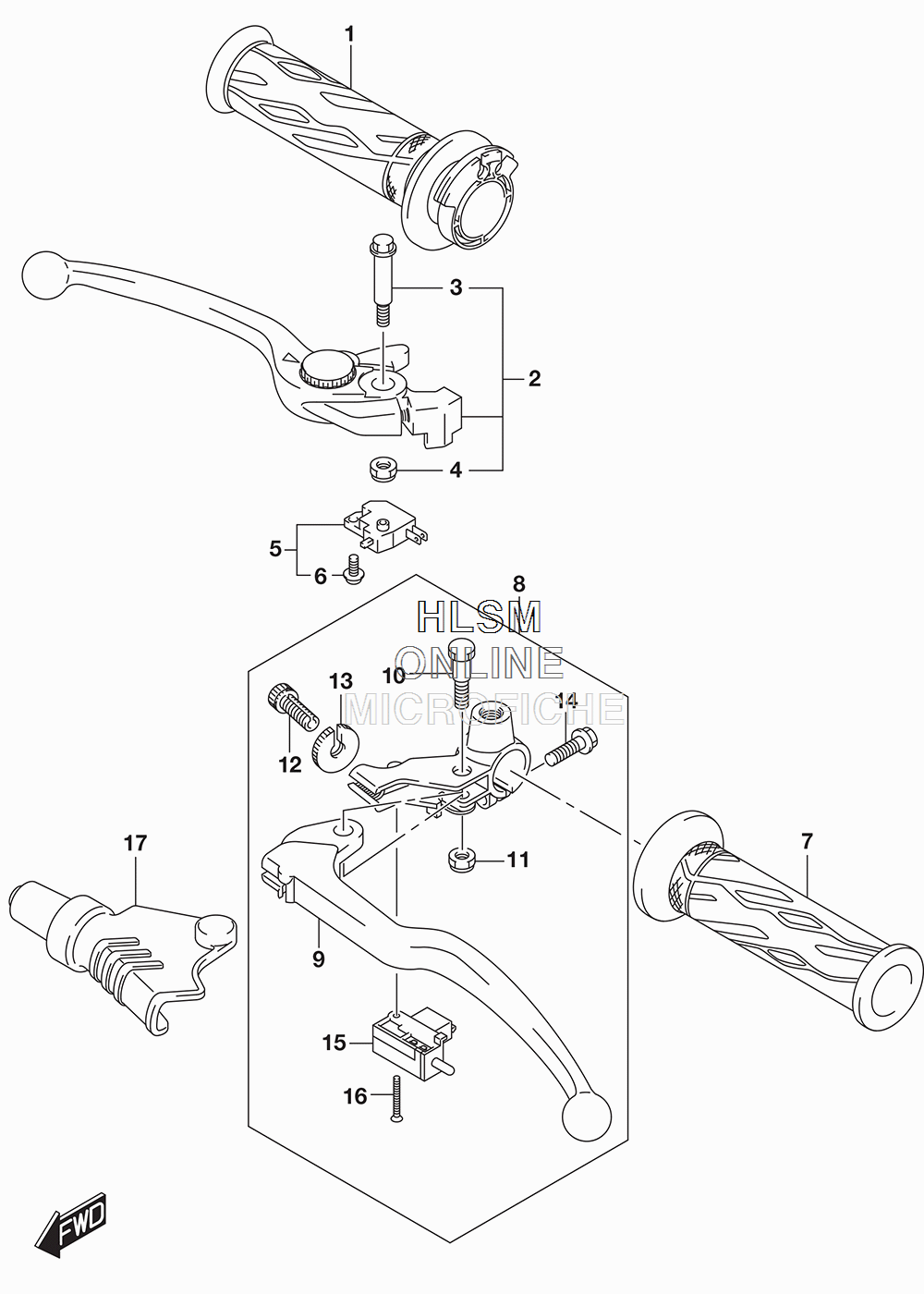

HANDLE LEVER для Suzuki V-STORM 650 [DL650A] - 2017 года выпуска
-
№АртикулНазвание
-
157110-21H02 GRIP, THROTTLEGRIP, THROTTLE
-
257300-44G12 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
357431-17H02 ...BOLT, PIVOT...BOLT, PIVOT
-
408319-2106A ...NUT...NUT
-
557460-14J01 SWITCH ASSY, FRONT BRAKESWITCH ASSY, FRONT BRAKE
-
657465-17C00 ...SCREW...SCREW
-
757211-21H01 GRIP, LEFT HANDGRIP, LEFT HAND
-
857500-25D01 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
957621-40F00 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1057431-45C01 ...BOLT, PIVOT...BOLT, PIVOT
-
1108319-2106A ...NUT...NUT
-
1257441-45C00 ...ADJUSTER WIRE...ADJUSTER WIRE
-
1357442-45C00 ...NUT, LOCK...NUT, LOCK
-
1401547-0620B ...BOLT...BOLT
-
1557560-05A00 ...SWITCH, CLUTCH...SWITCH, CLUTCH
-
1657562-41G01 ...SCREW...SCREW
-
1757661-33E00 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
