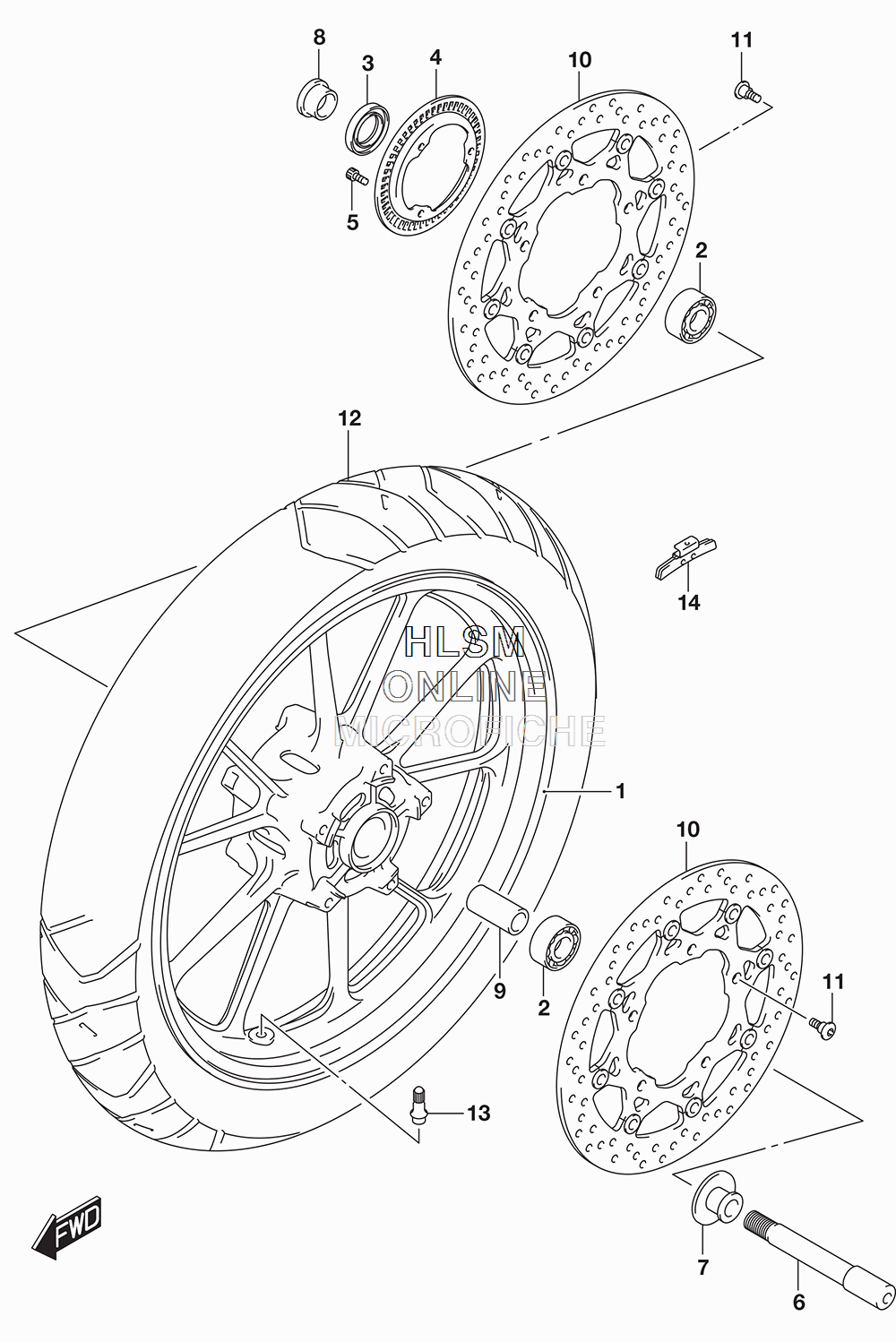

WHEEL - FRONT для Suzuki V-STORM 650 [DL650A] - 2017 года выпуска
-
№АртикулНазвание
-
154111-28K00-019 WHEEL, FRONT (19M/CXMT2.50) (BLACK)WHEEL, FRONT (19M/CXMT2.50) (BLACK)
-
208133-62037 BEARINGBEARING
-
354841-28K00 SEAL, FRONT HUB BRG DUSTSEAL, FRONT HUB BRG DUST
-
454162-28K00 RING, SPEED SENSOR FR (50T)RING, SPEED SENSOR FR (50T)
-
507130-0512A BOLTBOLT
-
654711-08F10 AXLE, FRONTAXLE, FRONT
-
754750-31F00 SPACER, FRONT AXLE LEFT HANDSPACER, FRONT AXLE LEFT HAND
-
854751-10G01 SPACER, FRONT AXLE RIGHT HANDSPACER, FRONT AXLE RIGHT HAND
-
909180-17067 SPACER (17.5X25X88)SPACER (17.5X25X88)
-
1059210-44G11 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1109106-08160 BOLT (8X21)BOLT (8X21)
-
1255110-06G11 TIRE, FRONT (110/80R19M/C 59H TRAIL WING 101 RADIAL J BRIDGESTONETIRE, FRONT (110/80R19M/C 59H TRAIL WING 101 RADIAL J BRIDGESTONE
-
1343130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
14-155411-22H00 BALANCER, WHEEL NO.1 10GBALANCER, WHEEL NO.1 10G
-
14-255412-22H00 BALANCER, WHEEL NO.2 20GBALANCER, WHEEL NO.2 20G
-
14-355413-22H00 BALANCER, WHEEL NO.3 30GBALANCER, WHEEL NO.3 30G
