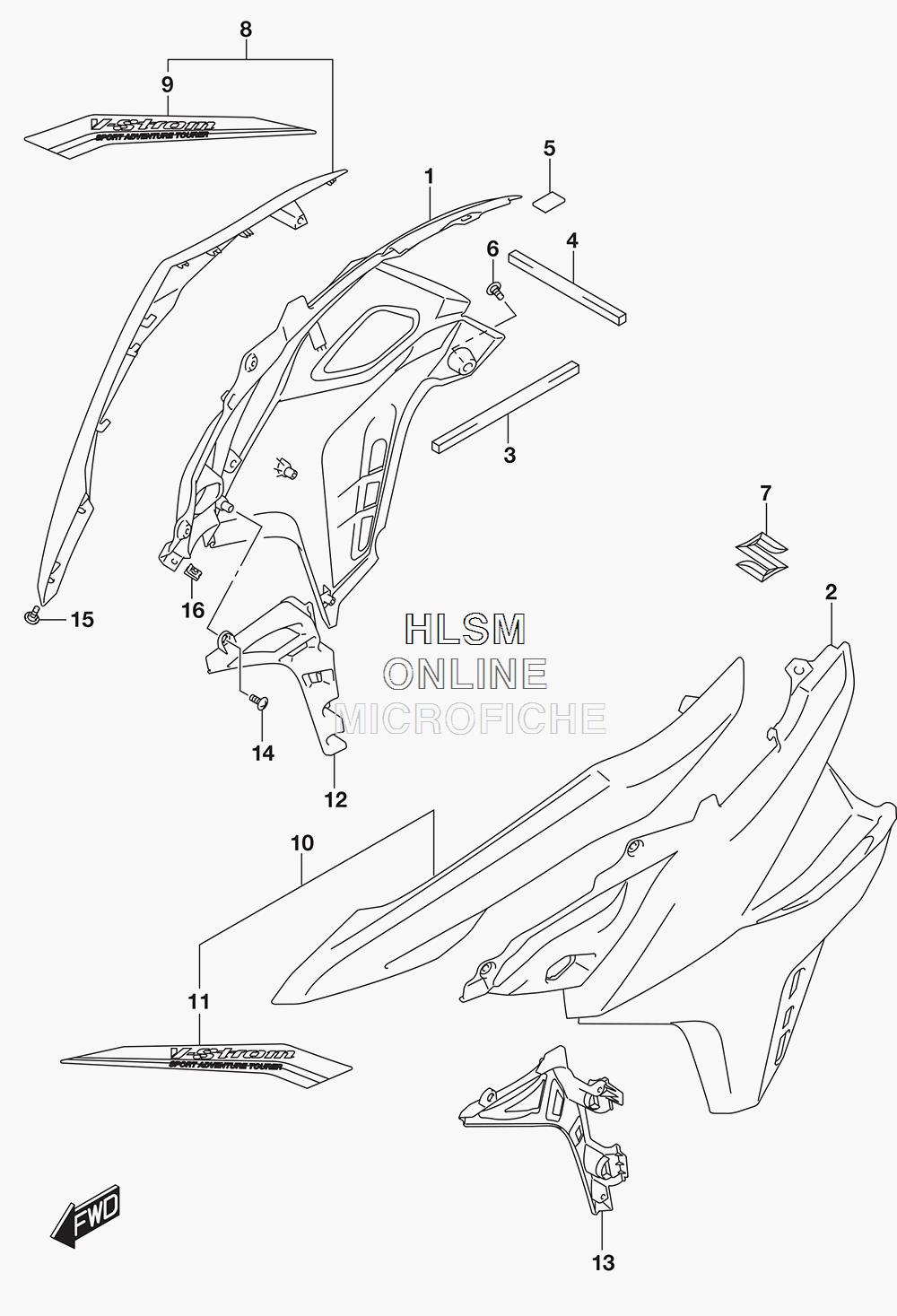

SIDE COWLING (FOR YVB - BLACK / YWW - WHITE) для Suzuki V-STORM 650 [DL650A] - 2017 года выпуска
-
№АртикулНазвание
-
194413-28K00 COVER, SIDE COWL RIGHT HANDCOVER, SIDE COWL RIGHT HAND
-
294414-28K00 COVER, SIDE COWL LEFT HANDCOVER, SIDE COWL LEFT HAND
-
344176-31J00 CUSHION, SIDE COVER LOWERCUSHION, SIDE COVER LOWER
-
444178-31J00 CUSHION, SIDE COVER CTRCUSHION, SIDE COVER CTR
-
544612-13600 CUSHION, SIDE COVER UPPER CUT AS REQUIREDCUSHION, SIDE COVER UPPER CUT AS REQUIRED
-
647913-31J00 SCREW, COVER SIDESCREW, COVER SIDE
-
768111-47HA0 EMBLEM, SEMBLEM, S
-
8-194420-28K10-YMD COVER, SIDE COWL RIGHT HAND (YMD - SILVER FOR YWW - WHITE)COVER, SIDE COWL RIGHT HAND (YMD - SILVER FOR YWW - WHITE)
-
8-294420-28K10-5KX COVER, SIDE COWL RIGHT HAND (5KX - SILVER FOR YVB - BLACK)COVER, SIDE COWL RIGHT HAND (5KX - SILVER FOR YVB - BLACK)
-
9-168275-28K10-BHF ...TAPE, COVER SIDE RIGHT HAND...TAPE, COVER SIDE RIGHT HAND
-
9-268275-28K10-BHG ...TAPE, COVER SIDE RIGHT HAND...TAPE, COVER SIDE RIGHT HAND
-
10-194430-28K10-YMD COVER, SIDE COWL LEFT HAND (YMD - SILVER FOR YWW - WHITE)COVER, SIDE COWL LEFT HAND (YMD - SILVER FOR YWW - WHITE)
-
10-294430-28K10-5KX COVER, SIDE COWL LEFT HAND (5KX - SILVER FOR YVB - BLACK)COVER, SIDE COWL LEFT HAND (5KX - SILVER FOR YVB - BLACK)
-
11-168285-28K10-BHF ...TAPE, COVER SIDE LEFT HAND...TAPE, COVER SIDE LEFT HAND
-
11-268285-28K10-BHG ...TAPE, COVER SIDE LEFT HAND...TAPE, COVER SIDE LEFT HAND
-
1294461-28K00 COVER, SIDE COWL INNER RIGHT HANDCOVER, SIDE COWL INNER RIGHT HAND
-
1394462-28K00 COVER, SIDE COWL INNER LEFT HANDCOVER, SIDE COWL INNER LEFT HAND
-
1403541-0512A SCREWSCREW
-
1509139-05091 SCREWSCREW
-
1609148-05052 NUTNUT
