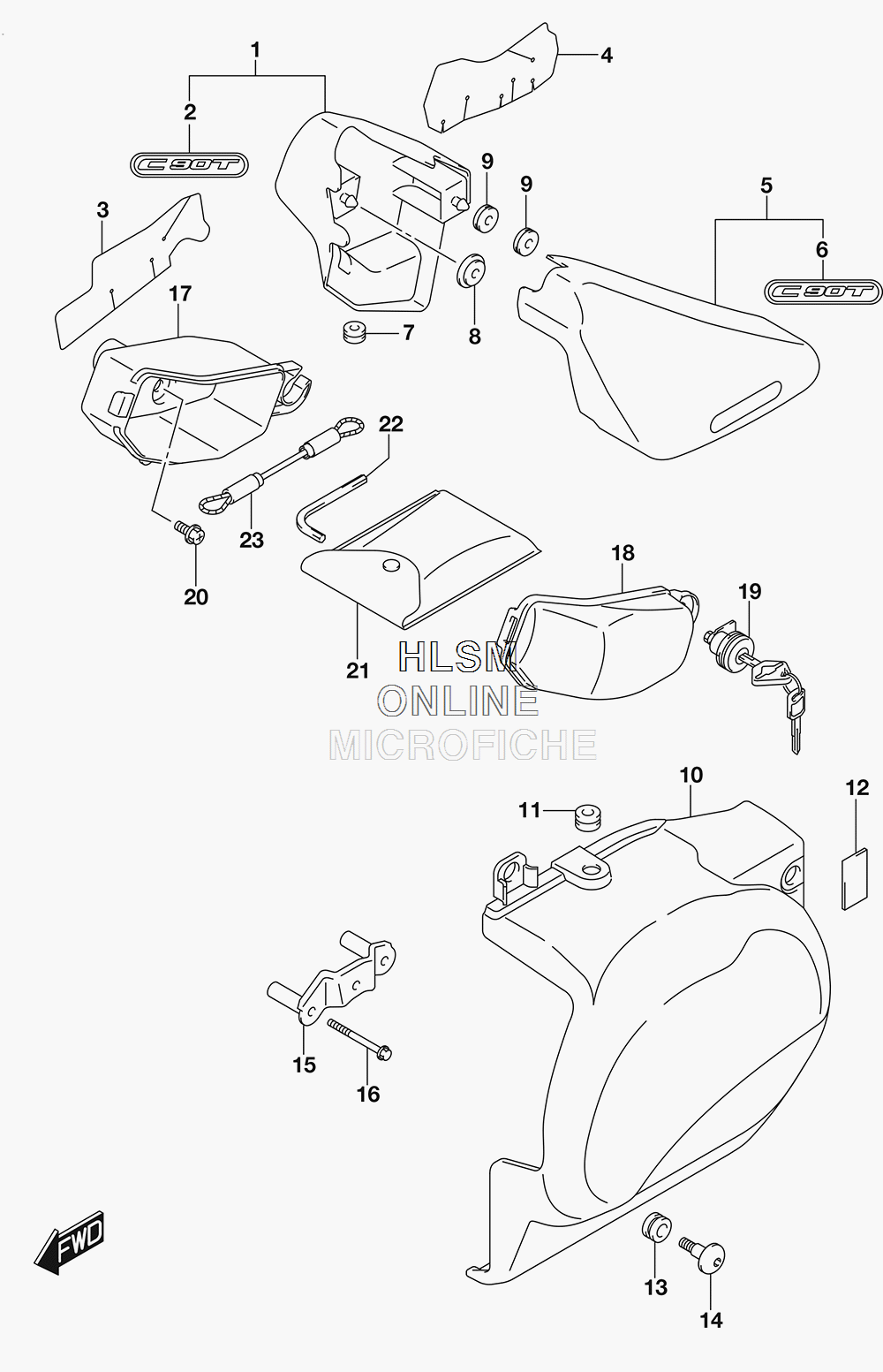

FRAME COVER (CANADA) для Suzuki VL1500BT C90BT B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
147110-06JA0-YVB COVER, SIDE (RH) (YVB - BLACK)COVER, SIDE (RH) (YVB - BLACK)
-
268131-06JA0-YES ...EMBLEM, "C90T" (YES - SILVER)...EMBLEM, "C90T" (YES - SILVER)
-
347166-06J10 SHIELD, SIDE COVER (RH)SHIELD, SIDE COVER (RH)
-
447166-06J20 SHIELD, SIDE COVER (RH)SHIELD, SIDE COVER (RH)
-
547210-06JA0-YVB COVER, SIDE (LH) (YVB - BLACK)COVER, SIDE (LH) (YVB - BLACK)
-
668131-06JA0-YES ...EMBLEM, "C90T" (YES - SILVER)...EMBLEM, "C90T" (YES - SILVER)
-
747167-06J00 CUSHION, SIDE COVER LOWER (RH)CUSHION, SIDE COVER LOWER (RH)
-
847191-06J00 CUSHION, SIDE COVER FRONTCUSHION, SIDE COVER FRONT
-
909320-08018 CUSHION (REAR)CUSHION (REAR)
-
1047231-40H20 COVER, LOWER (LH)COVER, LOWER (LH)
-
1109320-06504 CUSHION (LH)CUSHION (LH)
-
1251827-01A00 CUSHION (LH)CUSHION (LH)
-
1309320-09016 CUSHION (LH)CUSHION (LH)
-
1409139-06190 BOLT (6X20) (LH)BOLT (6X20) (LH)
-
1547250-06J00 BRACKET, LOWER COVER (LH)BRACKET, LOWER COVER (LH)
-
1601547-0650A BOLTBOLT
-
1792211-06J00 BODY, LUGGAGE BOXBODY, LUGGAGE BOX
-
1892212-06J00 LIDLID
-
1995700-07860 LOCK SET, LUGGAGE BOXLOCK SET, LUGGAGE BOX
-
2009111-06107 BOLT (6X12)BOLT (6X12)
-
2109800-21056 TOOL ASSYTOOL ASSY
-
2209816-00050 SPANNER, 6 HEXAGONSPANNER, 6 HEXAGON
-
2395740-06G00 CABLE, HELMET LOCKCABLE, HELMET LOCK
