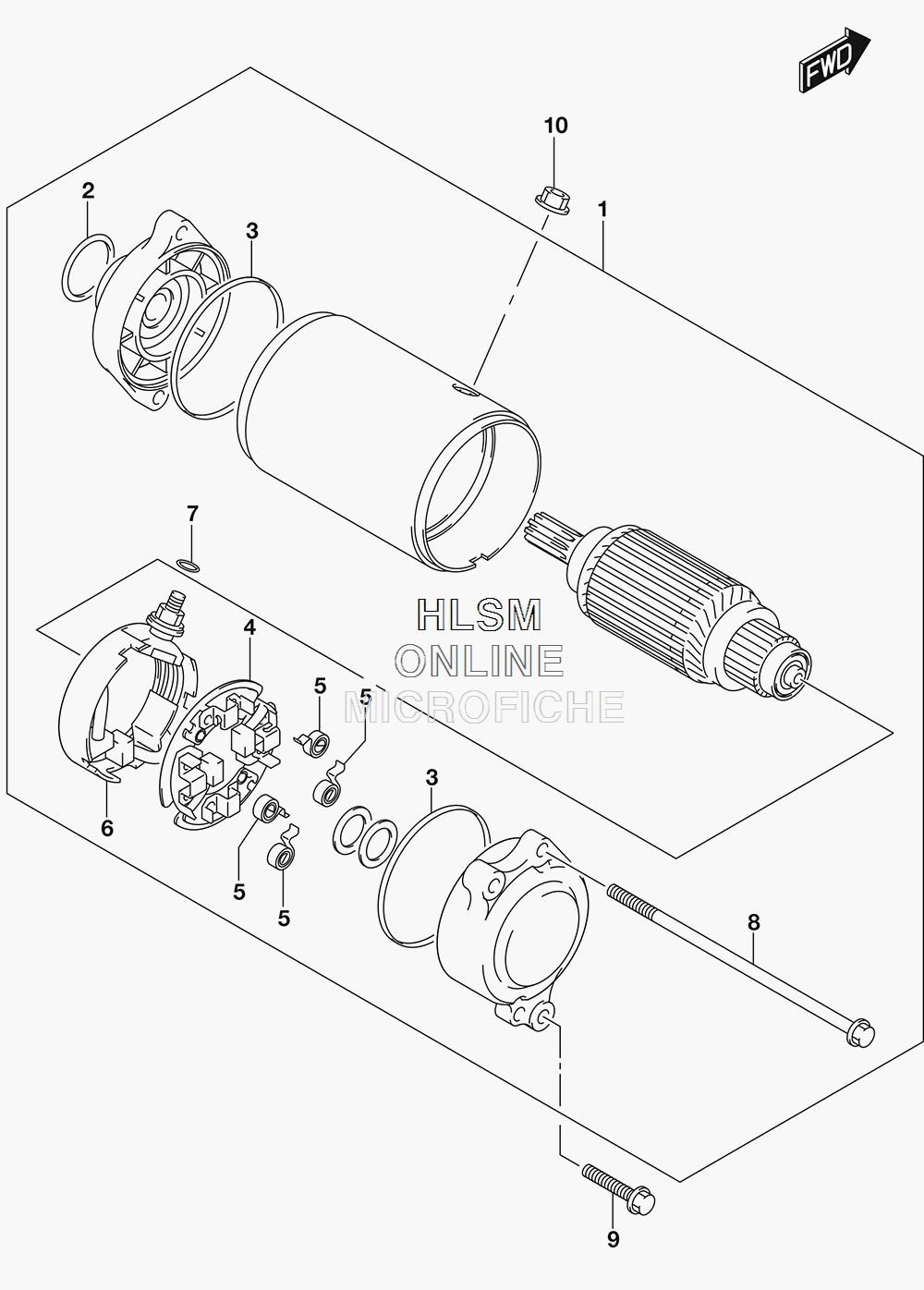

STARTING MOTOR для Suzuki VL1500BT C90BT B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
131100-40H01 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231156-98E00 ...O RING (D:3.1,ID:24.4)...O RING (D:3.1,ID:24.4)
-
331264-31300 ...O RING...O RING
-
431132-38B00 ...HOLDER SET, BRUSH...HOLDER SET, BRUSH
-
531135-38B00 ...SPRING, BRUSH...SPRING, BRUSH
-
631130-38B00 ...TERMINAL SET, BRUSH...TERMINAL SET, BRUSH
-
731143-49040 ...O RING...O RING
-
831281-24B10 ...BOLT...BOLT
-
901547-0625A BOLTBOLT
-
1008361-3506A NUTNUT
Все узлы модели:
- 2ND AIR
- ACCESSORIES
- AIR CLEANER (CANADA)
- BATTERY
- BATTERY HOLDER
- BRAKE - FRONT CALIPER (CANADA)
- BRAKE - FRONT MASTER CYLINDER (CANADA)
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAM CHAIN ASSY. W/ TENSIONER
- CAMSHAFT W/ VALVES
- CARBURETOR - THROTTLE BODY (CANADA)
- CLUTCH
- CRANKCASE (CANADA)
- CRANKCASE COVER (CANADA)
- CRANKSHAFT W/ PISTON
- CYLINDER (CANADA)
- CYLINDER HEAD (FRONT) (CANADA)
- CYLINDER HEAD (REAR) (CANADA)
- ELECTRICAL - STARTING (CANADA)
- ELECTRICAL - WIRING HARNESS (CANADA)
- FENDER - FRONT (CANADA)
- FENDER - REAR (CANADA)
- FOOTREST (CANADA)
- FRAME
- FRAME - REAR (CANADA)
- FRAME COVER (CANADA)
- FRAME HEAD COVER
- FUEL PUMP
- FUEL TANK (CANADA)
- FUEL TANK FRONT COVER (CANADA)
- GASKET SET
- GEAR SHIFTING
- HANDLE LEVER (CANADA)
- HANDLE SWITCH (CANADA)
- HANDLEBAR (CANADA)
- HEADLAMP
- HEADLAMP HOUSING (CANADA)
- LABEL (CANADA)
- LOCK SET (CANADA)
- MAGNETO
- MUFFLER (CANADA)
- OIL PUMP
- PROPELLER SHAFT/FINAL DRIVE GEAR (CANADA)
- RADIATOR
- RADIATOR HOSE (CANADA)
- REAR COMBINATION LAMP (CANADA)
- REAR CUSHION LEVER (CANADA)
- REAR SWINGARM
- SEAT
- SECONDARY DRIVE GEAR
- SIDE BAG (CANADA)
- SPEEDOMETER (CANADA)
- STAND (CANADA)
- STARTER CLUTCH
- • STARTING MOTOR
- STEERING STEM (CANADA)
- SUSPENSION - FRONT FORK DAMPER (CANADA)
- TRANSMISSION
- TURNSIGNAL LAMP (FRONT) (CANADA)
- TURNSIGNAL LAMP (REAR) (CANADA)
- WATER PUMP
- WHEEL - FRONT (CANADA)
- WHEEL - REAR (CANADA)
- WINDSCREEN (CANADA)
