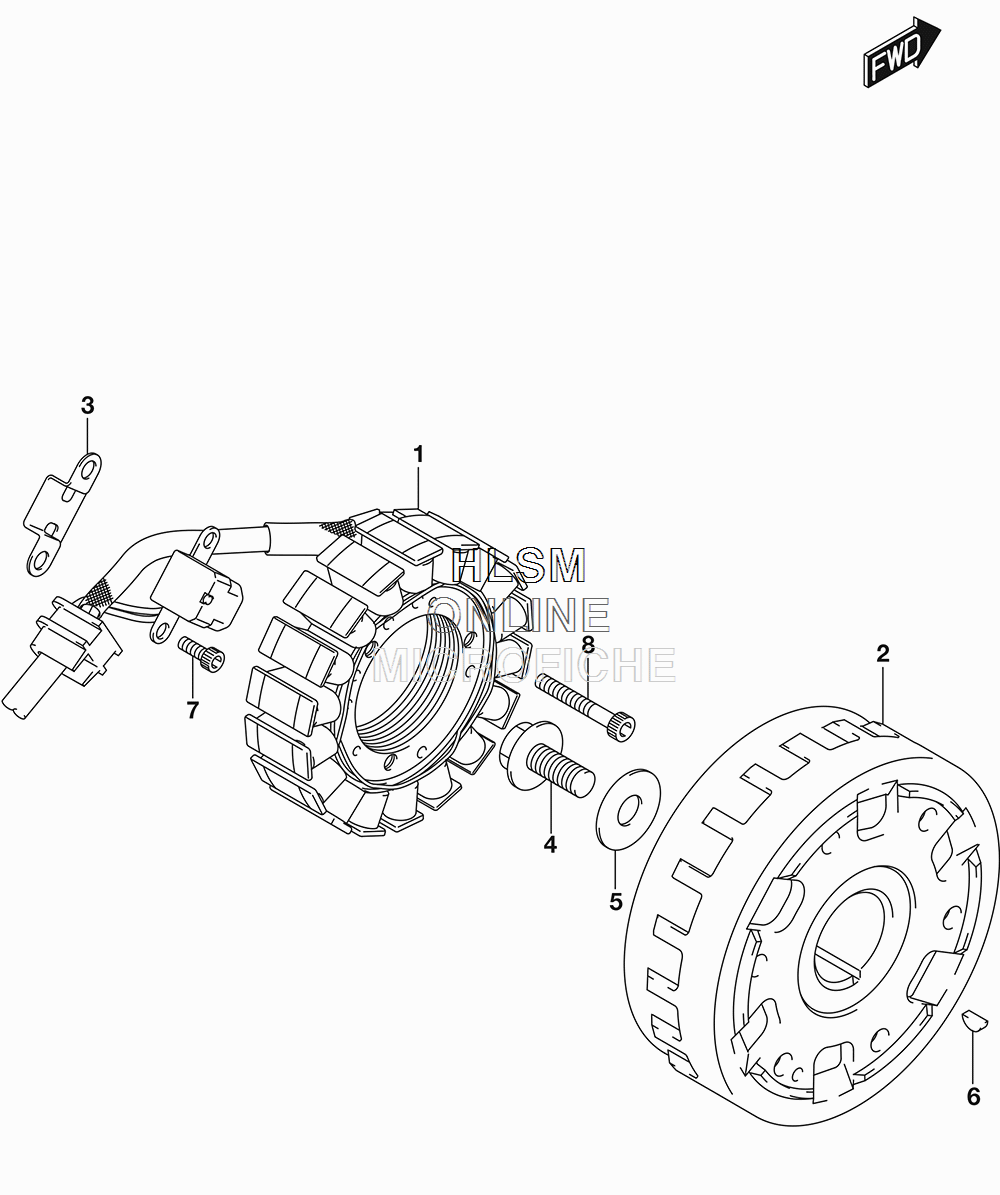

MAGNETO для Suzuki VL1500BT C90BT B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
132101-40H00 STATOR ASSY, MAGNETOSTATOR ASSY, MAGNETO
-
232102-40H10 ROTOR ASSY, MAGNETOROTOR ASSY, MAGNETO
-
332371-40H00 CLAMP, MAGNETO LEADCLAMP, MAGNETO LEAD
-
409103-14001 BOLT (14X43)BOLT (14X43)
-
509160-14021 WASHER (14X29X4)WASHER (14X29X4)
-
608341-31059 KEYKEY
-
707130-0512A BOLTBOLT
-
807130-0635A BOLTBOLT
