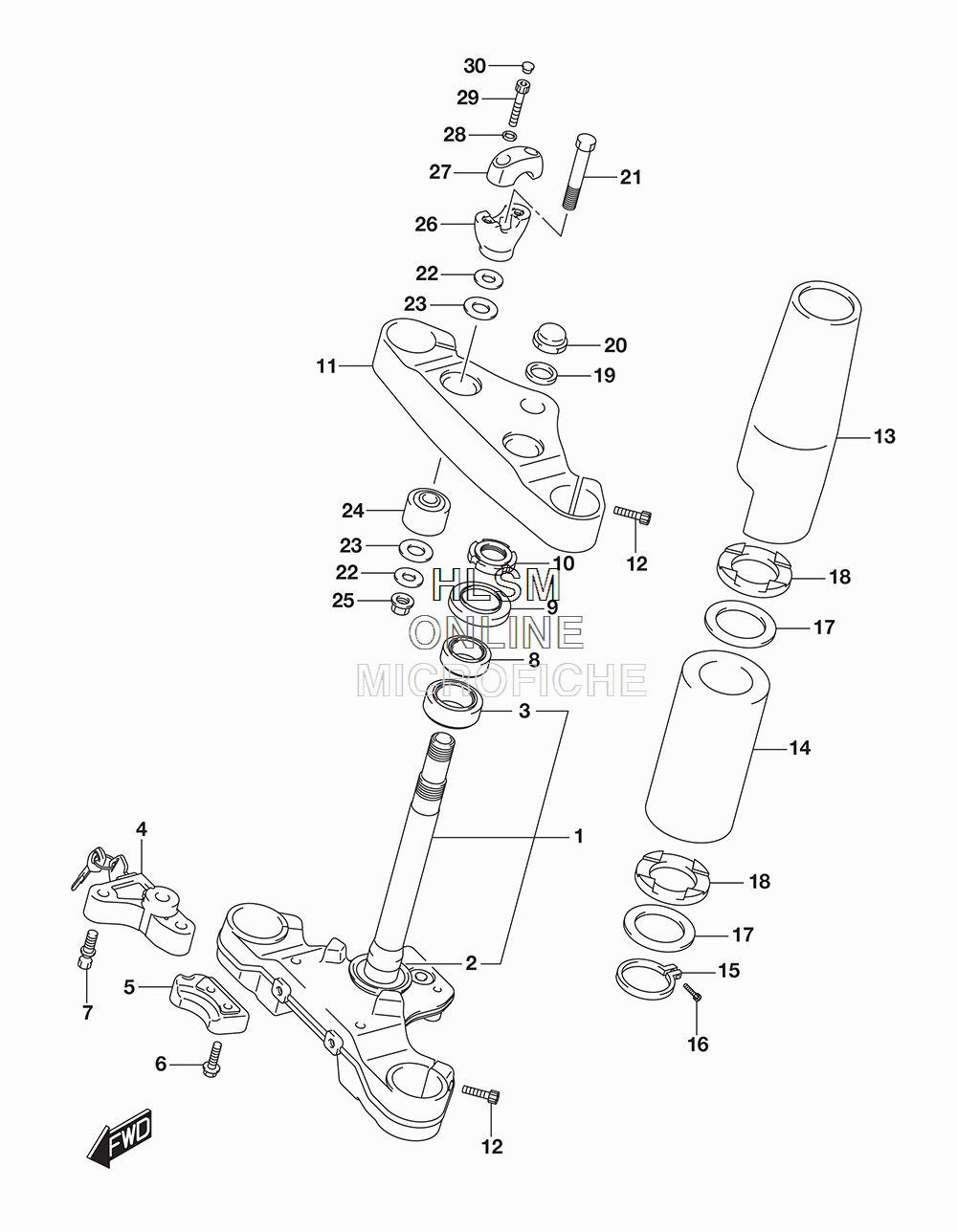

STEERING STEM (CANADA) для Suzuki VL1500BT C90BT B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
151410-06J00 STEM, STEERINGSTEM, STEERING
-
251644-12C00 ...SEAL, STEERING LOWER...SEAL, STEERING LOWER
-
309265-30020 ...BEARING (30X55X17)...BEARING (30X55X17)
-
451900-22820 LOCK SET, STEERINGLOCK SET, STEERING
-
551921-40H00 BRACKET, STEERING LOCKBRACKET, STEERING LOCK
-
609103-08197 BOLT (8X30)BOLT (8X30)
-
751925-48G00 SCREW, STEERING LOCKSCREW, STEERING LOCK
-
809265-25038 BEARING (25X47X15)BEARING (25X47X15)
-
951643-40502 SEAL, STEERING UPPER DUSTSEAL, STEERING UPPER DUST
-
1051631-31F00 NUT, STEERING STEMNUT, STEERING STEM
-
1151311-06J20 BRACKET, UPPERBRACKET, UPPER
-
1251321-10F00 BOLT, BRACKETBOLT, BRACKET
-
1351531-06J20 COVER, UPPERCOVER, UPPER
-
1451464-06J20 CASE, UNDERCASE, UNDER
-
1551465-06J00 SPACERSPACER
-
1651466-10F00 BOLTBOLT
-
1751467-06J00 WASHERWASHER
-
1851468-06J00 SEATSEAT
-
1951356-24B01 WASHERWASHER
-
2051353-38A01 NUTNUT
-
2151226-10F70 BOLTBOLT
-
2251354-41F20 WASHERWASHER
-
2356245-41F20 SEAT, RUBBERSEAT, RUBBER
-
2456240-41F20 DAMPER, RUBBERDAMPER, RUBBER
-
2556246-41F20 NUTNUT
-
2656221-06J20 HOLDER, HANDLE, LOWERHOLDER, HANDLE, LOWER
-
2756211-06J20 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
2809164-08015 WASHERWASHER
-
2951321-10F00 BOLT, HANDLE HOLDERBOLT, HANDLE HOLDER
-
3009250-06011 CAP (OD:11)CAP (OD:11)
