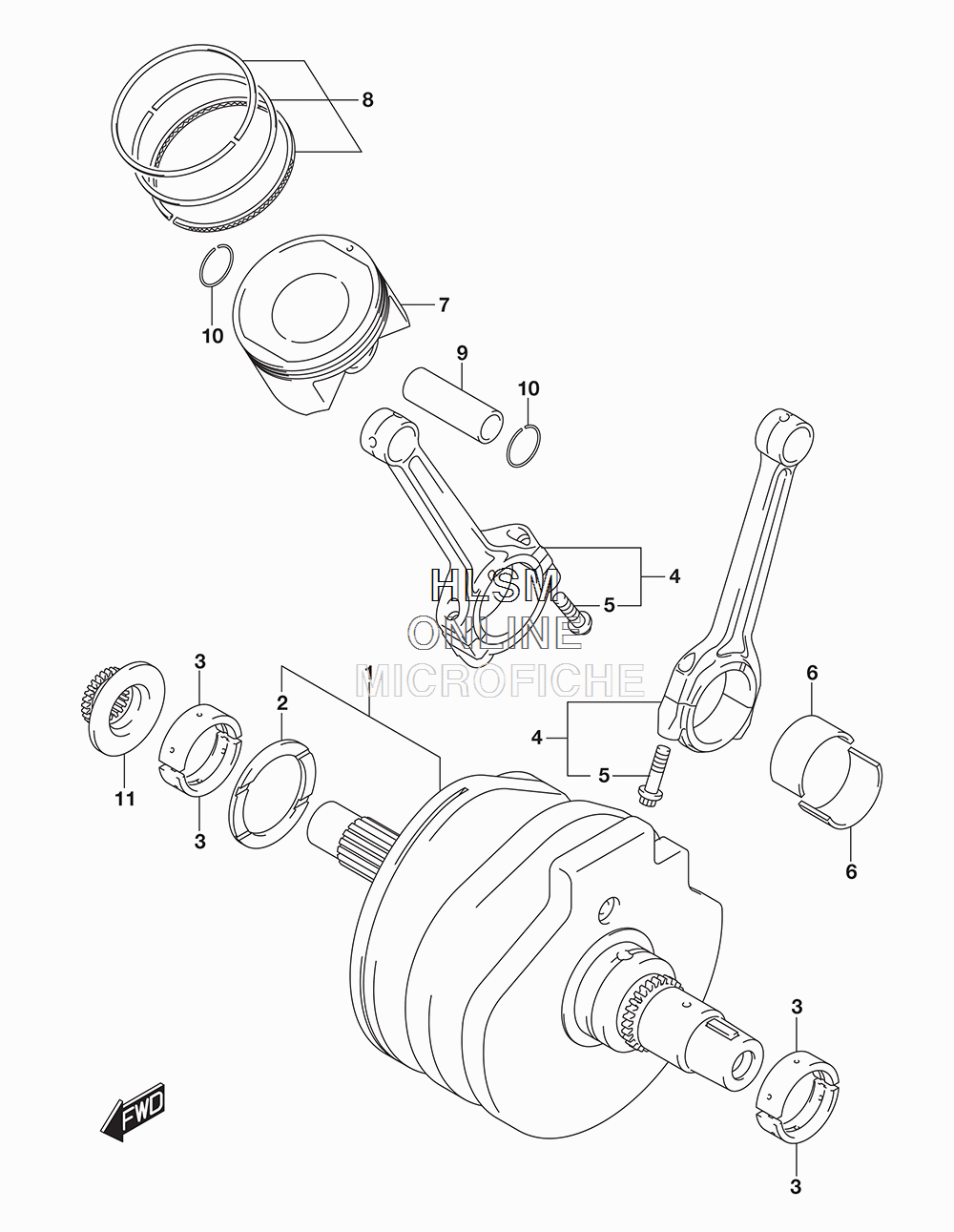

CRANKSHAFT W/ PISTON для Suzuki VL1500T C90T B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
112000-40851 CRANKSHAFT SETCRANKSHAFT SET
-
2-112228-40H00-0A0 ...BEARING, CRANK THRUST (T:1.925-1.950)...BEARING, CRANK THRUST (T:1.925-1.950)
-
2-212228-40H00-0B0 ...BEARING, CRANK THRUST (T:1.950-1.975)...BEARING, CRANK THRUST (T:1.950-1.975)
-
2-312228-40H00-0C0 ...BEARING, CRANK THRUST (T:1.975-2.000)...BEARING, CRANK THRUST (T:1.975-2.000)
-
2-412228-40H00-0D0 ...BEARING, CRANK THRUST (T:2.000-2.025)...BEARING, CRANK THRUST (T:2.000-2.025)
-
2-512228-40H00-0E0 ...BEARING, CRANK THRUST (T:2.025-2.050)...BEARING, CRANK THRUST (T:2.025-2.050)
-
2-612228-40H00-0F0 ...BEARING, CRANK THRUST (T:2.050-2.075)...BEARING, CRANK THRUST (T:2.050-2.075)
-
3-112229-40H00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
3-212229-40H00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
3-312229-40H00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
412160-40H00 CONNROD ASSYCONNROD ASSY
-
512163-06G00 ...BOLT...BOLT
-
6-112164-40H00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
6-212164-40H00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
6-312164-40H00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
6-412164-40H00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
712111-40H10-0F0 PISTONPISTON
-
812140-40H01 RING SET, PISTONRING SET, PISTON
-
912151-02F10 PIN, PISTONPIN, PISTON
-
1009381-22002 CIRCLIPCIRCLIP
-
1112731-40H00 SPROCKET, CAM CHAIN DRIVE (NT:23)SPROCKET, CAM CHAIN DRIVE (NT:23)
