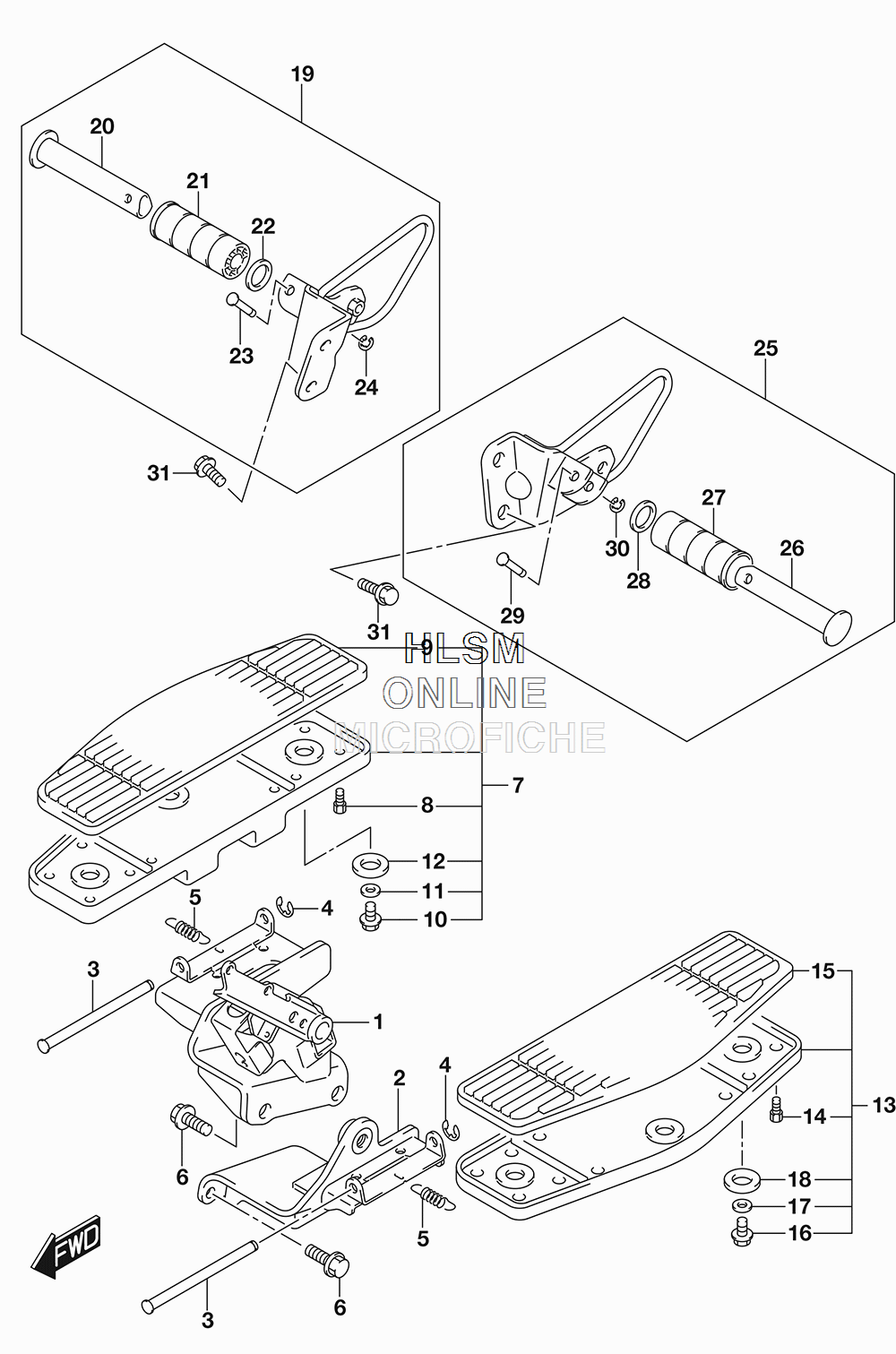

FOOTREST (EXCEPT CALIF.) для Suzuki VL1500T C90T B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
143510-06J00 BRACKET, FRONT FOOTREST (RH)BRACKET, FRONT FOOTREST (RH)
-
243520-06J01 BRACKET, FRONT FOOTREST (LH)BRACKET, FRONT FOOTREST (LH)
-
343539-10F00 PINPIN
-
408332-1106A E RINGE RING
-
509443-11033 SPRINGSPRING
-
601550-1025B BOLTBOLT
-
743501-10F11 FOOTREST ASSY, FRONT (RH)FOOTREST ASSY, FRONT (RH)
-
843576-07D01 ...BOLT, BANK SENSOR...BOLT, BANK SENSOR
-
943550-10F10 ...RUBBER, FRONT FOOTREST...RUBBER, FRONT FOOTREST
-
1001550-0610A ...BOLT...BOLT
-
1109160-06158 ...WASHER (6.5X22X1.6)...WASHER (6.5X22X1.6)
-
1209320-10036 ...CUSHION...CUSHION
-
1343502-10F11 FOOTREST ASSY, FRONT (LH)FOOTREST ASSY, FRONT (LH)
-
1443576-07D01 ...BOLT, BANK SENSOR...BOLT, BANK SENSOR
-
1543550-10F10 ...RUBBER, FRONT FOOTREST...RUBBER, FRONT FOOTREST
-
1601550-0610A ...BOLT...BOLT
-
1709160-06158 ...WASHER (6.5X22X1.6)...WASHER (6.5X22X1.6)
-
1809320-10036 ...CUSHION...CUSHION
-
1943600-06J10 FOOTREST ASSY, PILLION (RH)FOOTREST ASSY, PILLION (RH)
-
2043610-39G10 ...BAR...BAR
-
2143612-39G00 ...RUBBER...RUBBER
-
2209160-19024 ...WASHER (19.5X32X2)...WASHER (19.5X32X2)
-
2309208-06007 ...PIN...PIN
-
2408332-1104A ...E RING...E RING
-
2543700-06J20 FOOTREST ASSY, PILLION (LH)FOOTREST ASSY, PILLION (LH)
-
2643610-39G10 ...BAR...BAR
-
2743612-39G00 ...RUBBER...RUBBER
-
2809160-19024 ...WASHER (19.5X32X2)...WASHER (19.5X32X2)
-
2909208-06007 ...PIN...PIN
-
3008332-1104A ...E RING...E RING
-
3109103-08412 BOLT (8X16)BOLT (8X16)
