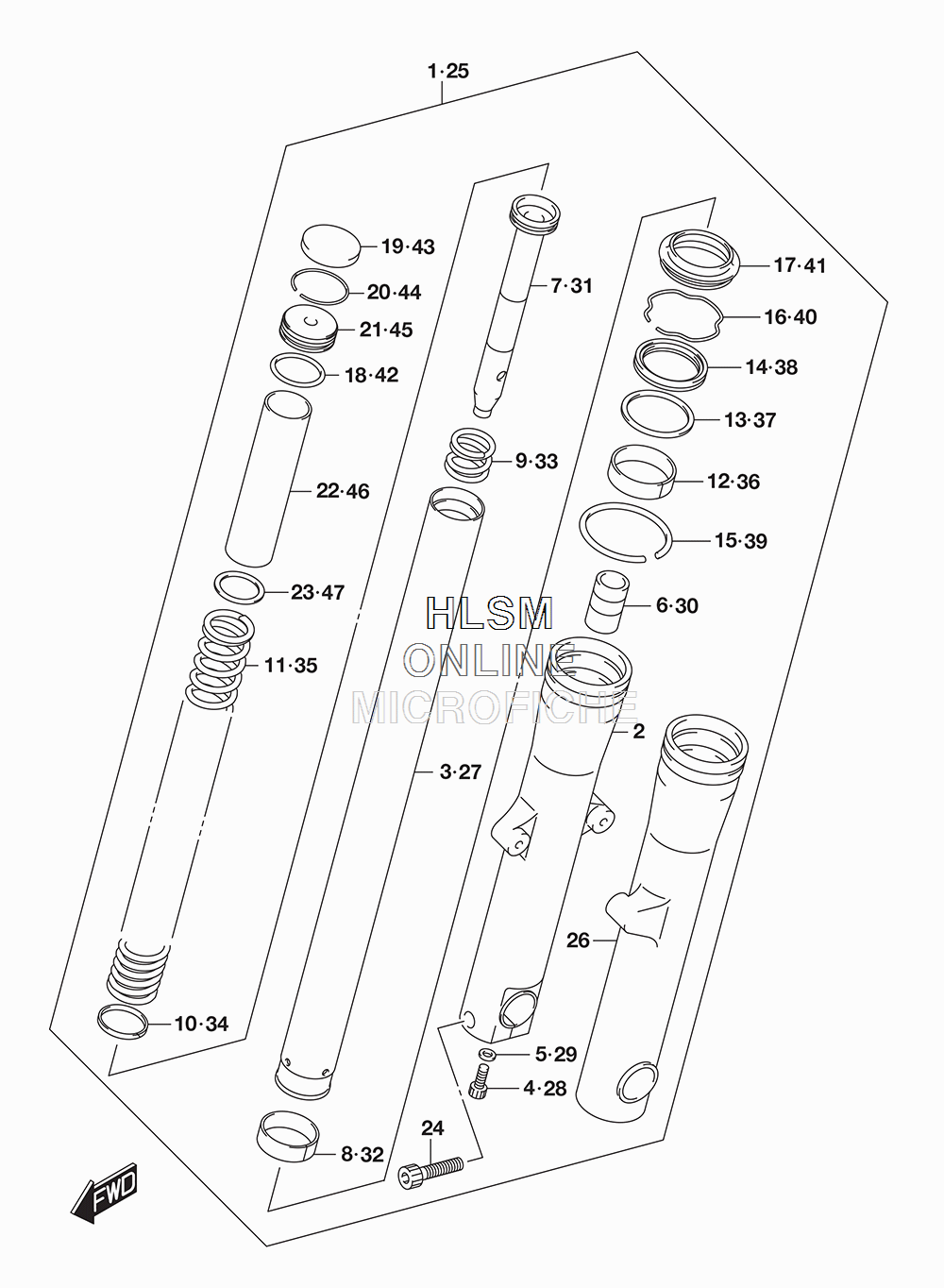

SUSPENSION - FRONT FORK DAMPER (EXCEPT CALIF.) для Suzuki VL1500T C90T B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
151103-06J40 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251131-06J40 ...TUBE, OUTER (RH)...TUBE, OUTER (RH)
-
351110-06J00 ...TUBE, INNER...TUBE, INNER
-
451147-06F10 ...BOLT, CENTER...BOLT, CENTER
-
551148-31030 ...GASKET...GASKET
-
651195-27G00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
751146-06J00 ...CYLINDER...CYLINDER
-
851121-06J00 ...BUSH, SLIDE...BUSH, SLIDE
-
951177-12C00 ...SPRING, REBOUND...SPRING, REBOUND
-
1051196-06J00 ...RING, PISTON...RING, PISTON
-
1151171-06J00 ...SPRING...SPRING
-
1251167-06J00 ...GUIDE, BUSH...GUIDE, BUSH
-
1351158-27C40 ...SPACER, SEAL...SPACER, SEAL
-
1451153-06J00 ...OIL SEAL...OIL SEAL
-
1551469-06J00 ...GUIDE, CASE...GUIDE, CASE
-
1651156-27C40 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
1751571-06J00 ...DUST SEAL...DUST SEAL
-
1851117-06J00 ...O RING...O RING
-
1951189-06J20 ...CAP, FORK...CAP, FORK
-
2051169-06J00 ...STOPPER, RING...STOPPER, RING
-
2151172-06J00 ...SEAT, SPRING...SEAT, SPRING
-
2251176-12C00 ...SPACER, SPRING...SPACER, SPRING
-
2351186-17C00 ...SEAT, SPRING LOWER...SEAT, SPRING LOWER
-
2451328-22H00 ...BOLT (RH)...BOLT (RH)
-
2551104-06J40 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
2651141-06J40 ...TUBE, OUTER (LH)...TUBE, OUTER (LH)
-
2751110-06J00 ...TUBE, INNER...TUBE, INNER
-
2851147-06F10 ...BOLT, CENTER...BOLT, CENTER
-
2951148-31030 ...GASKET...GASKET
-
3051195-27G00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
3151146-06J00 ...CYLINDER...CYLINDER
-
3251121-06J00 ...BUSH, SLIDE...BUSH, SLIDE
-
3351177-12C00 ...SPRING, REBOUND...SPRING, REBOUND
-
3451196-06J00 ...RING, PISTON...RING, PISTON
-
3551171-06J00 ...SPRING...SPRING
-
3651167-06J00 ...GUIDE, BUSH...GUIDE, BUSH
-
3751158-27C40 ...SPACER, SEAL...SPACER, SEAL
-
3851153-06J00 ...OIL SEAL...OIL SEAL
-
3951469-06J00 ...GUIDE, CASE...GUIDE, CASE
-
4051156-27C40 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
4151571-06J00 ...DUST SEAL...DUST SEAL
-
4251117-06J00 ...O RING...O RING
-
4351189-06J20 ...CAP, FORK...CAP, FORK
-
4451169-06J00 ...STOPPER, RING...STOPPER, RING
-
4551172-06J00 ...SEAT, SPRING...SEAT, SPRING
-
4651176-12C00 ...SPACER, SPRING...SPACER, SPRING
-
4751186-17C00 ...SEAT, SPRING LOWER...SEAT, SPRING LOWER
