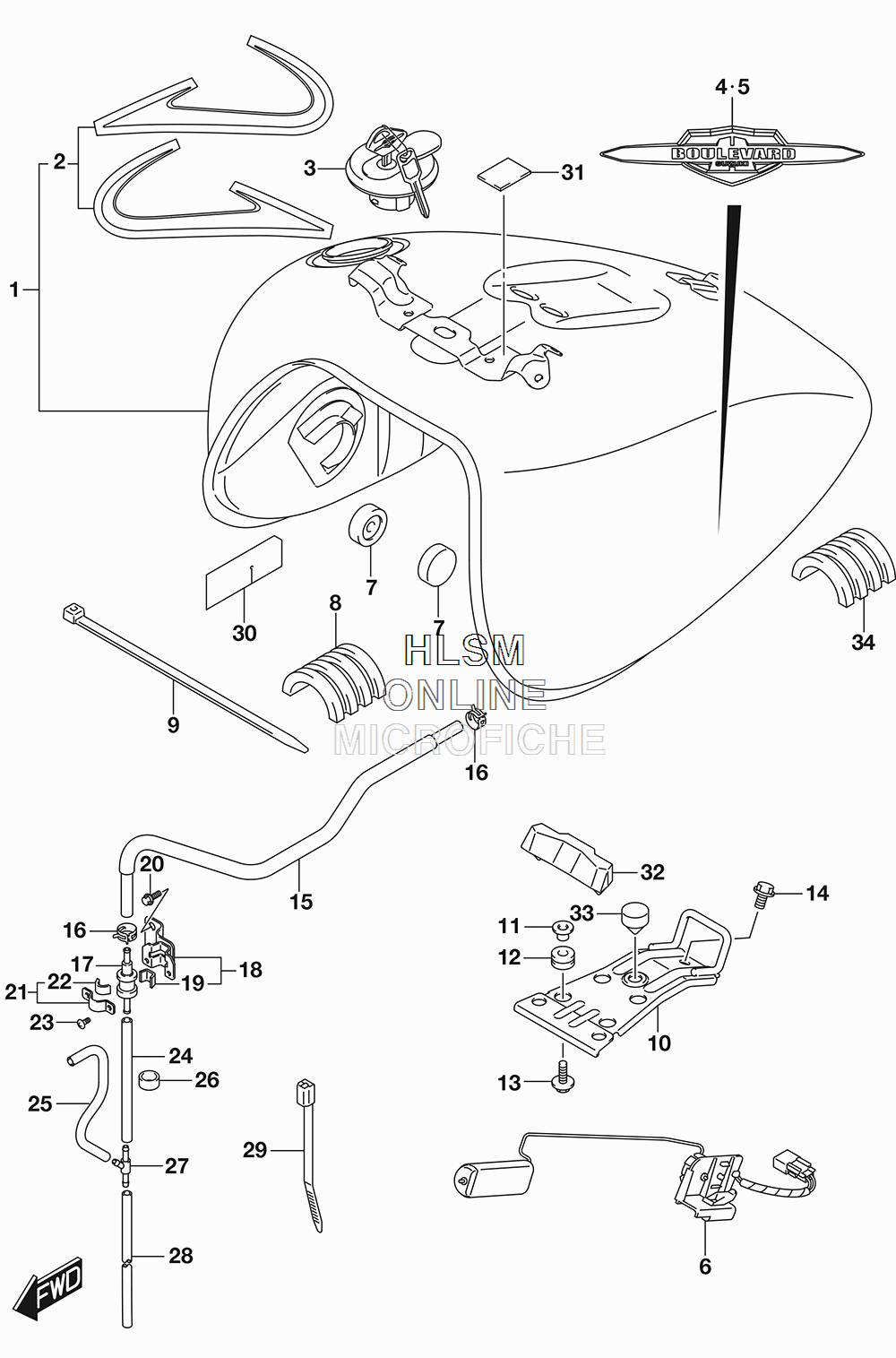

FUEL TANK (EXCEPT CALIF.) для Suzuki VL1500T C90T B.O.S.S. - 2017 года выпуска
-
№АртикулНазвание
-
144100-06J70-YVB TANK ASSY, FUEL (YVB - BLACK)TANK ASSY, FUEL (YVB - BLACK)
-
268110-06JA0-BBN ...TAPE SET FUEL TANK (BBN - RED/GOLD/SILVER/BLACK)...TAPE SET FUEL TANK (BBN - RED/GOLD/SILVER/BLACK)
-
344200-41840 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
468111-06J00 EMBLEM (RH)EMBLEM (RH)
-
568121-06J00 EMBLEM (LH)EMBLEM (LH)
-
634810-40H00 GUAGE ASSY, FUEL TANKGUAGE ASSY, FUEL TANK
-
709329-10007 CUSHIONCUSHION
-
844541-04F00 CUSHION, TANK SIDECUSHION, TANK SIDE
-
909407-30402 CLAMP (L:300)CLAMP (L:300)
-
1044530-06J00 BRACKET, REARBRACKET, REAR
-
1109169-06062 WASHERWASHER
-
1209320-08001 CUSHIONCUSHION
-
1309116-06192 BOLT (6X20)BOLT (6X20)
-
1401550-0812A BOLTBOLT
-
1544434-40H00 HOSE, TANK & VALVEHOSE, TANK & VALVE
-
1609401-11413 CLIPCLIP
-
1744240-38A00 VALVE, BREATHERVALVE, BREATHER
-
1844880-40H00 BRACKET, BREATHER VALVEBRACKET, BREATHER VALVE
-
1944894-24A00 ...CUSHION...CUSHION
-
2001547-0610A BOLTBOLT
-
2144892-24A00 PLATE, BREATHER VALVEPLATE, BREATHER VALVE
-
2244894-24A00 ...CUSHION...CUSHION
-
2302142-0408A SCREWSCREW
-
2409352-50903-600 HOSE (5X9X600) (L:600->100)HOSE (5X9X600) (L:600->100)
-
2544424-15H10 HOSEHOSE
-
2609352-13162-010 HOSE (13.5X16.5X10)HOSE (13.5X16.5X10)
-
2709367-06007 3 WAY3 WAY
-
2809352-50823-600 HOSE (5X8.2X600) (L:600->250)HOSE (5X8.2X600) (L:600->250)
-
2909407-19401 CLAMP (L:190)CLAMP (L:190)
-
3044283-06J00 PROTECTORPROTECTOR
-
3163191-25C00 CUSHION (CUT AS REQUIRED)CUSHION (CUT AS REQUIRED)
-
3244545-06J00 CUSHIONCUSHION
-
3309321-10011 CUSHIONCUSHION
-
3444541-06J00 CUSHION, TANK SIDE REARCUSHION, TANK SIDE REAR
