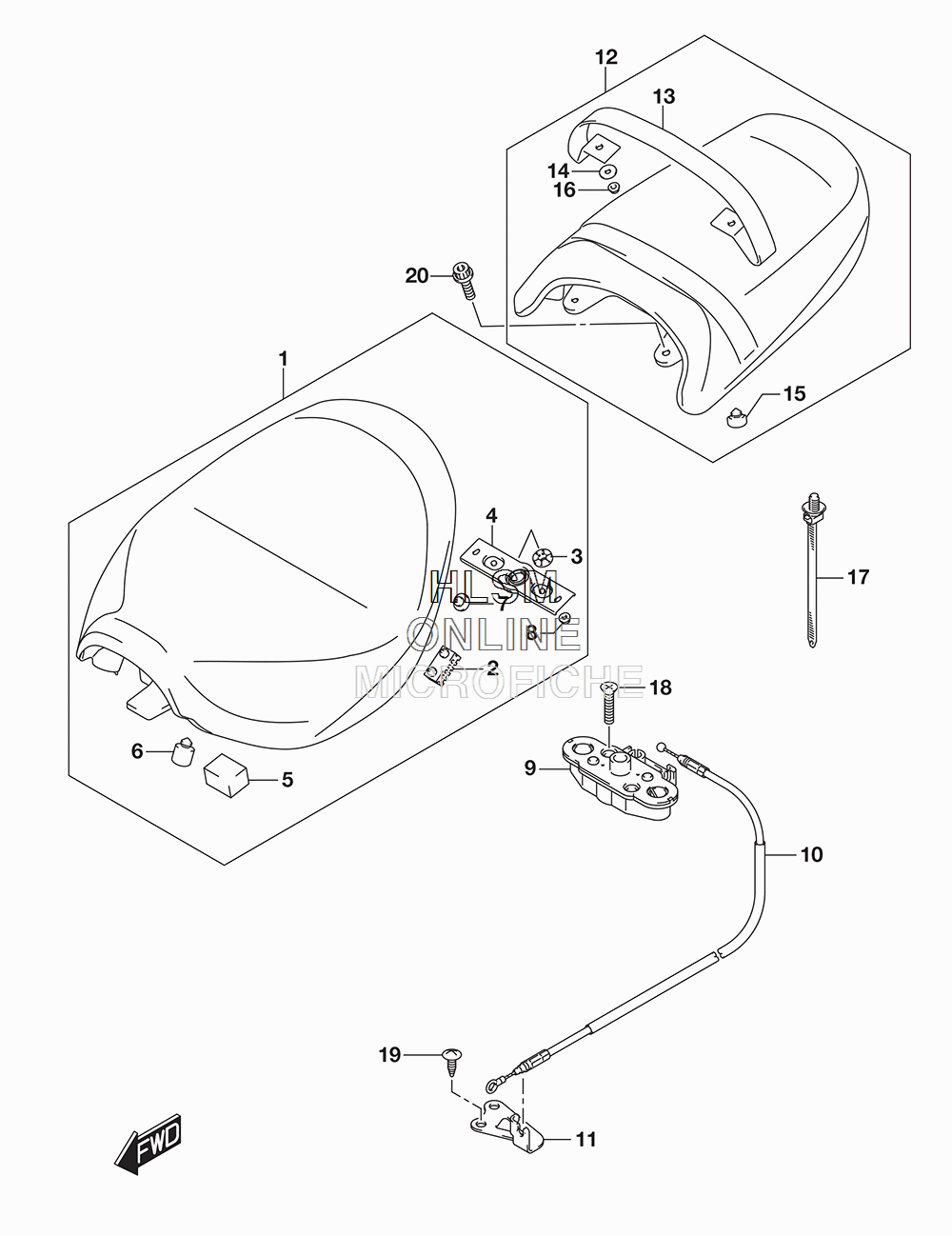

SEAT для Suzuki VZ800 M50 - 2017 года выпуска
-
№АртикулНазвание
-
145100-39G31-48H SEAT ASSY (48H - BLACK)SEAT ASSY (48H - BLACK)
-
245149-31300 ...CUSHION, SEAT MOUNT...CUSHION, SEAT MOUNT
-
345213-13601 ...CUSHION, SEAT LOCK STRIKER...CUSHION, SEAT LOCK STRIKER
-
445215-26F00 ...STRIKER, SEAT LOCK...STRIKER, SEAT LOCK
-
545255-15500 ...CUSHION, BATTERY...CUSHION, BATTERY
-
609321-10034 ...CUSHION...CUSHION
-
709329-10001 ...CUSHION...CUSHION
-
808316-1006A ...NUT...NUT
-
945220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1045280-39G00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1145288-39G00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
1245300-39G30-48H SEAT ASSY, PILLION (48H - BLACK)SEAT ASSY, PILLION (48H - BLACK)
-
1345380-39G30-48H ...BAND, SEAT PILLION (48H - BLACK)...BAND, SEAT PILLION (48H - BLACK)
-
1409160-06088 ...WASHER (6.5X20X1.6)...WASHER (6.5X20X1.6)
-
1509321-10002 ...CUSHION (11.5X22X20)...CUSHION (11.5X22X20)
-
1608316-1006A ...NUT...NUT
-
1709407-17403 CLAMP (L:154)CLAMP (L:154)
-
1802122-0630A SCREWSCREW
-
1903541-0516A SCREWSCREW
-
2007120-0616A BOLTBOLT
