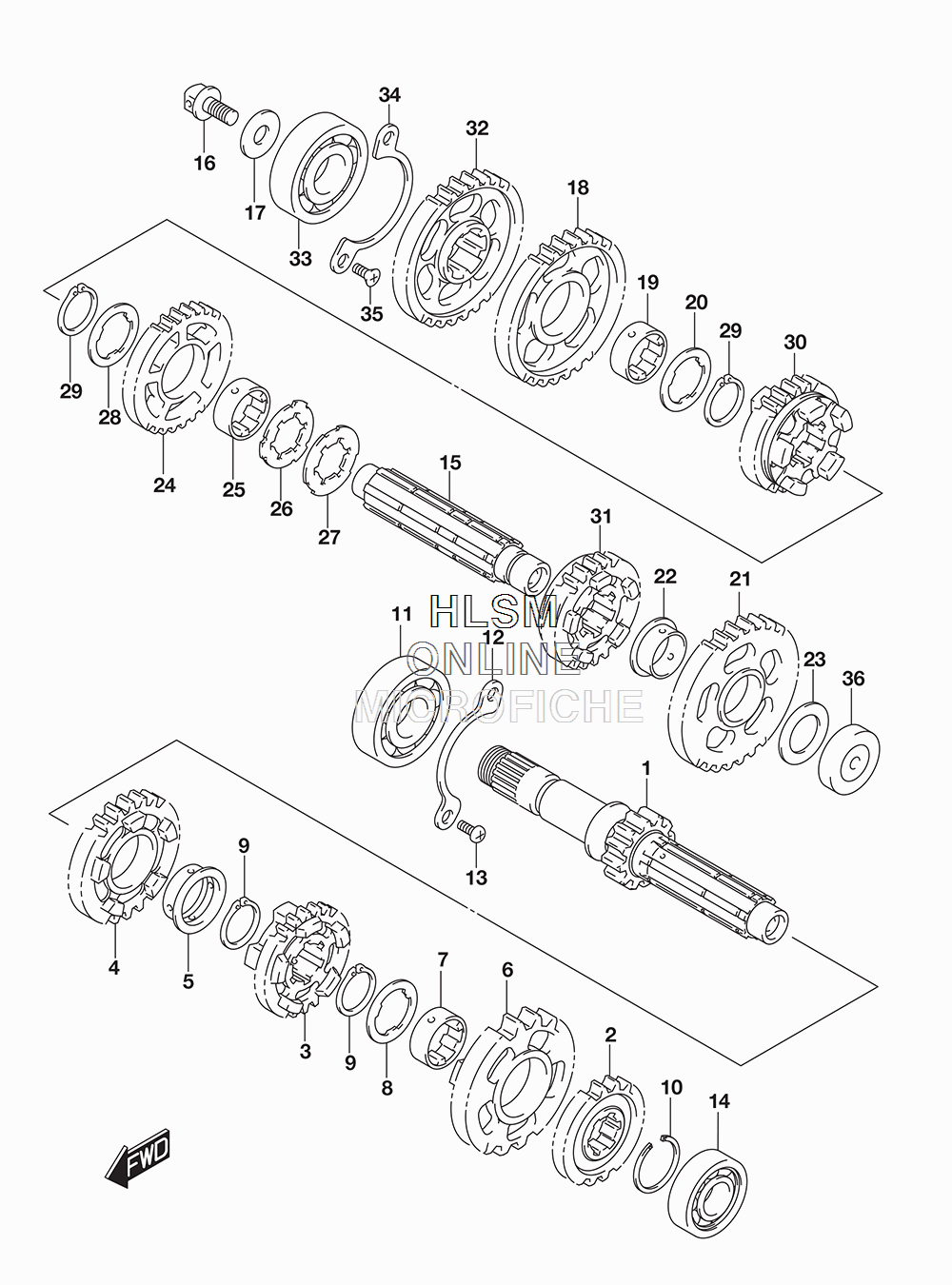

TRANSMISSION для Suzuki VZ800 M50 - 2017 года выпуска
-
№АртикулНазвание
-
124120-41F00 SHAFT, COUNTER (NT:13)SHAFT, COUNTER (NT:13)
-
224221-38A01 GEAR, 2ND DRIVE (NT:19)GEAR, 2ND DRIVE (NT:19)
-
324231-41F00 GEAR, 3RD DRIVE (NT:22)GEAR, 3RD DRIVE (NT:22)
-
424241-41F00 GEAR, 4TH DRIVE (NT:25)GEAR, 4TH DRIVE (NT:25)
-
524322-19F00 BUSH, 4THBUSH, 4TH
-
624251-41F00 GEAR, 5TH DRIVE (NT:27)GEAR, 5TH DRIVE (NT:27)
-
724252-38A10 BUSH, 5THBUSH, 5TH
-
809167-25016 LOCK WASHERLOCK WASHER
-
909380-25003 SNAP RINGSNAP RING
-
1009380-25014 CIRCLIPCIRCLIP
-
1109262-25080 BEARING (25X62X17) (RH)BEARING (25X62X17) (RH)
-
1224741-38A00 RETAINER, CNTR SHAFT BEARINGRETAINER, CNTR SHAFT BEARING
-
1309125-06122 SCREW (6X12)SCREW (6X12)
-
1409262-20139 BEARING (20X47X14) (LH)BEARING (20X47X14) (LH)
-
1524131-38A03 DRIVE SHAFTDRIVE SHAFT
-
1624135-38A02 NOZZLENOZZLE
-
1708211-10305 WASHERWASHER
-
1824311-41F00 GEAR, 1ST DRIVEN (NT:32)GEAR, 1ST DRIVEN (NT:32)
-
1924332-07A00 BUSHBUSH
-
2009167-28001 LOCK WASHERLOCK WASHER
-
2124321-41F00 GEAR, 2ND DRIVEN (NT:31)GEAR, 2ND DRIVEN (NT:31)
-
2209301-22002 BUSHBUSH
-
2309181-20251 SHIM (20X34X1)SHIM (20X34X1)
-
2424331-41F00 GEAR, 3RD DRIVEN (NT:27)GEAR, 3RD DRIVEN (NT:27)
-
2524332-07A00 BUSHBUSH
-
2609169-28001 WASHER (RH)WASHER (RH)
-
2709167-28002 LOCK WASHER (LH)LOCK WASHER (LH)
-
2809167-28001 LOCK WASHERLOCK WASHER
-
2908331-31289 CIRCLIPCIRCLIP
-
3024341-41F00 GEAR, 4TH DRIVEN (NT:25)GEAR, 4TH DRIVEN (NT:25)
-
3124351-41F00 GEAR, 5TH DRIVEN (NT:22)GEAR, 5TH DRIVEN (NT:22)
-
3224621-38A00 GEAR, REDUCTION DRIVE (NT:30)GEAR, REDUCTION DRIVE (NT:30)
-
3309262-20073 BEARING (20X52X15) (RH)BEARING (20X52X15) (RH)
-
3424751-38A00 RETAINER, DRIVE SHAFT BEARINGRETAINER, DRIVE SHAFT BEARING
-
3509126-06011 SCREW (6X12)SCREW (6X12)
-
3609262-20080 BEARING (20X52X15) (LH)BEARING (20X52X15) (LH)
