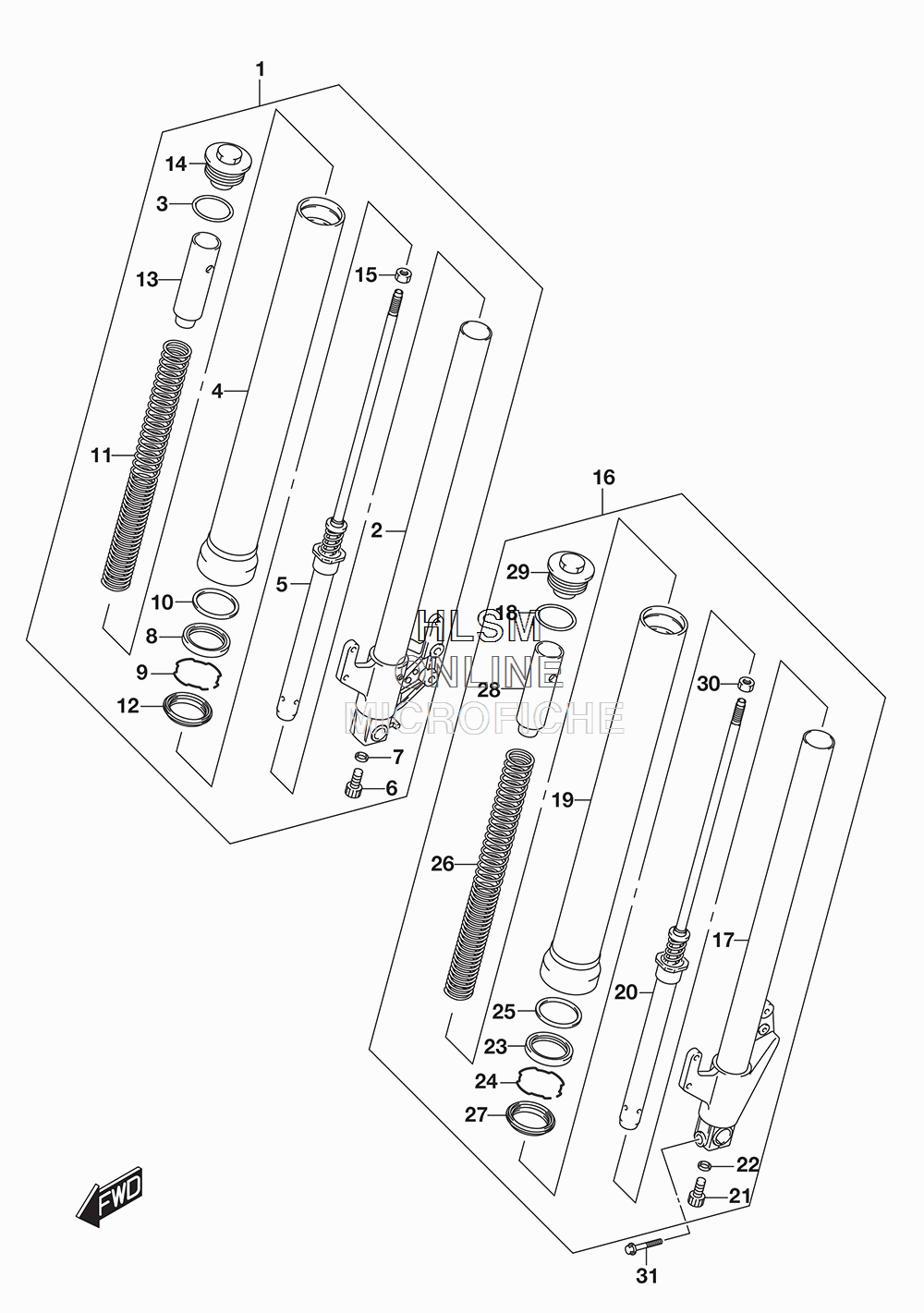

SUSPENSION - FRONT FORK DAMPER для Suzuki VZ800 M50 - 2017 года выпуска
-
№АртикулНазвание
-
151103-39G60 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251110-39G20 ...TUBE, INNER (RH)...TUBE, INNER (RH)
-
351117-39G20 ...O RING...O RING
-
451130-39G60 ...TUBE, OUTER...TUBE, OUTER
-
551146-39G20 ...CYLINDER...CYLINDER
-
651147-05H00 ...BOLT...BOLT
-
751148-41310 ...GASKET...GASKET
-
851153-10G50 ...SEAL, OIL...SEAL, OIL
-
951156-49440 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
1051158-05A00 ...WASHER...WASHER
-
1151171-39G20 ...SPRING, FRONT...SPRING, FRONT
-
1251173-14F00 ...SEAL, DUST...SEAL, DUST
-
1351176-21H00 ...SPACER, SPRING...SPACER, SPRING
-
1451351-39G60 ...CAP...CAP
-
1551352-13A60 ...NUT, ROD...NUT, ROD
-
1651104-39G60 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
1751120-39G60 ...TUBE, INNER (LH)...TUBE, INNER (LH)
-
1851117-39G20 ...O RING...O RING
-
1951130-39G60 ...TUBE, OUTER...TUBE, OUTER
-
2051146-39G20 ...CYLINDER...CYLINDER
-
2151147-05H00 ...BOLT...BOLT
-
2251148-41310 ...GASKET...GASKET
-
2351153-10G50 ...SEAL, OIL...SEAL, OIL
-
2451156-49440 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
2551158-05A00 ...WASHER...WASHER
-
2651171-39G20 ...SPRING, FRONT...SPRING, FRONT
-
2751173-14F00 ...SEAL, DUST...SEAL, DUST
-
2851176-21H00 ...SPACER, SPRING...SPACER, SPRING
-
2951351-39G20 ...CAP...CAP
-
3051352-13A60 ...NUT, ROD...NUT, ROD
-
3151166-10G10 BOLT, AXLE STOPPERBOLT, AXLE STOPPER
