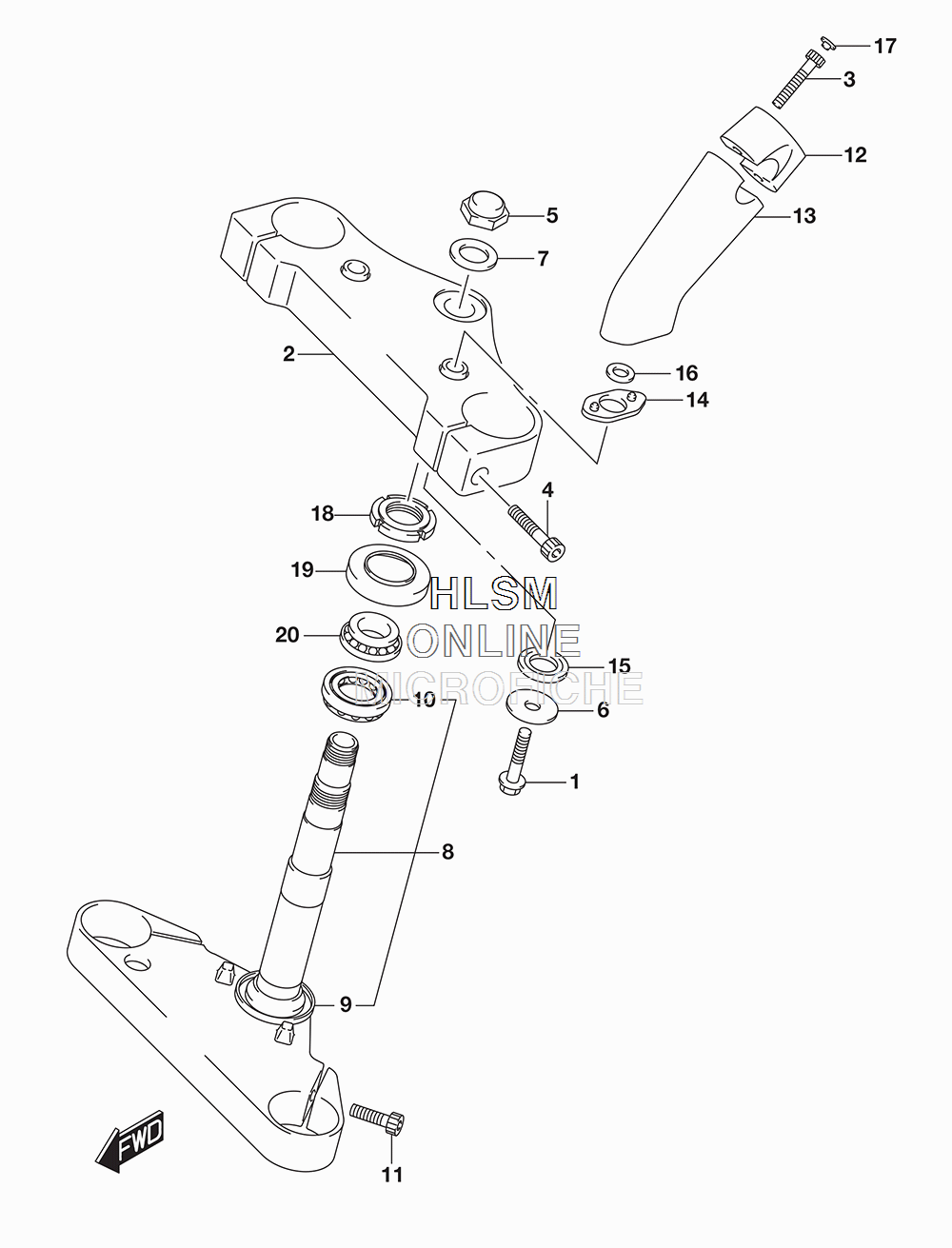

STEERING STEM для Suzuki VZ800 M50 - 2017 года выпуска
-
№АртикулНазвание
-
151226-39G20 BOLTBOLT
-
251311-39G60 BRACKET, UPPERBRACKET, UPPER
-
351328-39G20 BOLT, HOLDER HANDLE UPPERBOLT, HOLDER HANDLE UPPER
-
451328-39G20 BOLT, HOLDER HANDLE UPPERBOLT, HOLDER HANDLE UPPER
-
551353-24B00 NUT, CAPNUT, CAP
-
651355-16G00 WASHERWASHER
-
751356-10D03 WASHER (22.5X35.9X1.6)WASHER (22.5X35.9X1.6)
-
851410-39G60 BRACKET, UNDERBRACKET, UNDER
-
951644-12C00 ...SEAL, STEERING LOWER...SEAL, STEERING LOWER
-
1009267-30010 ...BEARING (30X55X17)...BEARING (30X55X17)
-
1151434-39G00 BOLT, BRACKET UNDERBOLT, BRACKET UNDER
-
1256211-39G60 HOLDER, HANDLEHOLDER, HANDLE
-
1356221-39G60 HOLDER, HANDLEHOLDER, HANDLE
-
1456245-39G00 RUBBER, HANDLE HOLDERRUBBER, HANDLE HOLDER
-
1556245-39G20 RUBBER, HANDLE LOWERRUBBER, HANDLE LOWER
-
1608322-01107 WASHERWASHER
-
1709250-06011 CAP (OD:11)CAP (OD:11)
-
1851631-28000 NUT, STEERING STEMNUT, STEERING STEM
-
1951643-40502 SEAL, STEERING DUST UPPERSEAL, STEERING DUST UPPER
-
2009267-25009 BEARING (25X47X15)BEARING (25X47X15)
