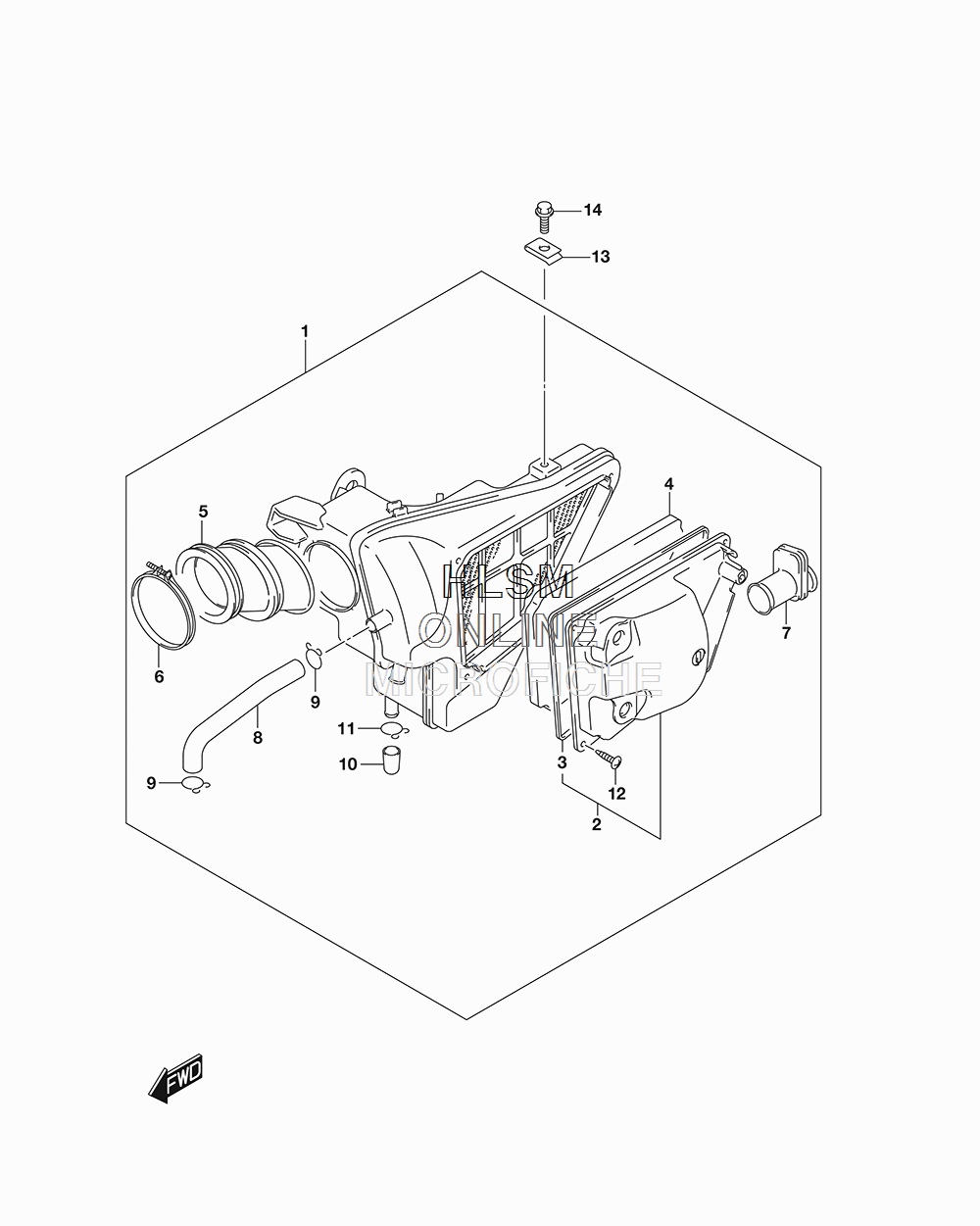

AIR CLEANER (CANADA) для Suzuki RV200 VANVAN 200 - 2018 года выпуска
-
№АртикулНазвание
-
113700-13GC0 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-13G01 ...CAP, AIR CLEANER...CAP, AIR CLEANER
-
313746-13G00 ......GASKET, AIR CLEANER CAP......GASKET, AIR CLEANER CAP
-
413780-13G02 ...FILTER ASSY...FILTER ASSY
-
513881-13GC0 ...TUBE, OUTLET...TUBE, OUTLET
-
609402-52208 ...CLAMP...CLAMP
-
713891-13GC0 ...TUBE, INLET...TUBE, INLET
-
813853-13G00 ...TUBE, BREATHER...TUBE, BREATHER
-
909401-14301 ...CLIP...CLIP
-
1013859-41B10 ...PLUG...PLUG
-
1109401-14301 ...CLIP...CLIP
-
1203541-0520A ...SCREW...SCREW
-
1309148-06021 NUTNUT
-
1401550-0616A BOLTBOLT
