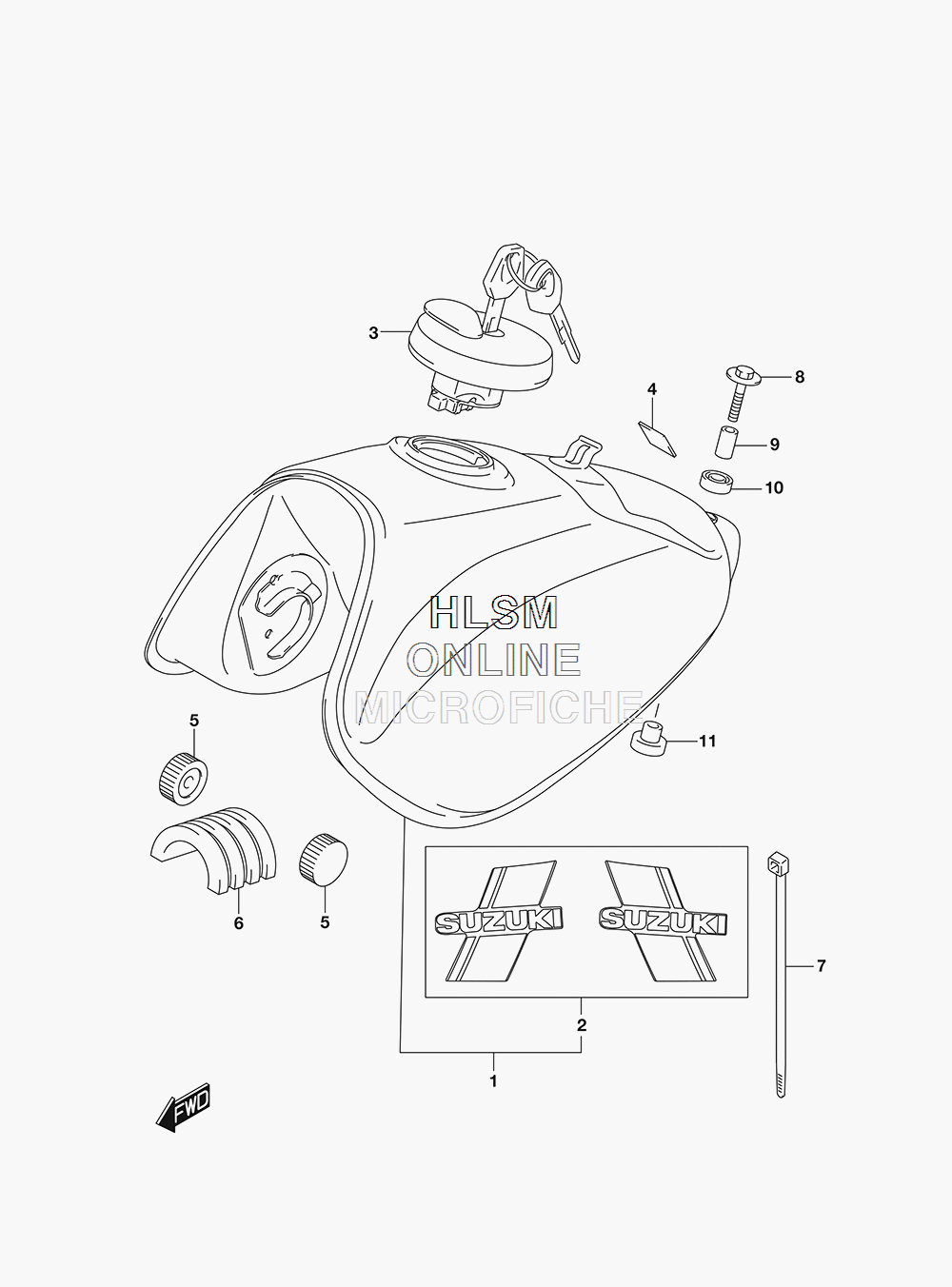

FUEL TANK (CALIF.) для Suzuki RV200 VANVAN 200 - 2018 года выпуска
-
№АртикулНазвание
-
1-144100-13GR0-YMF TANK ASSY, FUEL (YMF - YELLOW)TANK ASSY, FUEL (YMF - YELLOW)
-
1-244100-13GR0-YVZ TANK ASSY, FUEL (YVZ - RED)TANK ASSY, FUEL (YVZ - RED)
-
1-344100-13GR0-019 TANK ASSY, FUEL (019 - BLACK)TANK ASSY, FUEL (019 - BLACK)
-
2-168110-13GE0-ANW ...EMBLEM SET, FUEL TANK (ANW - WHITE/BLACK/YELLOW FOR YMF)...EMBLEM SET, FUEL TANK (ANW - WHITE/BLACK/YELLOW FOR YMF)
-
2-268110-13GE0-BMQ ...EMBLEM SET, FUEL TANK (BMQ - BLACK/WHITE/RED FOR YVZ)...EMBLEM SET, FUEL TANK (BMQ - BLACK/WHITE/RED FOR YVZ)
-
2-368110-13GE0-BMA ...EMBLEM SET, FUEL TANK (BMA - RED/GRAY/BLACK FOR 019)...EMBLEM SET, FUEL TANK (BMA - RED/GRAY/BLACK FOR 019)
-
344200-41840 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
444572-13G00 FASTENERFASTENER
-
509329-10016 CUSHIONCUSHION
-
644541-04F00 CUSHION, FUEL TANK LOWERCUSHION, FUEL TANK LOWER
-
709407-30402 CLAMP (L:300)CLAMP (L:300)
-
809116-06214 BOLT (6X30)BOLT (6X30)
-
909180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1009320-14022 CUSHIONCUSHION
-
1109320-10020 CUSHIONCUSHION
