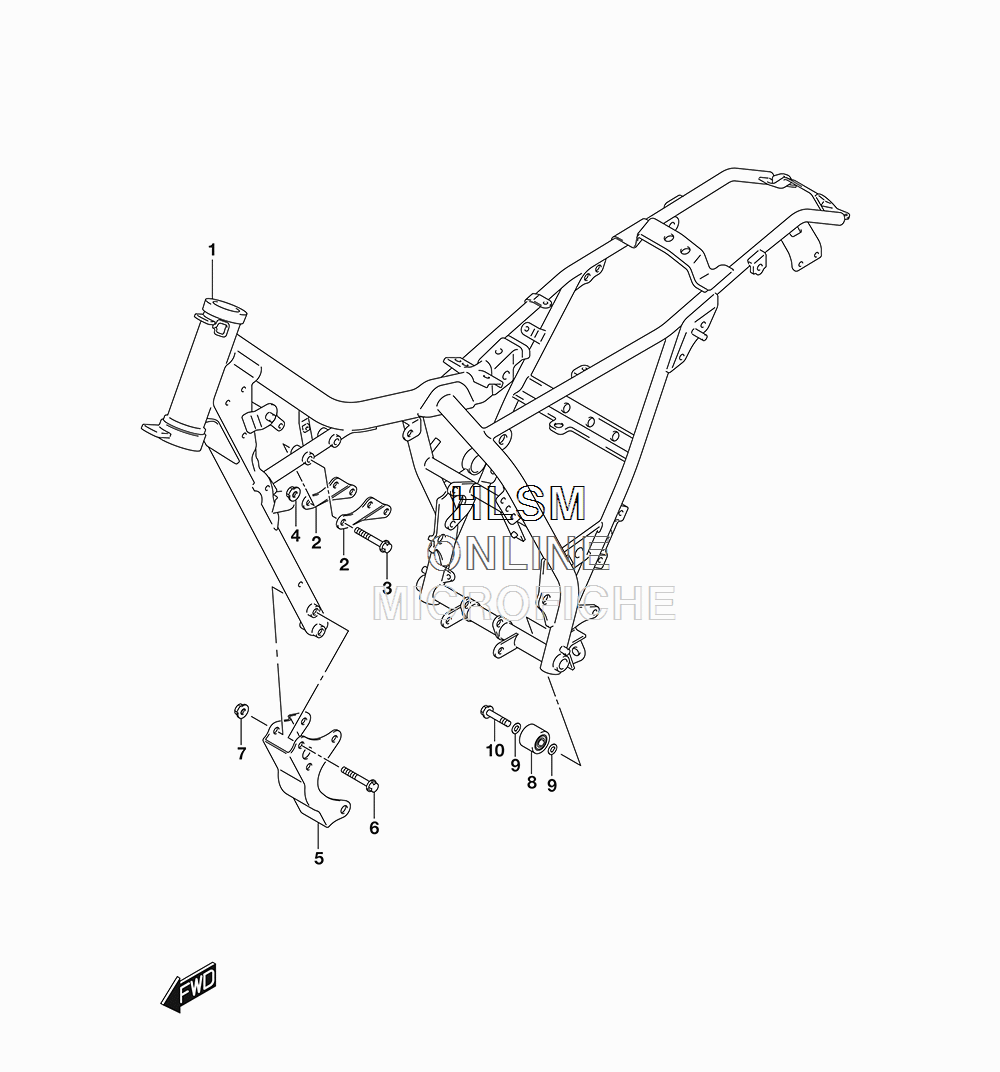

FRAME (CANADA) для Suzuki RV200 VANVAN 200 - 2018 года выпуска
-
№АртикулНазвание
-
141100-13G60-019 FRAME (019 - BLACK)FRAME (019 - BLACK)
-
241991-13G00 PLATE, ENG MTG UPPERPLATE, ENG MTG UPPER
-
309103-08332 BOLT (8X53)BOLT (8X53)
-
408319-3108A NUTNUT
-
541992-13G00-019 PLATE, ENGINE MOUNT FR (019 - BLACK)PLATE, ENGINE MOUNT FR (019 - BLACK)
-
609103-08293 BOLT (8X70)BOLT (8X70)
-
708319-3108A NUTNUT
-
843910-37F00 ROLLER, CHAINROLLER, CHAIN
-
909181-08111 SHIM (8X12X1)SHIM (8X12X1)
-
1009103-08083 BOLT (8X41)BOLT (8X41)
