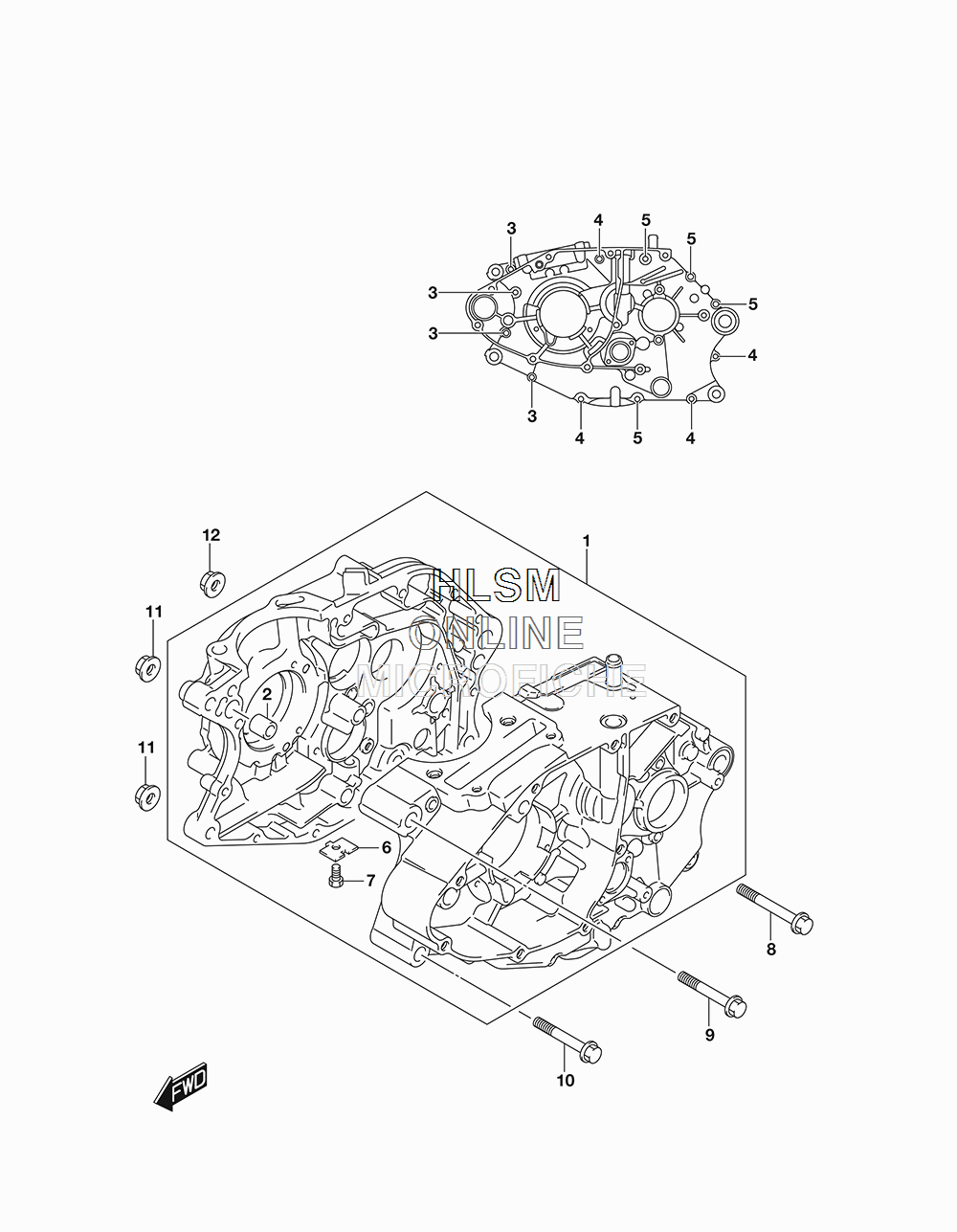

CRANKCASE для Suzuki RV200 VANVAN 200 - 2018 года выпуска
-
№АртикулНазвание
-
111300-42A60 CRANKCASE ASSYCRANKCASE ASSY
-
204211-13189 ...PIN...PIN
-
301547-0655A ...BOLT...BOLT
-
401547-0660A ...BOLT...BOLT
-
501547-06757 ...BOLT...BOLT
-
611319-05200 ...PLATE, OIL GALLERY PLUG...PLATE, OIL GALLERY PLUG
-
701500-0610A ...BOLT...BOLT
-
809103-08112 BOLT (8X90)BOLT (8X90)
-
909103-10370 BOLT (10X80)BOLT (10X80)
-
1009103-10370 BOLT (10X80)BOLT (10X80)
-
1109159-10115 NUTNUT
-
1208319-3108A NUTNUT
