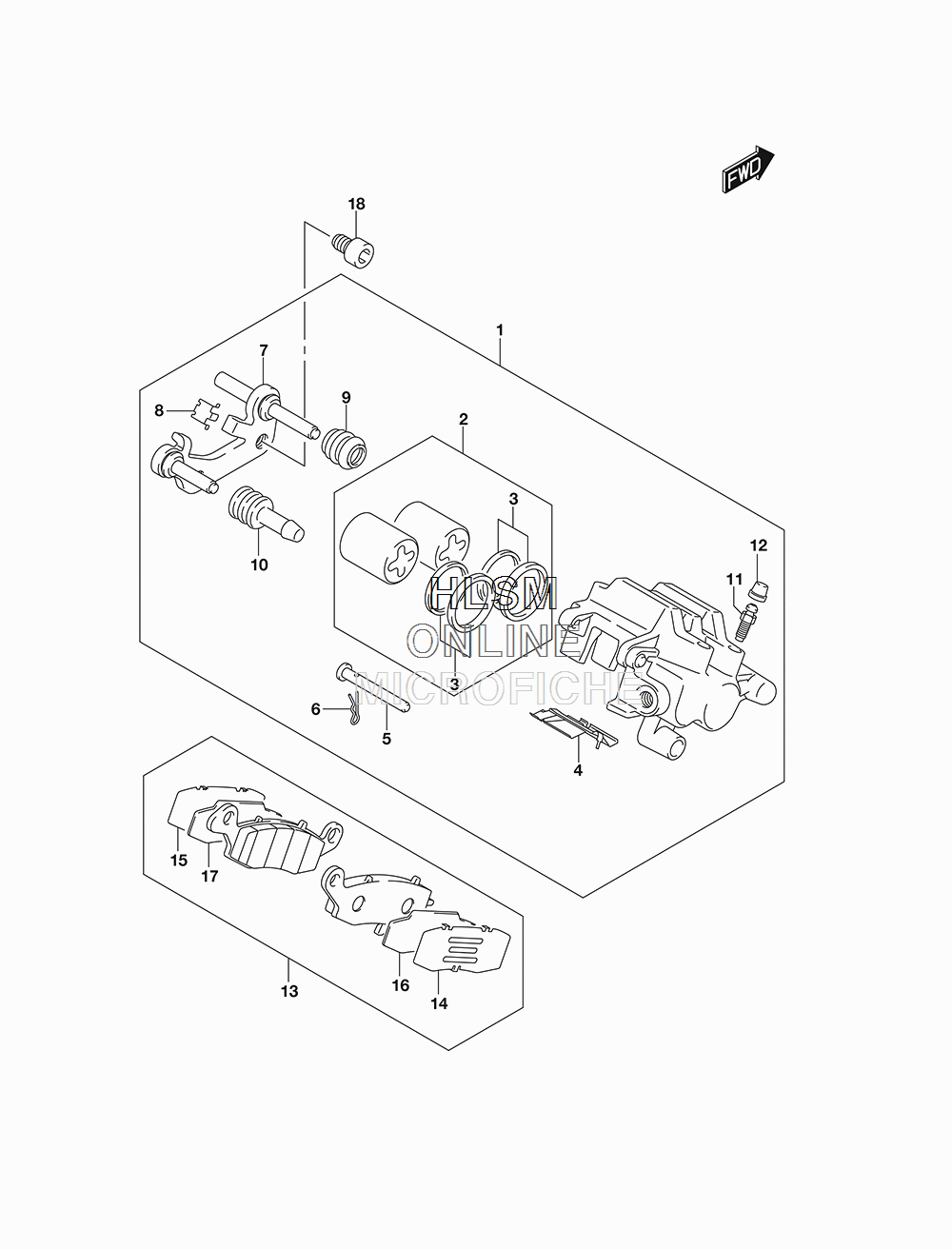

BRAKE - REAR CALIPER для Suzuki VZR1800 M109R - 2018 года выпуска
-
№АртикулНазвание
-
169100-01D40-999 CALIPER ASSY, REARCALIPER ASSY, REAR
-
269100-01840 ...PISTON SET...PISTON SET
-
359300-33841 ......SEAL SET, PISTON......SEAL SET, PISTON
-
469115-01D40 ...SPRING, PAD...SPRING, PAD
-
569141-01D40 ...PIN, PAD...PIN, PAD
-
669142-45000 ...CLIP, PAD PIN...CLIP, PAD PIN
-
769150-01D40 ...CARRIER, CALIPER...CARRIER, CALIPER
-
859116-33D00 ...GUIDE, PAD...GUIDE, PAD
-
959112-44B00 ...BOOT, AXLE...BOOT, AXLE
-
1059113-01D00 ...INSULATOR, AXLE...INSULATOR, AXLE
-
1159121-18410 ...BLEEDER...BLEEDER
-
1255156-66310 ...CAP, BLEEDER PLUG...CAP, BLEEDER PLUG
-
1369100-01870 PAD & SHIM SETPAD & SHIM SET
-
1459171-33D00 ...SHIM, PAD...SHIM, PAD
-
1559172-33D00 ...SHIM, PAD NO.2...SHIM, PAD NO.2
-
1669171-01D40 ...INSULATOR NO.1...INSULATOR NO.1
-
1769172-01D40 ...INSULATOR NO.2...INSULATOR NO.2
-
1809106-10093 BOLT (10X20)BOLT (10X20)
