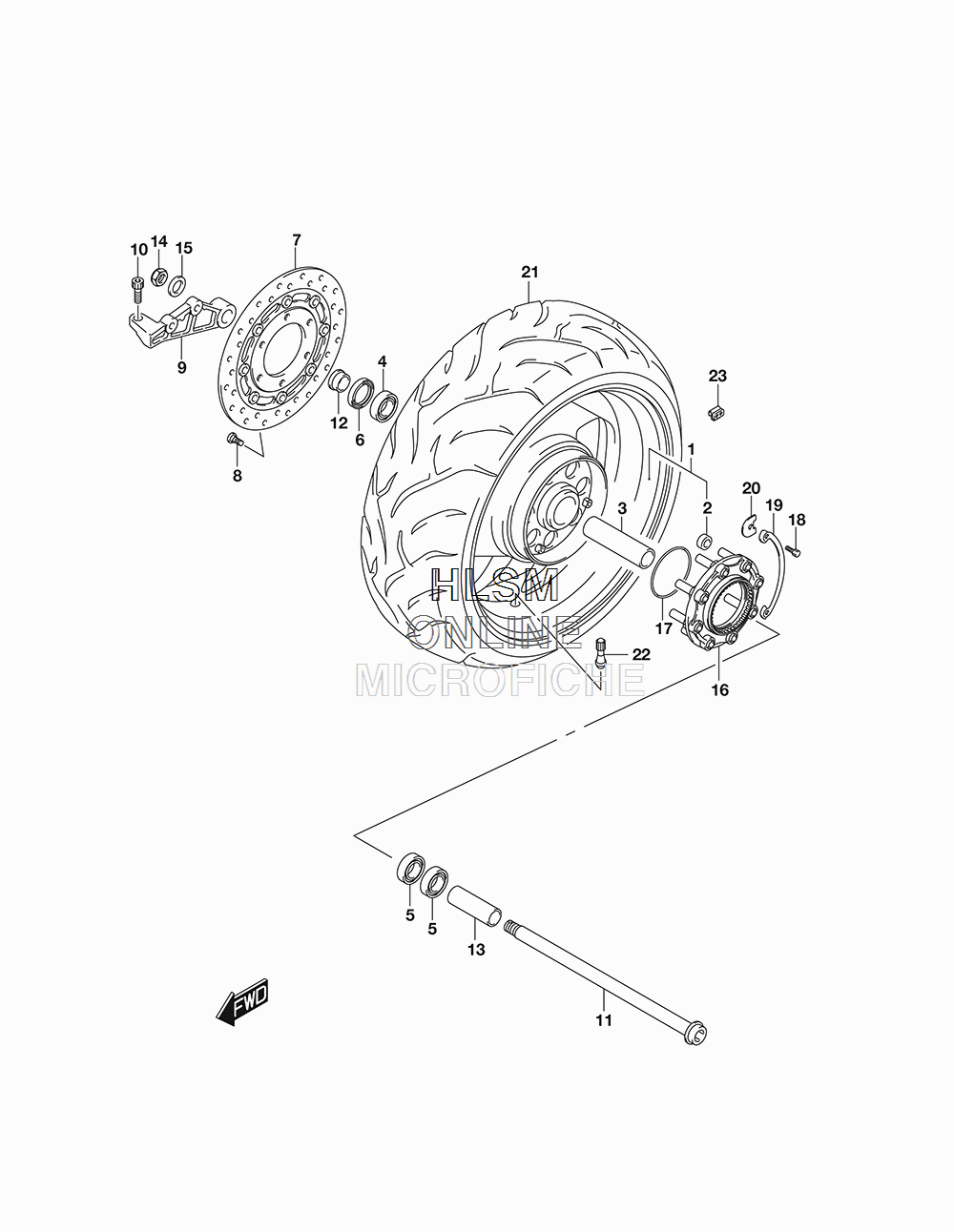

WHEEL - REAR (CANADA) для Suzuki VZR1800 M109R - 2018 года выпуска
-
№АртикулНазвание
-
164100-48820-019 WHEEL SET, REAR (18M/CXMT8.5) (019 - BLACK)WHEEL SET, REAR (18M/CXMT8.5) (019 - BLACK)
-
209319-12019 ...BUSH...BUSH
-
364731-48G00 SPACER, REAR WHEEL BEARINGSPACER, REAR WHEEL BEARING
-
409262-25186 BEARING (25X52X15) (RH)BEARING (25X52X15) (RH)
-
508143-62057 BEARING (LH)BEARING (LH)
-
609285-32004 OIL SEAL (32X52X7)OIL SEAL (32X52X7)
-
769210-10F60 DISC, REAR BRAKEDISC, REAR BRAKE
-
809106-08160 BOLT (8X21)BOLT (8X21)
-
969721-48G10 BRACKET, REAR CALIPERBRACKET, REAR CALIPER
-
1009103-12109 BOLT (12X40)BOLT (12X40)
-
1164711-48G00 AXLE, REARAXLE, REAR
-
1264741-48G00 SPACER, REAR AXLE (RH)SPACER, REAR AXLE (RH)
-
1364772-48G00 SPACER, REAR AXLE (LH)SPACER, REAR AXLE (LH)
-
1464721-13K00 NUTNUT
-
1509160-22081 WASHER (22X35X2)WASHER (22X35X2)
-
1664680-48G00 JOINT ASSY, REAR HUB DRIVENJOINT ASSY, REAR HUB DRIVEN
-
1709280-80001 O RING (D:2.4,ID:79.8)O RING (D:2.4,ID:79.8)
-
1809119-06049 BOLT (6X16)BOLT (6X16)
-
1964679-48G00 WASHER, REAR HUB DRIVEN JOINTWASHER, REAR HUB DRIVEN JOINT
-
2064677-48G10 WASHER, THRUSTWASHER, THRUST
-
2165110-48G01 TIRE, REAR (240/40R18M/C 79V D221) (DUNLOP)TIRE, REAR (240/40R18M/C 79V D221) (DUNLOP)
-
2243130-24A00 VALVE ASSY, WHEEL RIM, (TR412VALVE ASSY, WHEEL RIM, (TR412
-
23-155411-22H00 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
23-255412-22H00 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
23-355413-22H00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
