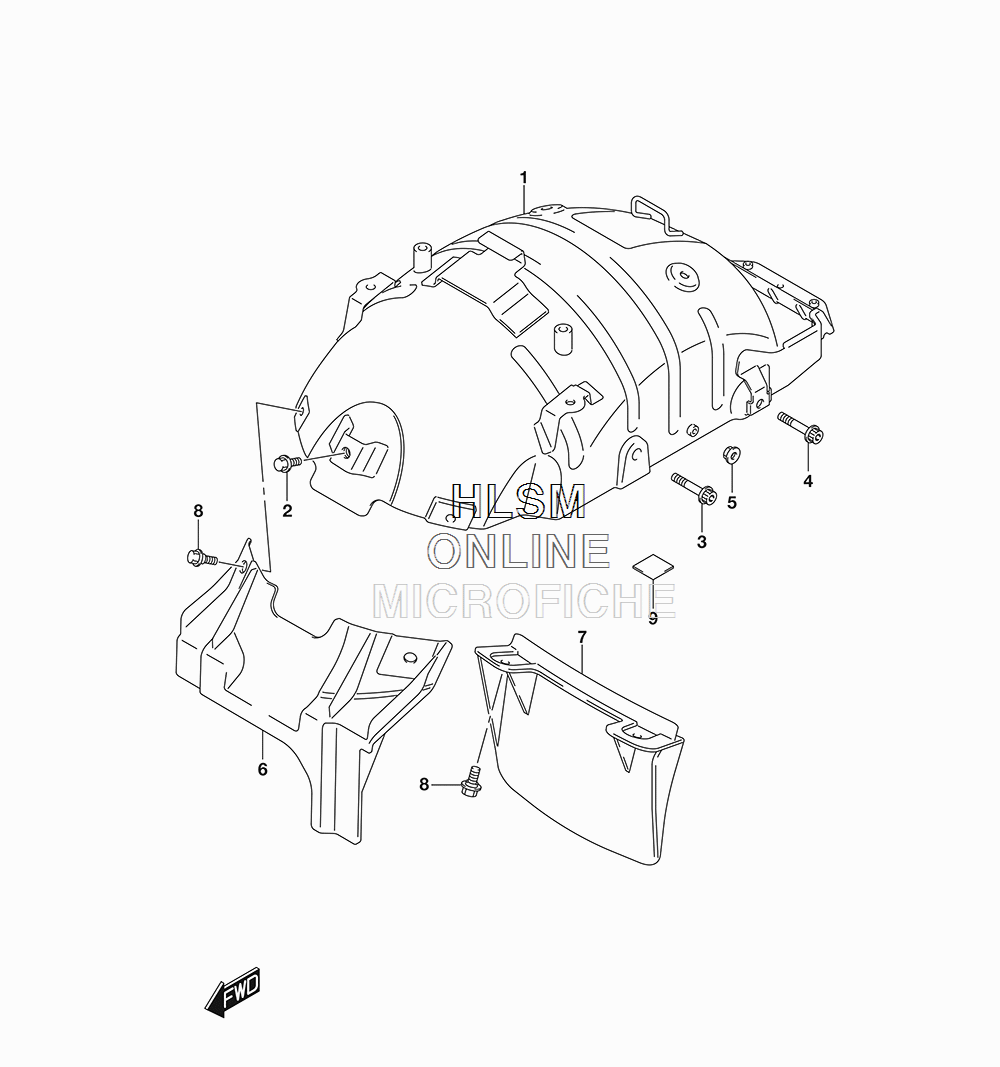

FENDER BRACE - REAR для Suzuki VZR1800 M109R - 2018 года выпуска
-
№АртикулНазвание
-
163140-48G00 BRACE, REAR FENDERBRACE, REAR FENDER
-
201550-0812A BOLT (FRONT)BOLT (FRONT)
-
309106-08182 BOLT (8X70) (FRONT)BOLT (8X70) (FRONT)
-
409106-08183 BOLT (8X50) (REAR)BOLT (8X50) (REAR)
-
508316-1008A NUTNUT
-
663411-48G00 MUDGUARD, FRONT UPPERMUDGUARD, FRONT UPPER
-
763421-48G00 MUDGUARD, FRONT LOWERMUDGUARD, FRONT LOWER
-
809111-06107 BOLT (6X12)BOLT (6X12)
-
994429-13E00 CUSHION, CABLE GUIDECUSHION, CABLE GUIDE
