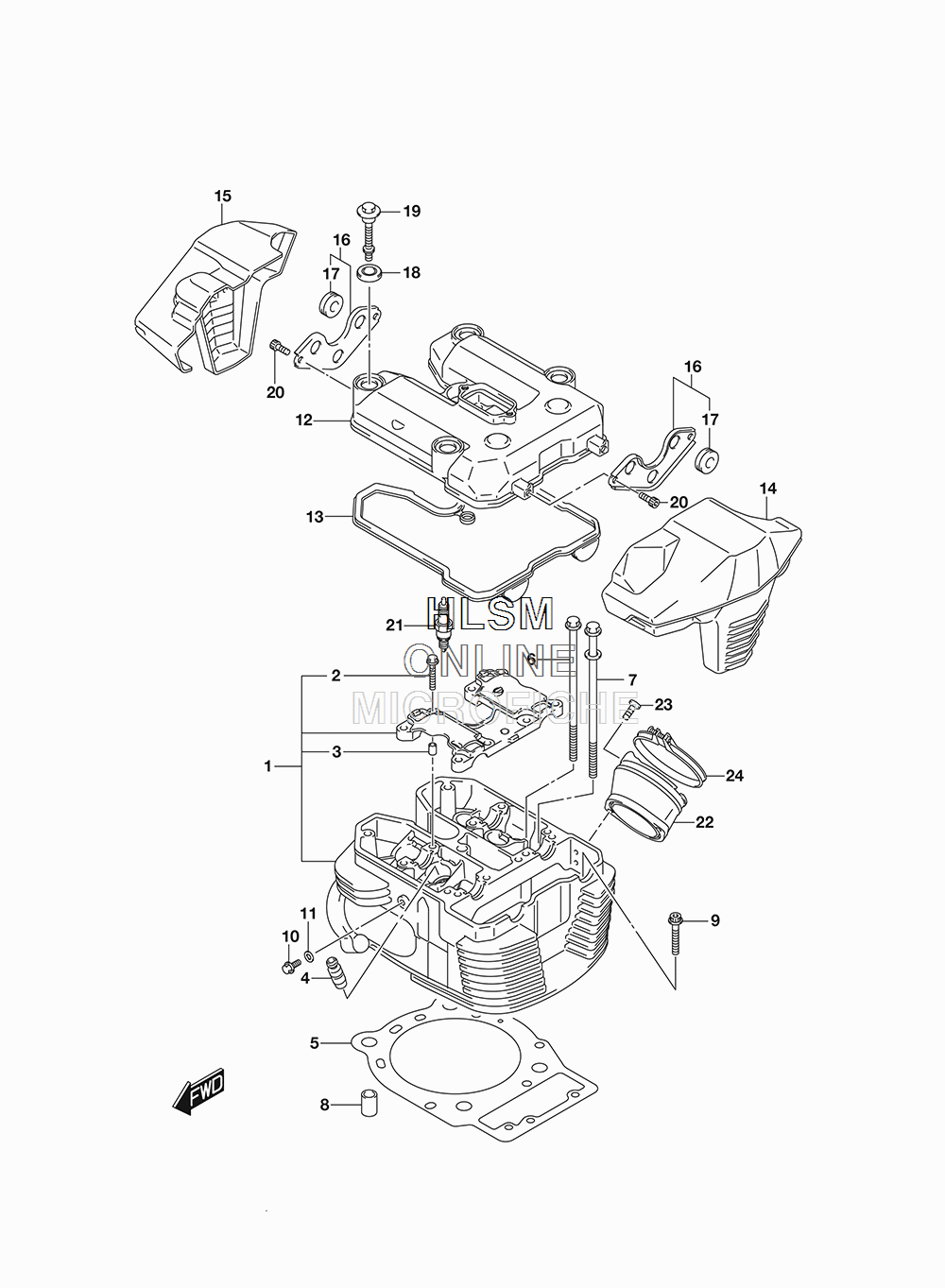

CYLINDER HEAD (FRONT) (CANADA) для Suzuki VZR1800 M109R - 2018 года выпуска
-
№АртикулНазвание
-
111101-48G10 HEAD ASSY, CYLINDER FRONTHEAD ASSY, CYLINDER FRONT
-
209103-06026 ...BOLT (6X39)...BOLT (6X39)
-
309206-08001 ...PIN (8X11)...PIN (8X11)
-
411115-65J00-001 GUIDE, VALVE (OS 0.3) (OPT)GUIDE, VALVE (OS 0.3) (OPT)
-
511141-48G00 GASKET, CYLINDER HEAD FRONTGASKET, CYLINDER HEAD FRONT
-
609103-08415 BOLT (8X180)BOLT (8X180)
-
709103-10396 BOLT (10X19)BOLT (10X19)
-
804211-13189 PINPIN
-
907120-0670A BOLTBOLT
-
1001550-0612A BOLTBOLT
-
1109168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1211170-48G00 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
1311173-48G00 GASKETGASKET
-
1411174-48G00 CAP, CYL HEAD COVER NO.1CAP, CYL HEAD COVER NO.1
-
1511175-48G00 CAP, CYL HEAD COVER NO.2CAP, CYL HEAD COVER NO.2
-
1611180-48G00 BRACKET HEAD COVER CAPBRACKET HEAD COVER CAP
-
1709320-08013 ...CUSHION...CUSHION
-
1811192-13E00 CUSHION HEAD COVER BOLTCUSHION HEAD COVER BOLT
-
1909111-06091 BOLT (6X52)BOLT (6X52)
-
2007130-0612A BOLTBOLT
-
21-109482-00412 SPARK PLUG (CR8EK) (NGK)SPARK PLUG (CR8EK) (NGK)
-
21-209482-00413 SPARK PLUG (U24ETR) (DENSO)SPARK PLUG (U24ETR) (DENSO)
-
21-309482-00410 SPARK PLUG (CR9EK) (NGK) (OPT)SPARK PLUG (CR9EK) (NGK) (OPT)
-
21-409482-00411 SPARK PLUG (U27ETR) (DENSO) (OPT)SPARK PLUG (U27ETR) (DENSO) (OPT)
-
21-509482-00414 SPARK PLUG (CR7EK) (NGK) (OPT)SPARK PLUG (CR7EK) (NGK) (OPT)
-
21-609482-00415 SPARK PLUG (U22ETR) (DENSO) (OPT)SPARK PLUG (U22ETR) (DENSO) (OPT)
-
2213101-48G00 PIPE ASSY, INTAKEPIPE ASSY, INTAKE
-
2309120-06008 BOLT (6X20.5)BOLT (6X20.5)
-
2413170-22H00 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
