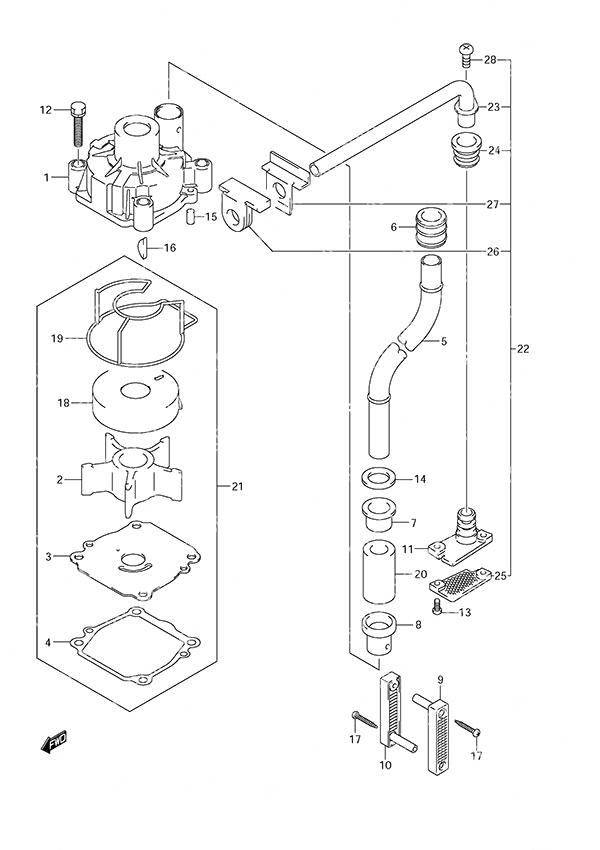

Fig. 12 - Water Pump для Suzuki DF 140A - 2013 года выпуска
-
№АртикулНазвание
-
117410-92J00-000 Water Pump CaseWater Pump Case
-
217461-90J01-000 Water Pump ImpellerWater Pump Impeller
-
317471-92J00-000 Water Pump PlateWater Pump Plate
-
417472-87E10-000 Water Pump Plate GasketWater Pump Plate Gasket
-
5-117561-90J03-000 Water Tube (L)
w/Transom (L)Water Tube (L)
w/Transom (L) -
5-217561-90J13-000 Water Tube (X)
Type: XWater Tube (X)
Type: X -
617562-90J00-000 Water Tube Bushing
UpperWater Tube Bushing
Upper -
717563-87D01-000 Water Tube Bushing
LowerWater Tube Bushing
Lower -
817564-87D00-000 Water Pump Case BushingWater Pump Case Bushing
-
917631-90J00-000 Port Side Water FilterPort Side Water Filter
-
1017632-90J00-000 Starboard Side Water FilterStarboard Side Water Filter
-
1117635-90J00-000 Sub Water Tube PlugSub Water Tube Plug
-
1209116-08131-000 Bolt (8x45)Bolt (8x45)
-
1309125-05046-000 Screw (5x12)Screw (5x12)
-
1409161-16008-000 Washer (15.8x26x1)Washer (15.8x26x1)
-
1509202-06031-000 Knock Pin (6x12)Knock Pin (6x12)
-
1609420-05009-000 Water Pump KeyWater Pump Key
-
1709132-04034-000 Screw (4x18)Screw (4x18)
-
1817413-92J01-000 Water Pump Case SleeveWater Pump Case Sleeve
-
1917416-92J11-000 Water Pump Case SealWater Pump Case Seal
-
2017612-90J00-000 Water Tube Spacer (X)
Type: XWater Tube Spacer (X)
Type: X -
2117400-92J23-000 Water Pump Repair Kit
OptionalWater Pump Repair Kit
Optional -
2217500-90J10-000 Water Sub Tube Kit
OptionalWater Sub Tube Kit
Optional -
2317520-90J00-000 • Water Sub Tube
Optional• Water Sub Tube
Optional -
2417563-87D01-000 • Water Tube Bushing
Optional• Water Tube Bushing
Optional -
2517635-87E00-000 • Sub Water Filter
Optional• Sub Water Filter
Optional -
2655332-87D01-000 • Exhaust Seal Rubber
Optional• Exhaust Seal Rubber
Optional -
2755333-87D02-000 • Exhuast Seal Plate (NLA)
Optional• Exhuast Seal Plate (NLA)
Optional -
2809125-06063-000 • Screw (6x10)
Optional• Screw (6x10)
Optional
