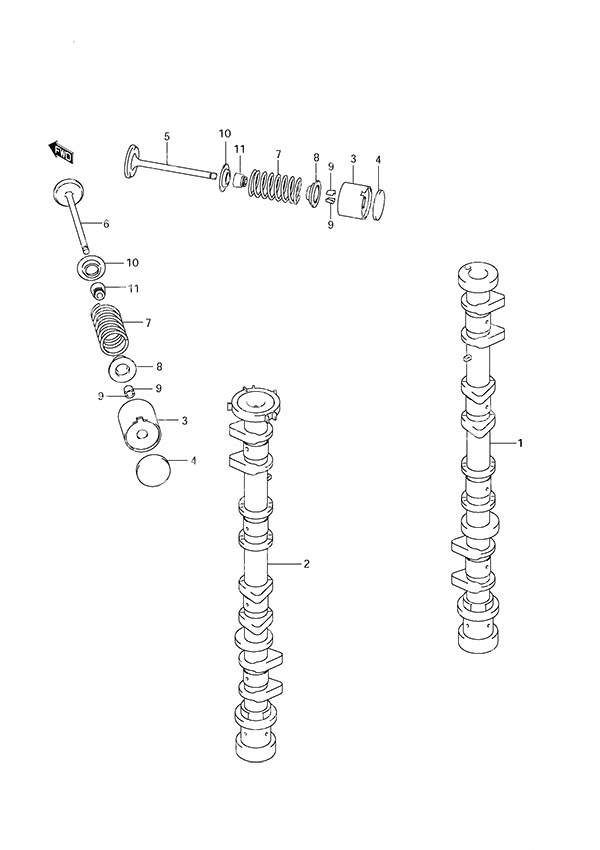

Fig. 6 - Camshaft для Suzuki DF 140A - 2013 года выпуска
-
№АртикулНазвание
-
112711-92J00-000 Intake CamshaftIntake Camshaft
-
212720-92J10-000 Exhaust CamshaftExhaust Camshaft
-
312891-69G00-000 TappetTappet
-
4-112892-69G10-218 Tappet Shim (2.175)Tappet Shim (2.175)
-
4-212892-69G10-220 Tappet Shim (2.200)Tappet Shim (2.200)
-
4-312892-69G10-223 Tappet Shim (2.225) (NLA)Tappet Shim (2.225) (NLA)
-
4-412892-69G10-225 Tappet Shim (2.250)Tappet Shim (2.250)
-
4-512892-69G10-228 Tappet Shim (2.275)Tappet Shim (2.275)
-
4-612892-69G10-230 Tappet Shim (2.300)Tappet Shim (2.300)
-
4-712892-69G10-233 Tappet Shim (2.325)Tappet Shim (2.325)
-
4-812892-69G10-235 Tappet Shim (2.350)Tappet Shim (2.350)
-
4-912892-69G10-238 Tappet Shim (2.375)Tappet Shim (2.375)
-
4-1012892-69G10-240 Tappet Shim (2.400)Tappet Shim (2.400)
-
4-1112892-69G10-243 Tappet Shim (2.425)Tappet Shim (2.425)
-
4-1212892-69G10-245 Tappet Shim (2.450)Tappet Shim (2.450)
-
4-1312892-69G10-248 Tappet Shim (2.475)Tappet Shim (2.475)
-
4-1412892-69G10-250 Tappet Shim (2.500)Tappet Shim (2.500)
-
4-1512892-69G10-253 Tappet Shim (2.525)Tappet Shim (2.525)
-
4-1612892-69G10-255 Tappet Shim (2.550)Tappet Shim (2.550)
-
4-1712892-69G10-258 Tappet Shim (2.575)Tappet Shim (2.575)
-
4-1812892-69G10-260 Tappet Shim (2.600)Tappet Shim (2.600)
-
4-1912892-69G10-263 Tappet Shim (2.625)Tappet Shim (2.625)
-
4-2012892-69G10-265 Tappet Shim (2.650)Tappet Shim (2.650)
-
4-2112892-69G10-268 Tappet Shim (2.675)Tappet Shim (2.675)
-
4-2212892-69G10-270 Tappet Shim (2.700)Tappet Shim (2.700)
-
4-2312892-69G10-273 Tappet Shim (2.725)Tappet Shim (2.725)
-
4-2412892-69G10-275 Tappet Shim (2.750)Tappet Shim (2.750)
-
4-2512892-69G10-278 Tappet Shim (2.775)Tappet Shim (2.775)
-
4-2612892-69G10-280 Tappet Shim (2.800)Tappet Shim (2.800)
-
4-2712892-69G10-283 Tappet Shim (2.825) (NLA)Tappet Shim (2.825) (NLA)
-
4-2812892-69G10-285 Tappet Shim (2.850)Tappet Shim (2.850)
-
4-2912892-69G10-288 Tappet Shim (2.875) (NLA)Tappet Shim (2.875) (NLA)
-
4-3012892-69G10-290 Tappet Shim (2.900)Tappet Shim (2.900)
-
4-3112892-69G10-293 Tappet Shim (2.925) (NLA)Tappet Shim (2.925) (NLA)
-
4-3212892-69G10-295 Tappet Shim (2.950) (NLA)Tappet Shim (2.950) (NLA)
-
4-3312892-69G10-298 Tappet Shim (2.975)Tappet Shim (2.975)
-
4-3412892-69G10-300 Tappet Shim (3.000) (NLA)Tappet Shim (3.000) (NLA)
-
512911-86FA2-000 Intake ValveIntake Valve
-
612915-86FA1-000 Exhaust ValveExhaust Valve
-
712921-90J00-000 Replaced by 12921-90J01Replaced by 12921-90J01
-
812931-90J00-000 Valve Spring RetainerValve Spring Retainer
-
912932-85FA0-000 Valve CotterValve Cotter
-
1012933-86510-000 Valve Spring SeatValve Spring Seat
-
1109289-06003-000 Valve Stem SealValve Stem Seal
