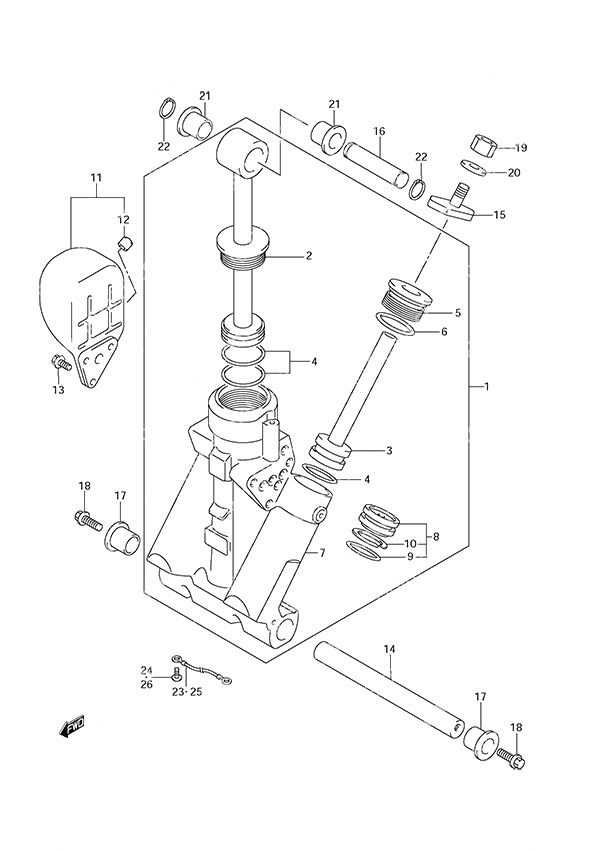

Fig. 35 - Trim Cylinder для Suzuki DF 140A - 2013 года выпуска
-
№АртикулНазвание
-
148503-96J03-000 Manifold Sub AssemblyManifold Sub Assembly
-
248401-96J02-000 • Piston Assembly• Piston Assembly
-
348601-94900-000 • Piston & Ram Assembly• Piston & Ram Assembly
-
448627-95E00-000 • O-Ring Set• O-Ring Set
-
548630-96J04-000 • Trim Cylinder Head• Trim Cylinder Head
-
648633-94900-000 • O-Ring Set (Pack of 2)• O-Ring Set (Pack of 2)
-
748641-96J02-000 • PTT Manifold• PTT Manifold
-
848650-94900-000 • Free Piston• Free Piston
-
948405-87D00-000 •• Tilt O-Ring Set•• Tilt O-Ring Set
-
1048615-97E00-000 •• Piston Ring Set•• Piston Ring Set
-
1148570-95E01-000 Reservoir AssemblyReservoir Assembly
-
1248572-95E00-000 • Cap• Cap
-
1348861-92J01-000 Reservoir BoltReservoir Bolt
-
1448121-92J00-000 Tilt Cylinder Lower ShaftTilt Cylinder Lower Shaft
-
1548311-96J10-000 Trim Cylinder Ram PadTrim Cylinder Ram Pad
-
1648321-87D03-000 Tilt Cylinder Upper ShaftTilt Cylinder Upper Shaft
-
1748326-95E00-000 Tilt Cylinder Lower BushingTilt Cylinder Lower Bushing
-
1809116-10179-000 Bolt (10x35)Bolt (10x35)
-
1909140-10031-000 Nut (10mm)Nut (10mm)
-
2009162-10005-000 Lock WasherLock Washer
-
2109306-17001-000 BushingBushing
-
2209380-17009-000 CirclipCirclip
-
2336894-87D00-000 Wire Lead (L:195)
PTT to AnodeWire Lead (L:195)
PTT to Anode -
2409125-06063-000 Screw (6x10)Screw (6x10)
-
2536895-87D10-000 Wire Lead (L:310)
PTT to AnodeWire Lead (L:310)
PTT to Anode -
2609125-05050-000 Screw (5x8)Screw (5x8)
