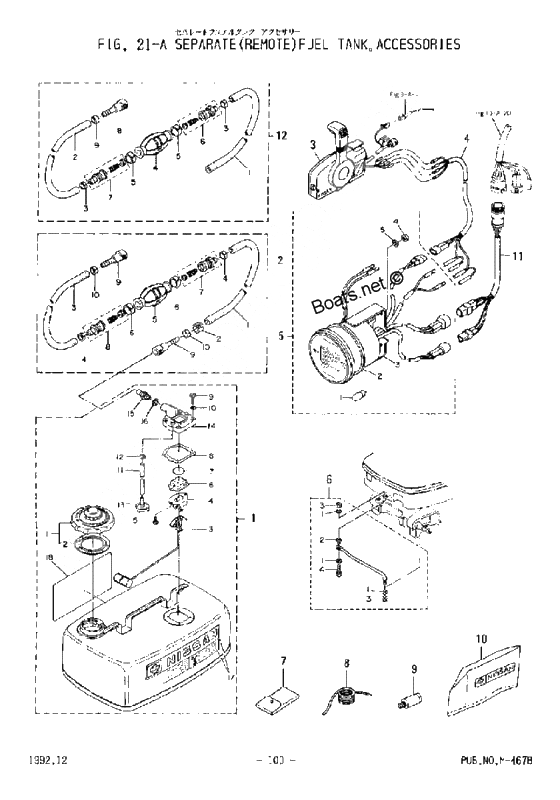

Fuel tank (remote) для Tohatsu M120A - 2002 года выпуска
-
№АртикулНазвание
-
003D9-84370-0 Rc box (rc5e) nissan 120/140 (silver/gray)
NS120A,140A-(STD)-EXP P (OPTION)Rc box (rc5e) nissan 120/140 (silver/gray)
NS120A,140A-(STD)-EXP P (OPTION) -
003B7-72201-0 Канат
NS120A,140A-(STD)-EXP P (OPTION)Канат
NS120A,140A-(STD)-EXP P (OPTION) -
003B7-84905-0 ドラックリンク D アッセンブリ
NS120A,140A-(STD)-EXP P (OPTION)ドラックリンク D アッセンブリ
NS120A,140A-(STD)-EXP P (OPTION) -
3B7-84905-1 ドラックリンク D アッセンブリドラックリンク D アッセンブリ
-
003D9-70142-0 Fuel tank ass'y (b) (24l)
NS120A,140A-EXP (OPTION)Fuel tank ass'y (b) (24l)
NS120A,140A-EXP (OPTION) -
003C7-72537-0 Lead wire b meter
NS120A,140A-(STD)-EXP P (OPTION)Lead wire b meter
NS120A,140A-(STD)-EXP P (OPTION) -
003B7-60007-0 Flushing Plug
NS120A,140A-(STD)-EXP P (OPTION)Flushing Plug
NS120A,140A-(STD)-EXP P (OPTION) -
003C7-72316-0 Vinyl motor cover (4l)
NS120A,140A-(STD)-EXP P (OPTION)Vinyl motor cover (4l)
NS120A,140A-(STD)-EXP P (OPTION) -
003C7-70200-0 Primer bulb ass'y
NS120A,140A-(STD)-EXP P (OPTION)Primer bulb ass'y
NS120A,140A-(STD)-EXP P (OPTION) -
003C7-72603-0 Meter cord ass'y
NS120A,140A-(STD)-EXP P (OPTION)Meter cord ass'y
NS120A,140A-(STD)-EXP P (OPTION) -
003C7-70231-0 Primer bulb ass'y b
NS120A,140A-EXP (STD)Primer bulb ass'y b
NS120A,140A-EXP (STD) -
003B7-72100-0 TOOL ASS'Y
NS120A,140A-(STD)-EXP P (OPTION)TOOL ASS'Y
NS120A,140A-(STD)-EXP P (OPTION) -
01353-84916-0 Washer
NS120A,140A-(STD)-EXP P (OPTION)Washer
NS120A,140A-(STD)-EXP P (OPTION) -
01334-70020-0 Fuel tank cap ass'y
NS120A,140A-EXP (OPTION)Fuel tank cap ass'y
NS120A,140A-EXP (OPTION) -
013B7-72658-0 Bulb, Meter 12V-1.7W
NS120A,140A-(STD)-EXP P (OPTION)Bulb, Meter 12V-1.7W
NS120A,140A-(STD)-EXP P (OPTION) -
013B2-70281-0 New part
NS120A,140A-(STD)-EXP P (OPTION)New part
NS120A,140A-(STD)-EXP P (OPTION) -
0198AB-7-2000 Fuel pipe a
NS120A,140A-EXP (STD)Fuel pipe a
NS120A,140A-EXP (STD) -
023B7-84914-0 Spacer Drag Link
NS120A,140A-(STD)-EXP P (OPTION)Spacer Drag Link
NS120A,140A-(STD)-EXP P (OPTION) -
02334-70021-0 Gasket fuel tank cap
NS120A,140A-EXP (OPTION)Gasket fuel tank cap
NS120A,140A-EXP (OPTION) -
023B7-72656-0 Damper, Meter
NS120A,140A-(STD)-EXP P (OPTION)Damper, Meter
NS120A,140A-(STD)-EXP P (OPTION) -
03353-84918-0 Nylon Nut 3/8
NS120A,140A-(STD)-EXP P (OPTION)Nylon Nut 3/8
NS120A,140A-(STD)-EXP P (OPTION) -
03334-70120-0 Датчик топлива
NS120A,140A-EXP (OPTION)Датчик топлива
NS120A,140A-EXP (OPTION) -
033C7-72660-0 Plate fitting
NS120A,140A-(STD)-EXP P (OPTION)Plate fitting
NS120A,140A-(STD)-EXP P (OPTION) -
0398AB-7-0500 Fuel pipe b
NS120A,140A-(STD)-EXP P (OPTION)Fuel pipe b
NS120A,140A-(STD)-EXP P (OPTION) -
04334-70121-0 Bracket fuel gauge
NS120A,140A-EXP (OPTION)Bracket fuel gauge
NS120A,140A-EXP (OPTION) -
043B7-84917-0 Bolt 3/8-55
NS120A,140A-(STD)-EXP P (OPTION)Bolt 3/8-55
NS120A,140A-(STD)-EXP P (OPTION) -
04930203-0500 Nut
NS120A,140A-(STD)-EXP P (OPTION)Nut
NS120A,140A-(STD)-EXP P (OPTION) -
04332-70201-0 Clamp
NS120A,140A-(STD)-EXP P (OPTION)Clamp
NS120A,140A-(STD)-EXP P (OPTION) -
053C7-70211-0 Primer Bulb
NS120A,140A-(STD)-EXP P (OPTION)Primer Bulb
NS120A,140A-(STD)-EXP P (OPTION) -
05941303-0500 Spring Washer
NS120A,140A-(STD)-EXP P (OPTION)Spring Washer
NS120A,140A-(STD)-EXP P (OPTION) -
063C7-70217-0 Clamp
NS120A,140A-(STD)-EXP P (OPTION)Clamp
NS120A,140A-(STD)-EXP P (OPTION) -
073C7-70220-0 Joint a ass'y, in
NS120A,140A-(STD)-EXP P (OPTION)Joint a ass'y, in
NS120A,140A-(STD)-EXP P (OPTION) -
07334-70123-1 O-Ring
NS120A,140A-EXP (OPTION)O-Ring
NS120A,140A-EXP (OPTION) -
083C7-70224-0 Joint a ass'y, out
NS120A,140A-(STD)-EXP P (OPTION)Joint a ass'y, out
NS120A,140A-(STD)-EXP P (OPTION) -
09922-23052-0 Screw
NS120A,140A-EXP (OPTION)Screw
NS120A,140A-EXP (OPTION) -
093C7-70250-0 Соединитель топливный
NS120A,140A-(STD)-EXP P (OPTION)Соединитель топливный
NS120A,140A-(STD)-EXP P (OPTION) -
10334-70128-0 Gasket 5.1-12-0.8
NS120A,140A-EXP (OPTION)Gasket 5.1-12-0.8
NS120A,140A-EXP (OPTION) -
103C7-70201-0 Clamp
NS120A,140A-(STD)-EXP P (OPTION)Clamp
NS120A,140A-(STD)-EXP P (OPTION) -
1198AB-7-0168 Fuel suction pipe
NS120A,140A-EXP (OPTION)Fuel suction pipe
NS120A,140A-EXP (OPTION) -
12345-70114-0 Clip
NS120A,140A-EXP (OPTION)Clip
NS120A,140A-EXP (OPTION) -
143C7-70127-0 Fuel gauge housing
NS120A,140A-EXP (OPTION)Fuel gauge housing
NS120A,140A-EXP (OPTION) -
153C7-70270-0 Соединитель топливный
NS120A,140A-EXP (OPTION)Соединитель топливный
NS120A,140A-EXP (OPTION) -
16152-01612-0 Packing
NS120A,140A-EXP (OPTION)Packing
NS120A,140A-EXP (OPTION) -
17360-70443-0 Caution label, b2
NS120A,140A-EXP (OPTION)Caution label, b2
NS120A,140A-EXP (OPTION) -
18360-70341-0 Caution label, a
NS120A,140A-EXP (OPTION)Caution label, a
NS120A,140A-EXP (OPTION)
