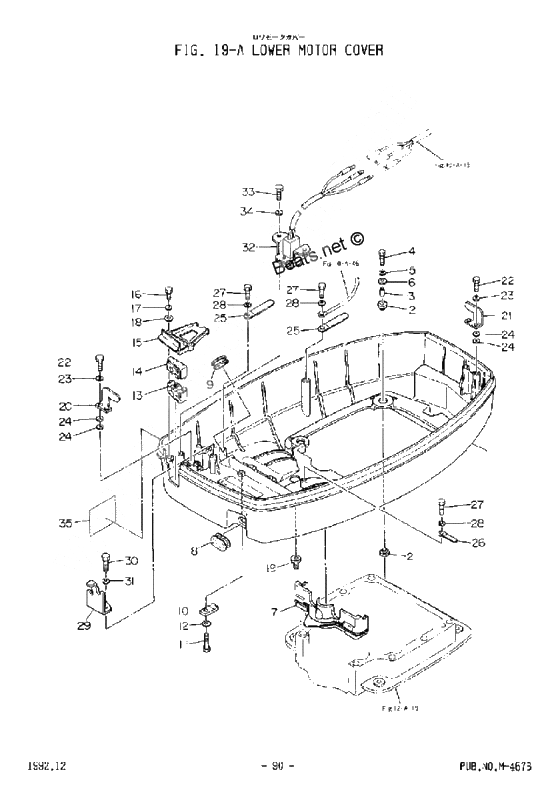

Lower motor cover для Tohatsu M120A - 2002 года выпуска
-
№АртикулНазвание
-
003C7-83732-0 Grommet Remote Control Cable
NS120A,140AGrommet Remote Control Cable
NS120A,140A -
003C7-67160-0 Grommet oil pipe
NS120A,140AGrommet oil pipe
NS120A,140A -
00309-06972-0 Clamp,6.5-47.5P
NS120A,140AClamp,6.5-47.5P
NS120A,140A -
003C7S67100-0 Lower motor cover
NS120A,140ALower motor cover
NS120A,140A -
003C7S76118-0 Clamp
NS120A,140AClamp
NS120A,140A -
003C7-77156-0 Grommet
NS120A,140AGrommet
NS120A,140A -
003B7-83720-0 Cable Clip
NS120A,140ACable Clip
NS120A,140A -
00345-67113-0 Mount Rubber
NS120A,140AMount Rubber
NS120A,140A -
00910114-0625 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-72577-0 Clamp
NS120A,140AClamp
NS120A,140A -
00910121-0612 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-67114-0 Spacer 8.4-12-17
NS120A,140ASpacer 8.4-12-17
NS120A,140A -
00941303-0600 New part
NS120A,140ANew part
NS120A,140A -
00910103-0616 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-72057-0 Label power trim & tilt switch
NS120A,140ALabel power trim & tilt switch
NS120A,140A -
00941303-0800 Spring Washer
NS120A,140ASpring Washer
NS120A,140A -
00345-66226-0 Grommet, 17-3
NS120A,140AGrommet, 17-3
NS120A,140A -
00940-13060-0 Washer
NS120A,140AWasher
NS120A,140A -
003B7-63730-0 Washer
NS120A,140AWasher
NS120A,140A -
00353-67513-0 Cover stay(rear)
NS120A,140ACover stay(rear)
NS120A,140A -
003C7-76116-0 Grommet Cord
NS120A,140AGrommet Cord
NS120A,140A -
003C7-67164-0 Grommet A Lower Cover
NS120A,140AGrommet A Lower Cover
NS120A,140A -
00353-06972-0 Clamp
NS120A,140AClamp
NS120A,140A
