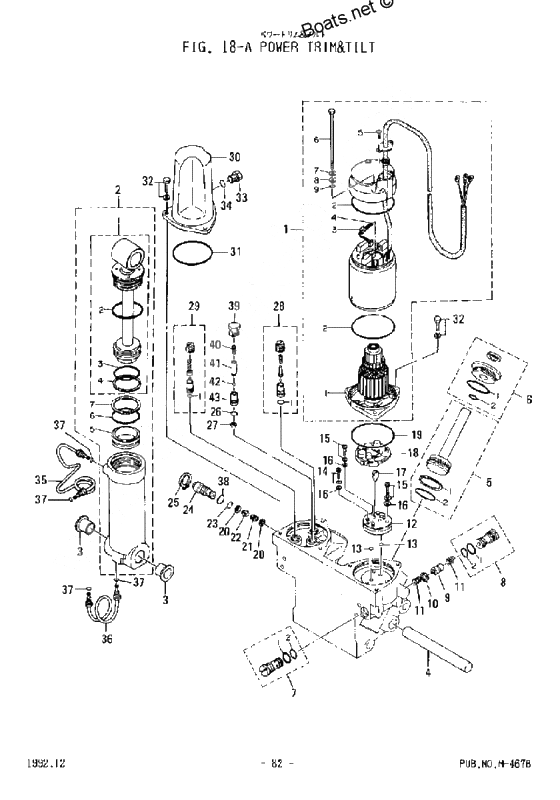

Power trim & tilt для Tohatsu M120A - 2002 года выпуска
-
№АртикулНазвание
-
003B7-77390-0 Piston sub-ass'y trim
NS120A,140APiston sub-ass'y trim
NS120A,140A -
003B7-77440-1 Relief valve (up)
NS120A,140ARelief valve (up)
NS120A,140A -
003B7-77434-1 Filter B
NS120A,140AFilter B
NS120A,140A -
00910-13662-0 Bolt
NS120A,140ABolt
NS120A,140A -
003B7-77430-0 Pump
NS120A,140APump
NS120A,140A -
003B7-77441-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
003B7-77167-0 O????
NS120A,140AO????
NS120A,140A -
003B7-77168-0 Cap
NS120A,140ACap
NS120A,140A -
003B7-77433-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
003B7-77450-0 Relief valve (dn)
NS120A,140ARelief valve (dn)
NS120A,140A -
003B7-77172-0 Spring Washer
NS120A,140ASpring Washer
NS120A,140A -
003B7-77330-0 Oil tube
NS120A,140AOil tube
NS120A,140A -
003B7-77431-1 Bolt
NS120A,140ABolt
NS120A,140A -
003B7-77174-0 Collar inner
NS120A,140ACollar inner
NS120A,140A -
003B7-77335-0 Oil tube b
NS120A,140AOil tube b
NS120A,140A -
003B7-77432-1 Bolt
NS120A,140ABolt
NS120A,140A -
003B7-77460-0 Pilot relief valve (dn)
NS120A,140APilot relief valve (dn)
NS120A,140A -
003B7-77179-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
003B7-77386-0 New part
NS120A,140ANew part
NS120A,140A -
003B7-77177-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
003B7-77435-0 Washer
NS120A,140AWasher
NS120A,140A -
003B7-77420-0 Valve seat ass'y b
NS120A,140AValve seat ass'y b
NS120A,140A -
003B7-77176-0 Manual Valve
NS120A,140AManual Valve
NS120A,140A -
003B7-77387-0 New part
NS120A,140ANew part
NS120A,140A -
00353-77166-0 Coupling Pump
NS120A,140ACoupling Pump
NS120A,140A -
003B7S77165-1 Reservoir Tank
NS120A,140AReservoir Tank
NS120A,140A -
003B7-77403-0 Back-up Ring
NS120A,140ABack-up Ring
NS120A,140A -
00945003-2000 C-Ring
NS120A,140AC-Ring
NS120A,140A -
013B7-77393-0 Back-up Ring
NS120A,140ABack-up Ring
NS120A,140A -
013B7-77169-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
013B7-77412-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
013B7-77452-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
023B7-77383-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
02353-77182-1 O-Ring
NS120A,140AO-Ring
NS120A,140A -
023B7-77392-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
023B7-77411-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
033B7-77375-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
04353-77184-1 Spring brush
NS120A,140ASpring brush
NS120A,140A -
043B7-77376-0 Back-up Ring
NS120A,140ABack-up Ring
NS120A,140A -
053B7-77189-0 Stud Bolt
NS120A,140AStud Bolt
NS120A,140A -
053B7-77377-0 Free Piston
NS120A,140AFree Piston
NS120A,140A -
063B7-77181-0 Through bolt
NS120A,140AThrough bolt
NS120A,140A -
08353-77187-0 Шайба пластиковая
NS120A,140AШайба пластиковая
NS120A,140A -
09353-77188-0 O-ring through bolt
NS120A,140AO-ring through bolt
NS120A,140A
