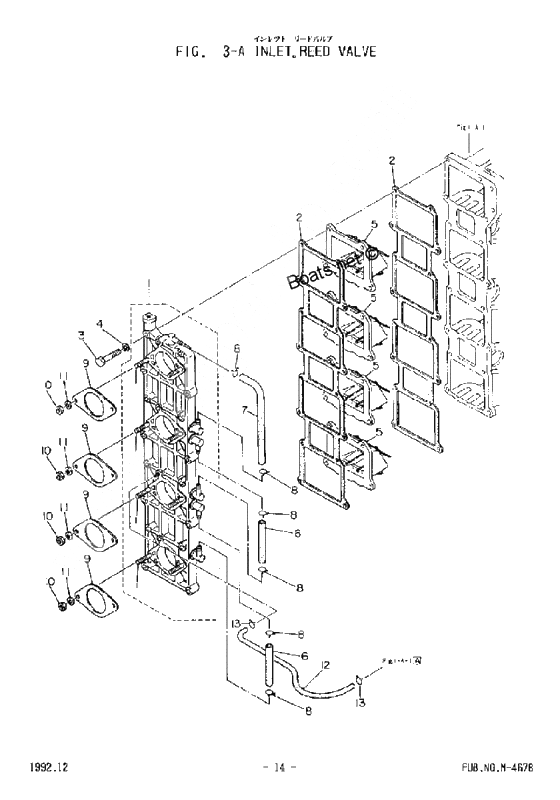

Inlet, reed valve для Tohatsu M120A - 2002 года выпуска
-
№АртикулНазвание
-
00338-01133-0 Clip
NS120A,140AClip
NS120A,140A -
009812-7-0180 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
NS120A,140AFuel pipe 7mm/5/16in (1 ea.=1 meter)
NS120A,140A -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
003C7-02010-0 Inlet manifold ass'y
NS120A,140AInlet manifold ass'y
NS120A,140A -
003C7-02215-0 Clip
NS120A,140AClip
NS120A,140A -
003C7-02011-0 Gasket, carburetor
NS120A,140AGasket, carburetor
NS120A,140A -
003C7-02104-0 Gasket, inlet manifold
NS120A,140AGasket, inlet manifold
NS120A,140A -
00930103-0600 Nut
NS120A,140ANut
NS120A,140A -
00941-3U060-0 Spring Washer
NS120A,140ASpring Washer
NS120A,140A -
00941303-0600 New part
NS120A,140ANew part
NS120A,140A -
003A3-02100-0 Reed Valve Ass'y
NS120A,140AReed Valve Ass'y
NS120A,140A -
009807-3-0470 Fuel pipe 3mm (1 ea.=1 meter)
NS120A,140AFuel pipe 3mm (1 ea.=1 meter)
NS120A,140A -
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
009812-7-0080 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
NS120A,140AFuel pipe 7mm/5/16in (1 ea.=1 meter)
NS120A,140A -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
01915-3D061-8 Stud Bolt
NS120A,140AStud Bolt
NS120A,140A
