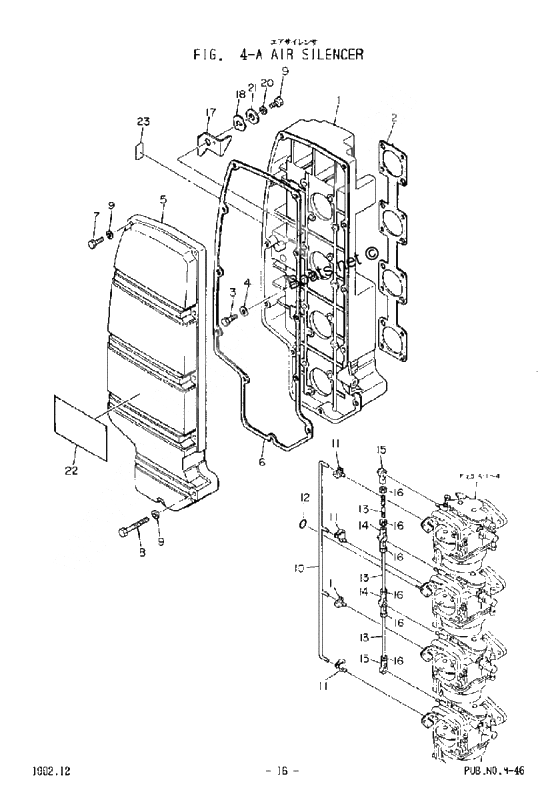

Air silencer для Tohatsu M140A - 2002 года выпуска
-
№АртикулНазвание
-
00353-63709-0 Throttle Rod
NS120A,140AThrottle Rod
NS120A,140A -
00910103-0620 Bolt
NS120A,140ABolt
NS120A,140A -
00346-67115-0 Washer
NS120A,140AWasher
NS120A,140A -
003C7-02410-1 Air Silencer
NS120A,140AAir Silencer
NS120A,140A -
003B7-05229-0 Cap b, ball joint
NS120A,140ACap b, ball joint
NS120A,140A -
00910-13063-5 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-02419-0 Seal, cover
NS120ASeal, cover
NS120A -
003C7-02414-0 Gasket, air silencer
NS120A,140AGasket, air silencer
NS120A,140A -
003B7-05243-0 New part
NS120A,140ANew part
NS120A,140A -
00940-13060-0 Washer
NS120A,140AWasher
NS120A,140A -
003C7-02420-0 Bolt, 6-18 precoated
NS120A,140ABolt, 6-18 precoated
NS120A,140A -
003B7-67152-0 Рукоятка
NS120A,140AРукоятка
NS120A,140A -
003C7-67191-1 Rod choke valve
NS120A,140ARod choke valve
NS120A,140A -
003B7-72015-0 Label, choke
NS120A,140ALabel, choke
NS120A,140A -
00940-1D060-0 Washer
NS120A,140AWasher
NS120A,140A -
00941403-1000 Washer
NS120A,140AWasher
NS120A,140A -
00345-05223-1 Rod Snap,3.5-2
NS120A,140ARod Snap,3.5-2
NS120A,140A -
003C7-02415-1 Cover, air silencer
NS120A,140ACover, air silencer
NS120A,140A -
00910-43061-0 Bolt
NS120A,140ABolt
NS120A,140A -
003C7-03271-0 O-Ring
NS120A,140AO-Ring
NS120A,140A -
003C7-02418-1 Gasket, air silencer cover
NS120A,140AGasket, air silencer cover
NS120A,140A -
00941303-0600 New part
NS120A,140ANew part
NS120A,140A
